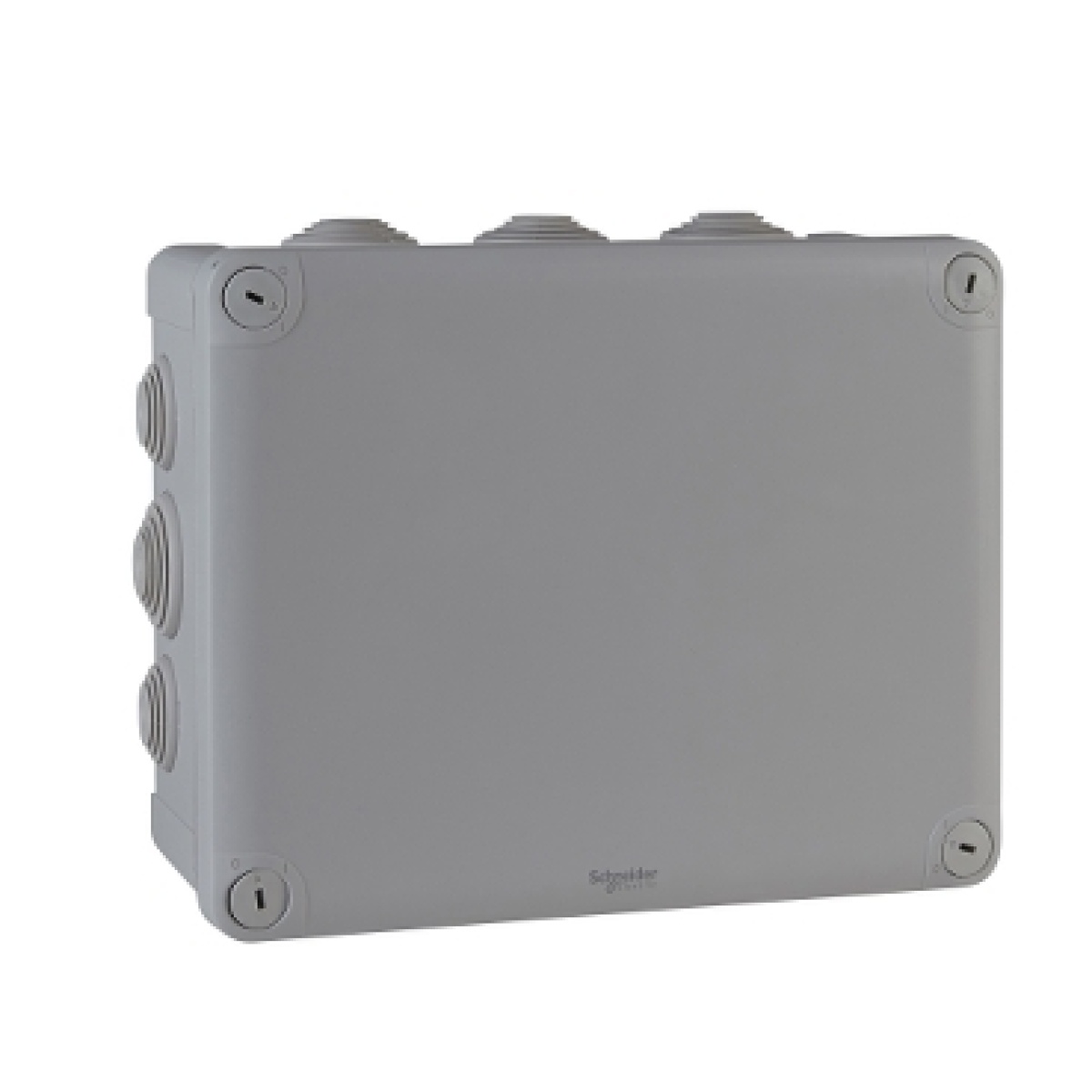

Mureva BOX - junction box - 4 grommets Ø25 8xØ32 - 225x175x100 mm
Boxes
Mureva BOX - junction box - 4 grommets Ø25 8xØ32 - 225x175x100 mm
Nortécnica Ref:
EAN:
3295150050136
Description
Technical Information
Attributes
Mounting method
Wall-/ceiling mounting
Colour
Grey
Largura
204
Model
Junction box
Halogen free
Yes
Profundidade
108
Shape
Rectangular
Surface protection
Untreated
Diameter
-
Equipped with
None
With strain relief
-
Rated insulation voltage Ui
-
Number of poles
-
Length
251
Sealable
No
Circuit integrity
None
Working temperature
-25
40
Material
Plastic
Number of clamp positions per pole
-
Number of inlets
12
RAL-number similar
7035
Explosion-tested version
No
Cover attachment
Screwed
Max. conductor cross section
32
With screening
No
Weatherproof
Yes
Degree of protection IP
IP55
Suitable for tube diameter
32 mm
Inlet from the rear
No
Suitable for Ex-zone gas
None
Connectable
No
Type of housing feed-through
Seal membrane
Suitable for Ex-zone dust
None
Cover model
Blind cover
Castable
No
Casting compound included
No
Transparent cover
No
Degree of protection NEMA
Other
Mounting in the soil
No
Mounting under water
No
Outgoing connections with connectors for plug-in building installation
-
Number of cable glands included
-
Brands
Schneider Electric Portugal
