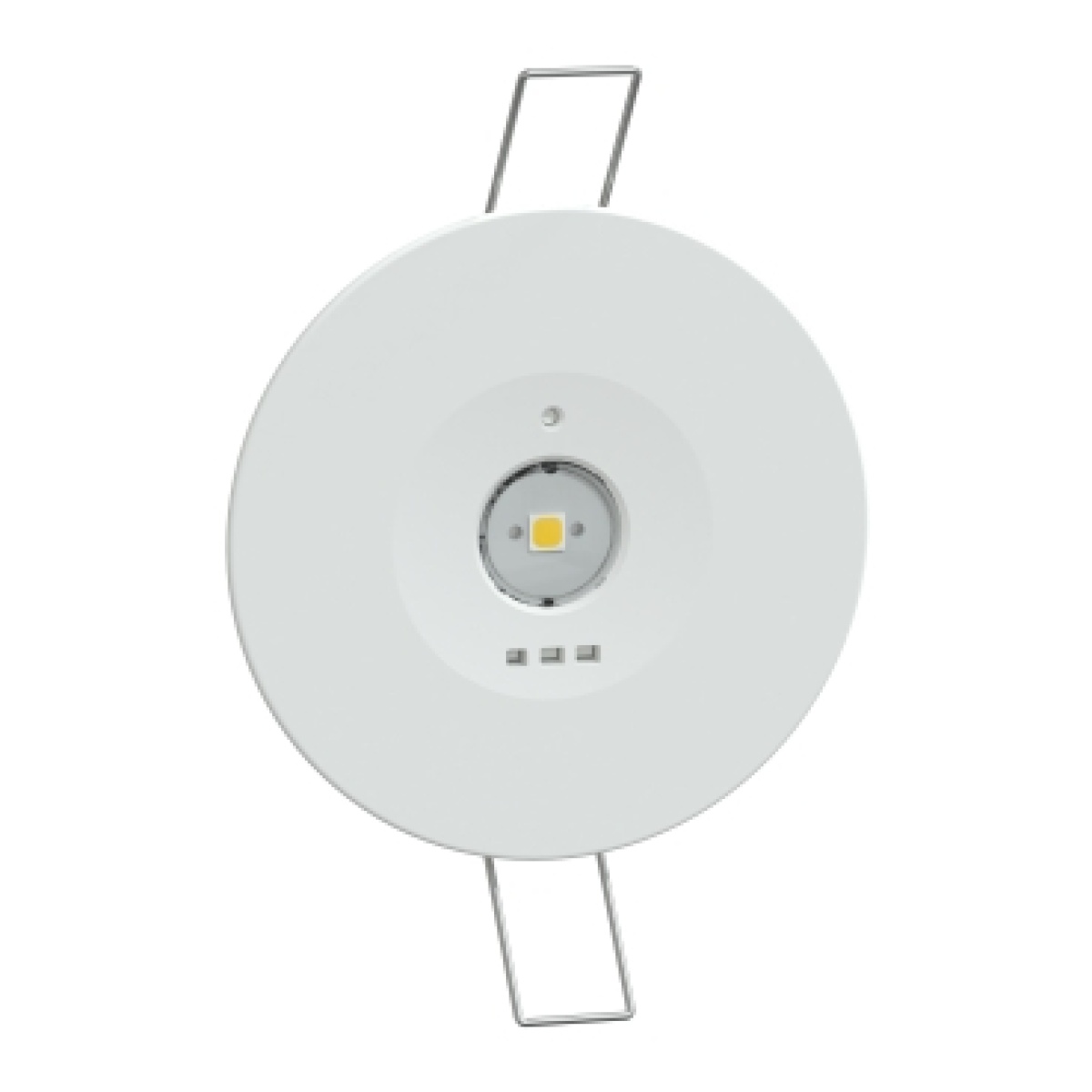

Exiway Smartbeam - Control - Área Antipanico IP42
Emergency
Exiway Smartbeam - Control - Área Antipanico IP42
Nortécnica Ref:
EAN:
3606489729967
Description
Technical Information
Attributes
Mounting method
Surface mounting/recessed mounting
Protection class according to IEC 61140
II
Largura
-
Diâmetro externo
90
Function
Escape route lighting
Lamp holder
None
Secção transversal do condutor
2.5
Connection type
Plug-in connection
Housing colour
White
Voltage type
AC/DC
EF000233
EV010184
Type of control gear
LED operating device current-controlled
With remote control
Yes
Largura para embutir
-
Diâmetro para embutir
-
Suitable for labelling type
Other
Type of indicator
Single/double-sided
Número de polos
2
Comprimento
-
Alturaprofundidade
32
Housing material
Plastic
Lamp type
LED not exchangeable
Número de fontes de luz
-
Comprimento para embutir
-
Material cover
Plastic, opal
Impact strength
IK04
Battery technology
Lead
Nominal voltage
230
230
Degree of protection IP
IP42
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Adequado para número de lâmpadas
1
With remote switch connection
Yes
EF008091
EV010144
Connectable conductor cross section
-
-
Fluxo luminoso em funcionamento de emergência
200
Distância de reconhecimento
-
Nominal current
-
-
Colour temperature
4500
4500
Potência máx. do sistema
-
EF009349
200
Constant light output CLO
Yes
With pictogram
No
Type of wiring
Suitable for loop-through wiring
Vida útil nominal L70B50 a 25 C
100000
Fluxo luminoso no modo de espera
-
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-5
30
Light distributor
Diffuser lens/optic/panel
RAL da carcaça
-
Nominal operation time
-
-
Número max. de luminárias por disjuntor C16
-
Número max. de luminárias por disjuntor B16
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
Yes
Suitable for continuous circuit
No
Rated luminous flux according to IEC 62722-2- 1
200
200
Emergency power supply system
Central (central battery)
Consumo de energia em modo de emergência
3
Emergency function monitoring system
Other
With heating element for battery
-
Type of lithium-ion battery
-
Alturaprofundidade para embutir
-
Fator de potência
-
Brands
SCHNEIDER
