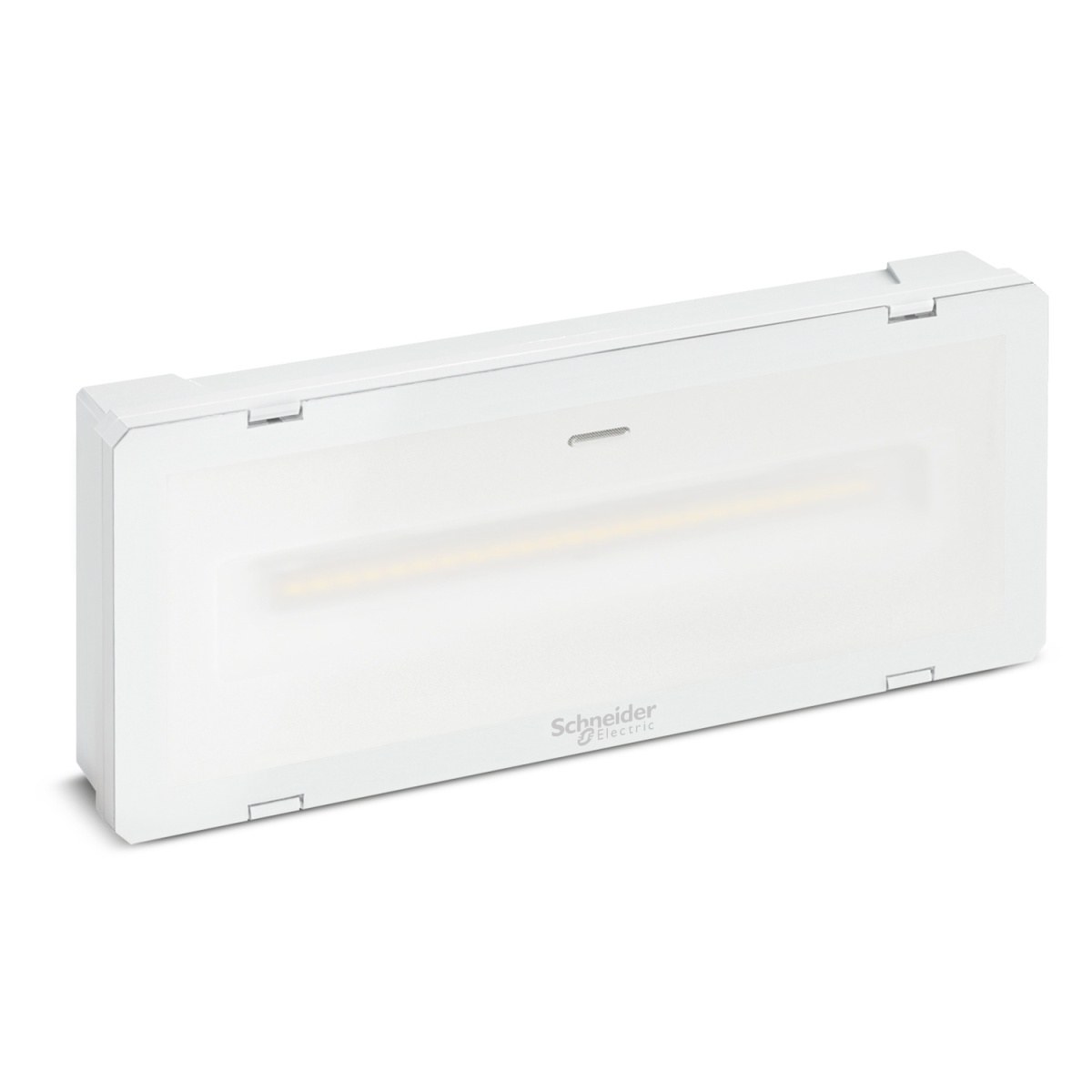

Exiway Smartled - emergency light - CBS - LED - 300 lm - 216VDC 230 IP55
Emergency
Exiway Smartled - emergency light - CBS - LED - 300 lm - 216VDC 230 IP55
Nortécnica Ref:
EAN:
3606481302755
Description
Technical Information
Attributes
Mounting method
Ceiling surface mounting
Protection class according to IEC 61140
II
Largura
300
Diâmetro externo
-
Function
Escape route lighting
Lamp holder
None
Secção transversal do condutor
2.5
Connection type
Plug-in connection
Housing colour
White
Voltage type
AC/DC
EF000233
EV010184
Type of control gear
LED operating device current-controlled
With remote control
Yes
Largura para embutir
-
Diâmetro para embutir
-
Suitable for labelling type
-
Type of indicator
-
Número de polos
2
Comprimento
127
Alturaprofundidade
45.5
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
-
Comprimento para embutir
-
Material cover
Plastic, transparent
Impact strength
IK07
Battery technology
Lithium-ion
Nominal voltage
230
230
Degree of protection IP
IP65
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Adequado para número de lâmpadas
1
With remote switch connection
Yes
EF008091
EV010144
Connectable conductor cross section
-
-
Fluxo luminoso em funcionamento de emergência
300
Recognition distance
-
Nominal current
-
-
Colour temperature
4500
4500
Potência máx. do sistema
-
EF009349
300
Constant light output CLO
Yes
With pictogram
No
Type of wiring
Suitable for loop-through wiring
Vida útil nominal L70B50 a 25 C
100000
Luminous flux in standby mode
-
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
-5
30
Light distributor
Diffuser lens/optic/panel
RAL-number housing
-
Nominal operation time
-
-
Número max. de luminárias por disjuntor C16
-
Número max. de luminárias por disjuntor B16
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
Yes
Suitable for continuous circuit
Yes
Rated luminous flux according to IEC 62722-2- 1
300
300
Emergency power supply system
Central (central battery)
Consumo de energia em modo de emergência
4.5
Emergency function monitoring system
Other
With heating element for battery
-
Type of lithium-ion battery
Lithium iron phosphate (LiFePO4)
EF023518
-
Fator de potência
-
Brands
Schneider Electric Portugal
