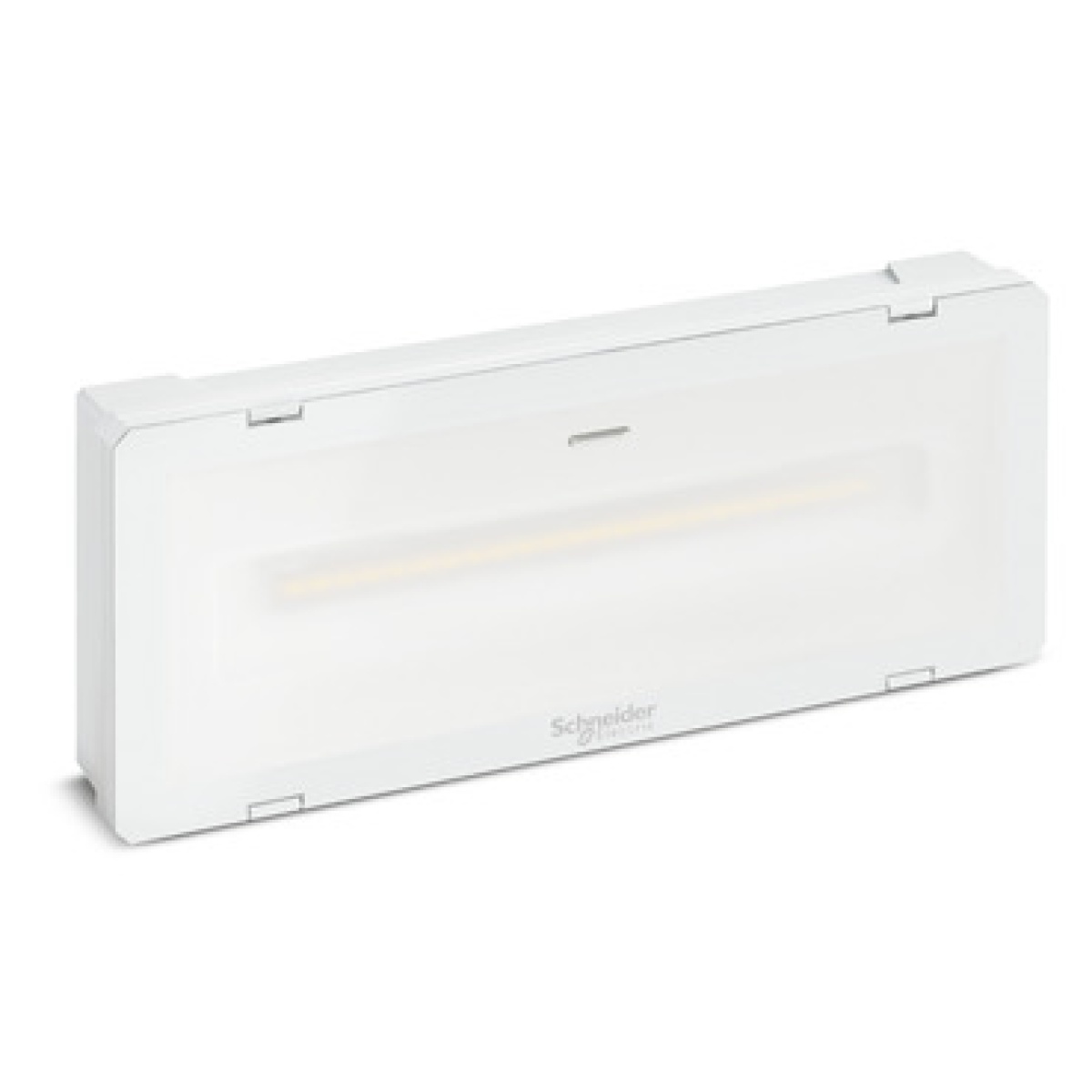

É uma luminária de iluminação de emergência Exiway Smartled Ativa/Dicube da Schneider Electric. Tem uma duração configurável (1h, 1,5h, 2h, 3h) com um fluxo máximo de 1400 lm em modo mantido e não mantido. É fornecido com uma bateria LiFePO4 de 3,2 V e 1,5 Ah com uma vida útil prevista de 10 anos. O produto é fabricado com 100% de energia verde e mais de 45% de material plástico reciclado. Este dispositivo tem também funcionalidades de sinalização de saída com acessórios opcionais e distância de visibilidade até 24 m. O produto é adequado para instalações em parede, teto e encastradas. A sua tensão operacional nominal Ue é de 230 VCA a 50-60 Hz. O consumo de energia em modo não mantido da luminária é de 0,4 W. As dimensões do produto são (L) 300 mm x (A) 127 mm x (P) 45,5 mm e o peso do produto é 740 g. É fabricado em policarbonato (PC). A cor da fonte de luz é branca. A temperatura do ar ambiente para funcionamento é de 0°C a +40°C. Atinge o grau de proteção IP65 com resistência ao impacto IK07. A Exiway Smartled é uma gama versátil com um elevado fluxo luminoso. Foi concebida para todos os tipos de edifícios, reduz o consumo de energia e é amiga do ambiente. O produto está em conformidade com as normas EN 60598-1, EN 60598-2-22, EN 62471, EN 62034 e possui certificação CE.
Emergency
Exiway Smartled ActDicube IP65 1400lm Múltiplas Autonomias
Nortécnica Ref:
EAN:
3606487197904
Description
Technical Information
Attributes
Mounting method
Surface mounting/recessed mounting
Protection class according to IEC 61140
II
Width
300
Outer diameter
-
Function
Escape route lighting
Lamp holder
None
Conductor cross section
2.5
Connection type
Plug-in connection
Housing colour
White
Voltage type
AC
Type of control gear
LED operating device current-controlled
With remote control
Yes
Built-in width
-
Built-in diameter
-
Suitable for labelling type
Other
Type of indicator
Single/double-sided
Number of poles
2
Length
127
Heightdepth
45.5
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
-
Built-in length
-
Cover material
Plastic, transparent
Impact strength
IK07
Battery technology
Lithium-ion
Nominal voltage
230
230
Degree of protection IP
IP65
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Suitable for number of light sources
1
With remote switch connection
Yes
Connectable conductor cross section
-
-
Luminous flux in emergency mode
1400
Recognition distance
-
Nominal current
-
-
Colour temperature
5000
5000
Max. system power
-
Constant light output CLO
Yes
With pictogram
No
Type of wiring
Suitable for loop-through wiring
Rated lifetime L70B50 at 25 C
100000
Luminous flux in standby mode
-
Degree of protection NEMA
-
EF012090
0
40
Light distributor
Diffuser lens/optic/panel
RAL-number housing
-
Nominal operation time
1
1
Max. number of luminaires per miniature circuit breaker C16 MCB
-
Max. number of luminaires per miniature circuit breaker B16 MCB
-
Lumen maintenance at median useful life of 50,000 h at 25 C ambient tq
-
Lumen maintenance at median useful life of 100,000 h at 25 C ambient tq
-
Failure rate at median useful life of 50,000 h at 25 C ambient tq
-
Failure rate at median useful life of 100,000 h at 25 C ambient tq
-
Flickering value Pst LM
-
Stroboscope effect value SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
Yes
Suitable for continuous circuit
Yes
Rated luminous flux according to IEC 62722-2- 1
1400
1400
Emergency power supply system
Peripheral (individual battery)
Power consumption in emergency mode
4.9
Emergency function monitoring system
Other
With heating element for battery
-
Type of lithium-ion battery
Lithium iron phosphate (LiFePO4)
Built-in heightdepth
-
Power factor
-
