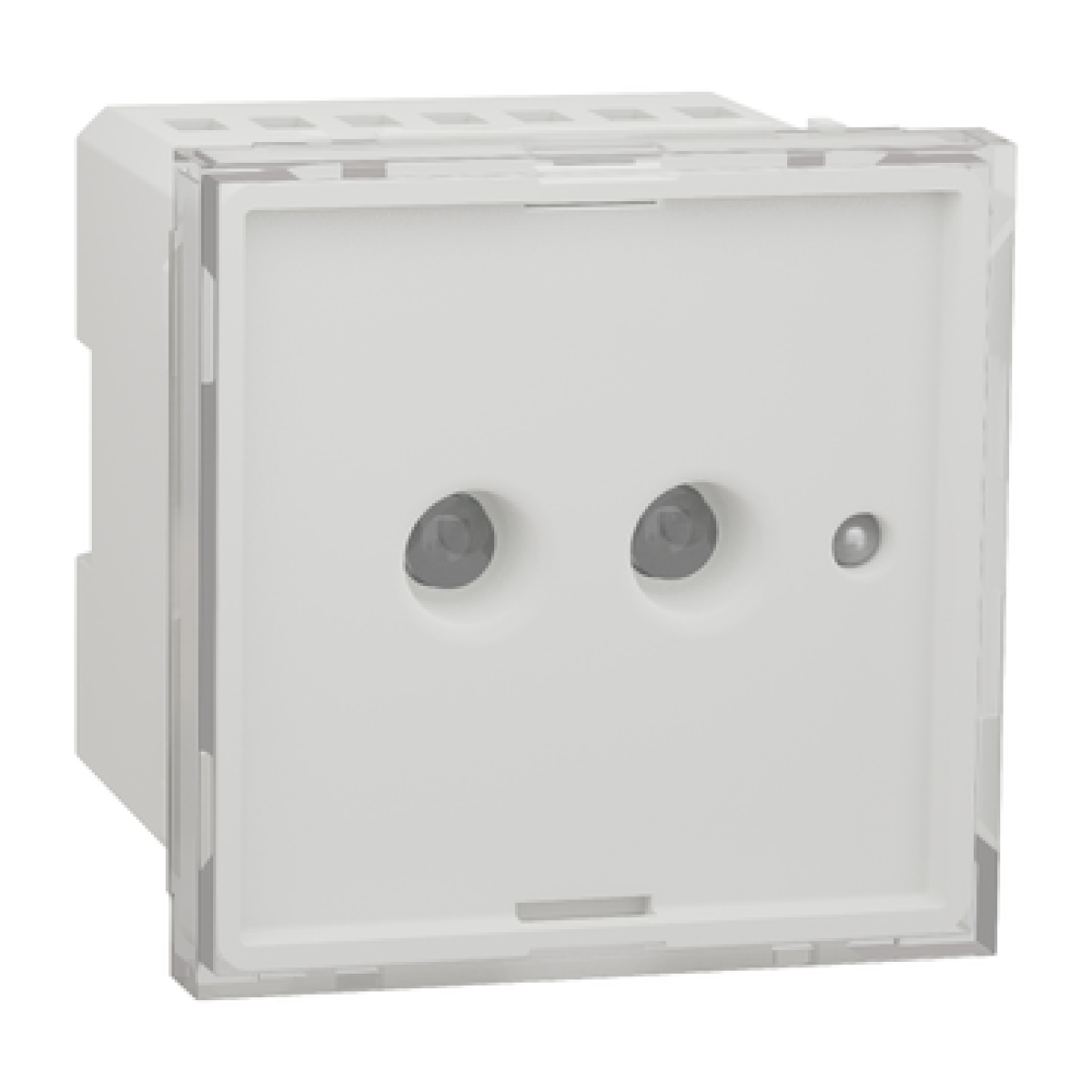

Nova Unica - Módulo luz verde de emergência - 230V
Emergency
Nova Unica - Módulo luz verde de emergência - 230V
Nortécnica Ref:
EAN:
3606489456290
Description
Technical Information
Attributes
Mounting method
Wall surface mounted
Protection class according to IEC 61140
-
Largura
45
Diâmetro externo
-
Function
Escape route lighting/signage
Lamp holder
None
Secção transversal do condutor
2.5
Connection type
Screw connection
Housing colour
White
Voltage type
AC
EF000233
EV009693
Type of control gear
Not required
With remote control
No
Largura para embutir
45
Diâmetro para embutir
-
Suitable for labelling type
-
Type of indicator
Single-sided
Número de polos
2
Comprimento
45
Alturaprofundidade
45
Housing material
Plastic
Lamp type
LED not exchangeable
Number of lighting heads
1
Comprimento para embutir
45
Material cover
Plastic, structured
Impact strength
IK03
Battery technology
NiCd
Nominal voltage
230
230
Degree of protection IP
IP2X
With light source
Yes
Luminaire with limited surface temperature, sign "D according to EN 60598-2-24
No
Adequado para número de lâmpadas
1
With remote switch connection
No
EF008091
EV000494
Connectable conductor cross section
-
-
Fluxo luminoso em funcionamento de emergência
45
Recognition distance
0.025
Nominal current
-
-
Colour temperature
-
-
Potência máx. do sistema
-
EF009349
-
Constant light output CLO
No
With pictogram
No
Type of wiring
Ending
Vida útil nominal L70B50 a 25 C
-
Luminous flux in standby mode
-
Degree of protection NEMA
-
Rated ambient temperature according to IEC 62722-2-1
5
45
Light distributor
Focal lens
RAL-number housing
-
Nominal operation time
400
400
Número max. de luminárias por disjuntor C16
-
Número max. de luminárias por disjuntor B16
-
Depreciação do fluxo luminoso; vida útil média de 50 000 h; temp 25 C tq
-
Depreciação do fluxo luminoso; vida útil média de 100 000 h; temp 25 C tq
-
Taxa de falha, vida operacional média 50 000 h, temperatura 25 C tq
-
Taxa de falha, vida operacional média 100 000 h, temperatura 25 C tq
-
Valor estroboscópico Pst LM
-
Valor de efeito estroboscópico SVM
-
Exchangeable control gear
No
Energy efficiency class of the light source according to EU regulation 20192015
-
Suitable for standby switching
No
Suitable for continuous circuit
No
Rated luminous flux according to IEC 62722-2- 1
45
45
Emergency power supply system
Peripheral (individual battery)
Consumo de energia em modo de emergência
-
Emergency function monitoring system
None
With heating element for battery
-
Type of lithium-ion battery
Other
EF023518
32
Fator de potência
-
