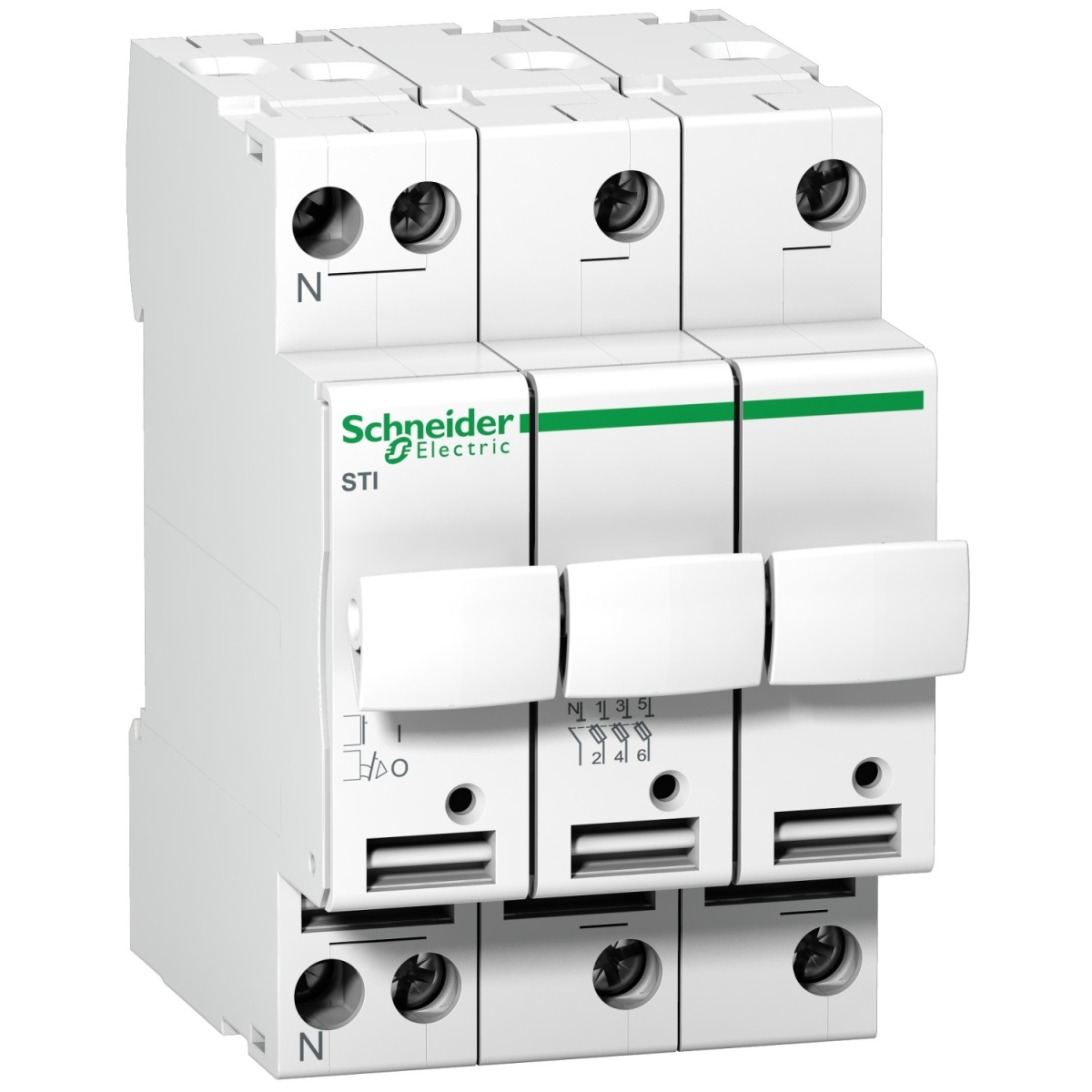

    Acti 9 - fuse-disconnector STI - 3 poles N - 10 A - for fuse 8.5 x 31.5 mm
    SCHNEIDER
    Acti 9 - fuse-disconnector STI - 3 poles N - 10 A - for fuse 8.5 x 31.5 mm
    Acti 9 - fuse-disconnector STI - 3 poles N - 10 A - for fuse 8.5 x 31.5 mm
    12

    Cutting and Protection Devices

    Acti 9 - fuse-disconnector STI - 3 poles N - 10 A - for fuse 8.5 x 31.5 mm

    Nortécnica Ref: 51A9N15657
    EAN: 3606480619588
    Login to see prices and stocks

    Description

    Acti 9 - fuse-disconnector STI - 3 poles N - 10 A - for fuse 8.5 x 31.5 mm

    Technical Information

    Attributes
    Nominal voltage
    400
    Mounting method
    DIN rail
    Lockable
    Yes
    Built-in depth
    44
    Número de polos
    3
    Width in number of modular spacings
    3
    Degree of protection IP
    IP20
    Concurrently switching neutral conductor
    No
    With optical defect indication
    Yes
    For fuse size
    8.5x31.5 mm
    Brands
    SCHNEIDER

    Technical Sheet
