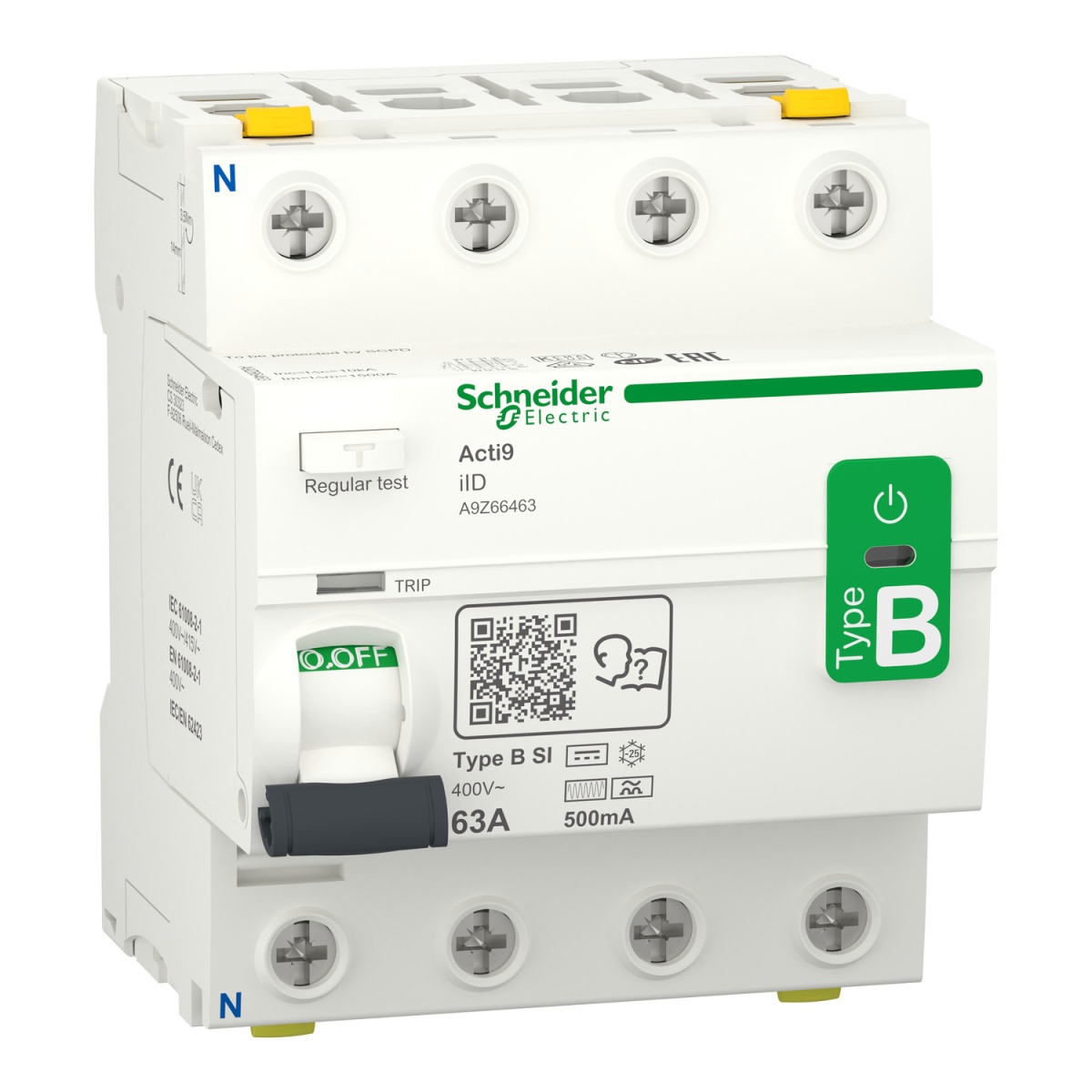

Acti9 iID - Interruptor diferencial - 4P - 63A - 500mA - Classe B-SI
Cutting and Protection Devices
Acti9 iID - Interruptor diferencial - 4P - 63A - 500mA - Classe B-SI
Nortécnica Ref:
51A9Z66463
EAN:
3606489502911
Description
Technical Information
Attributes
Mounting method
DIN rail
Colour
White
Voltage type
AC
Built-in depth
44
Rated current
63
Rated voltage
400
Tensão nominal de isolamento Ui
500
Número de polos
4
Rated fault current
0.5
Leakage current type
B
Selective protection
No
Short-circuit breaking capacity Icw
-
Surge current capacity
3
Pollution degree
3
Largura em número de módulos
4
Short-time delayed tripping
No
Número RAL semelhante
9003
Explosion-proof
No
Potência dissipada
4.23
Frequency
50 Hz
Degree of protection IP
IP20
Connectable conductor cross section solid-core
1
35
Connectable conductor cross section multi-wired
1
25
With interlocking device
No
Ambient temperature during operating
-25
60
Additional equipment possible
Yes
Device width
72
Device height
88
Device depth
79
Rated impulse withstand voltage Uimp
6
Type of personal protection PRCD
-
Brands
Schneider Electric Portugal
