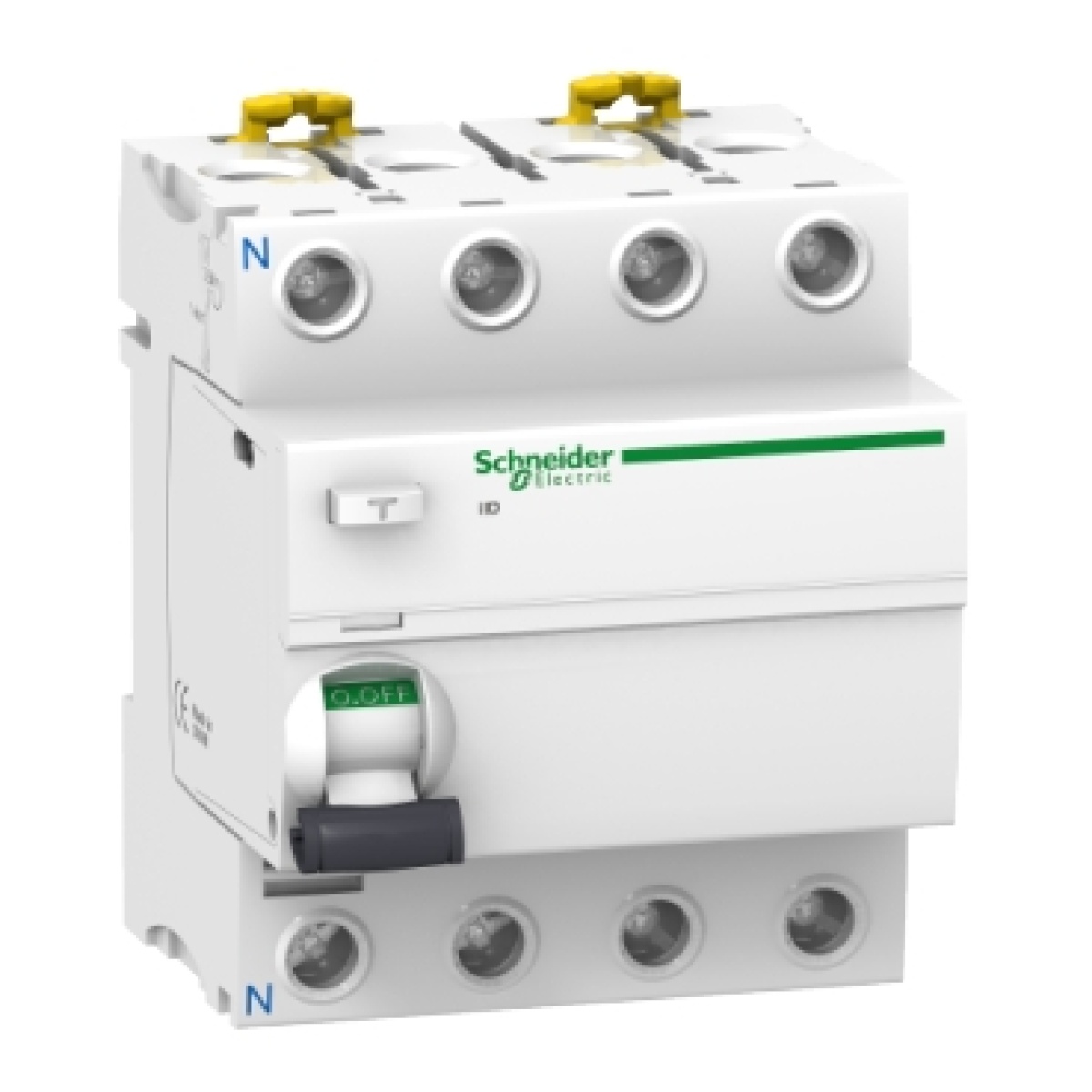

Acti9 iID - Interruptor diferencial - 4P - 80A - 300mA - Classe A
Cutting and Protection Devices
Acti9 iID - Interruptor diferencial - 4P - 80A - 300mA - Classe A
Nortécnica Ref:
51A9R24480
EAN:
3606480090738
Description
Technical Information
Attributes
Mounting method
DIN rail
Colour
White
Voltage type
AC
Built-in depth
44
Rated current
80
Rated voltage
400
Rated insulation voltage Ui
500
Number of poles
4
Rated fault current
0.3
Leakage current type
A
Selective protection
No
Short-circuit breaking capacity Icw
-
Surge current capacity
0.25
Pollution degree
3
Width in number of modular spacings
4
Short-time delayed tripping
No
RAL-number similar
9003
Explosion-proof
No
Power loss
5.6
Frequency
50/60 Hz
Degree of protection IP
IP20
Connectable conductor cross section solid-core
1
35
Connectable conductor cross section multi-wired
1
25
With interlocking device
Yes
Ambient temperature during operating
-25
60
Additional equipment possible
Yes
Device width
72
Device height
91
Device depth
73.5
Rated impulse withstand voltage Uimp
6
Type of personal protection PRCD
-
Brands
SCHNEIDER
