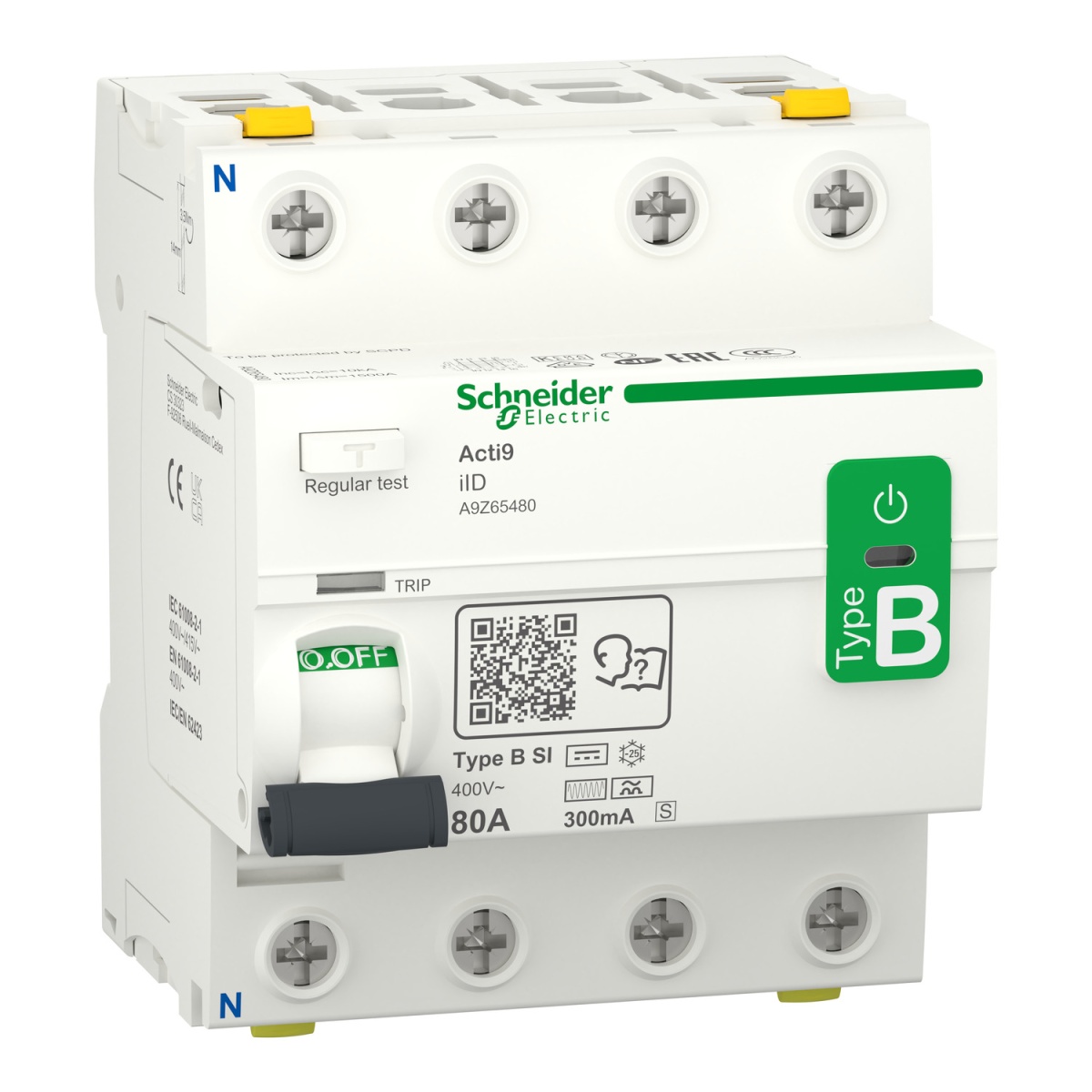

Acti9 iID - Interruptor diferencial - 4P - 80A - 300mA - Seletivo - Classe B-SI
Cutting and Protection Devices
Acti9 iID - Interruptor diferencial - 4P - 80A - 300mA - Seletivo - Classe B-SI
Nortécnica Ref:
EAN:
3606489502881
Description
Technical Information
Attributes
Mounting method
DIN rail
Colour
White
Voltage type
AC
Built-in depth
44
Rated current
80
Rated voltage
400
Rated insulation voltage Ui
500
Number of poles
4
Rated fault current
0.3
Leakage current type
B
Selective protection
Yes
Short-circuit breaking capacity Icw
-
Surge current capacity
5
Pollution degree
3
Width in number of modular spacings
4
Short-time delayed tripping
Yes
RAL-number similar
9003
Explosion-proof
No
Potência dissipada
6.68
Frequency
50 Hz
Degree of protection IP
IP20
Connectable conductor cross section solid-core
1
35
Connectable conductor cross section multi-wired
1
25
With interlocking device
No
Ambient temperature during operating
-25
60
Additional equipment possible
Yes
Device width
72
Device height
88
Device depth
79
Rated impulse withstand voltage Uimp
6
Type of personal protection PRCD
-
Brands
Schneider Electric Portugal
