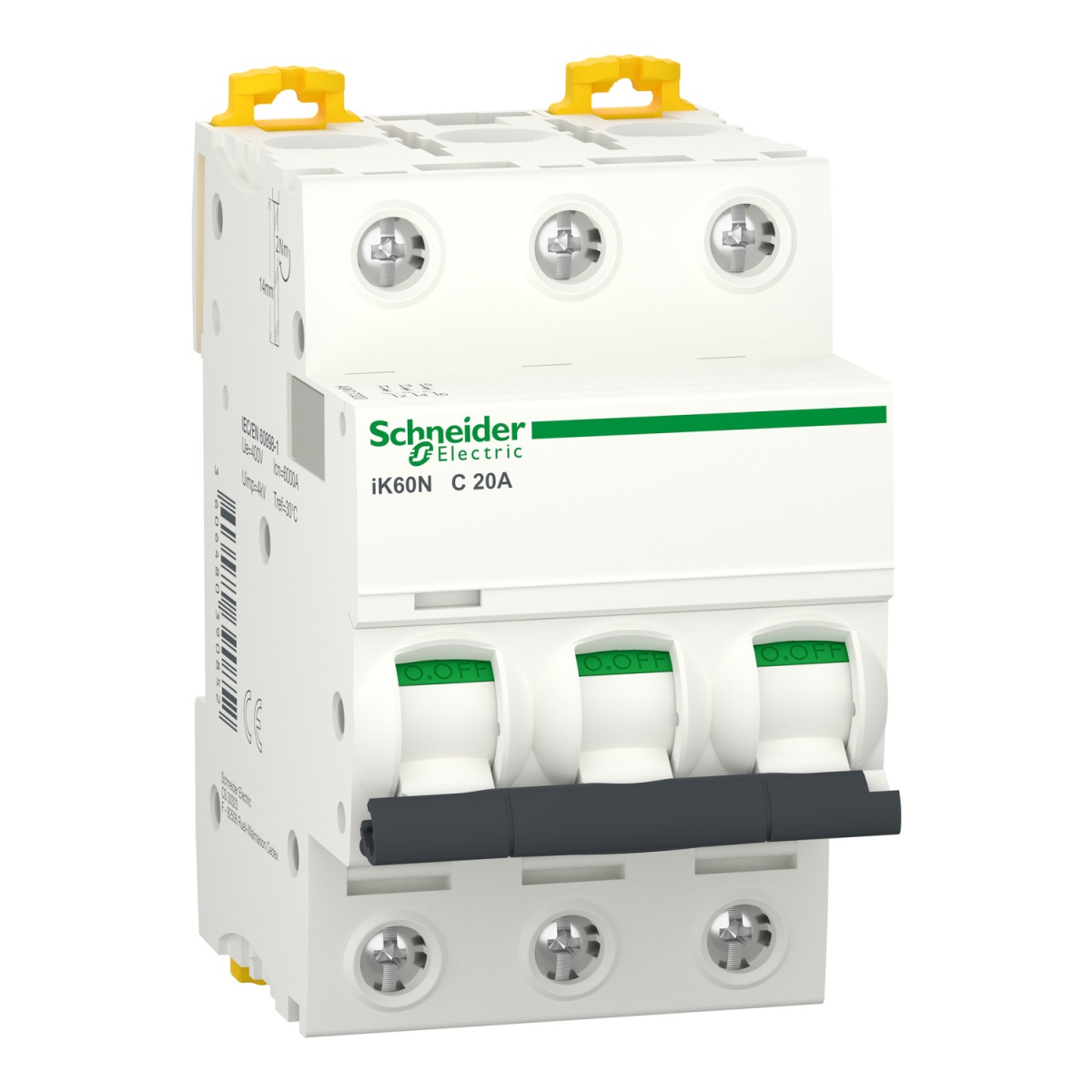

Acti9 iK60N - Disjuntor - 3P - 20A - Curva C - 6000A IEC 60898-1
Cutting and Protection Devices
Acti9 iK60N - Disjuntor - 3P - 20A - Curva C - 6000A IEC 60898-1
Nortécnica Ref:
51A9K17320
EAN:
3606480390852
Description
Technical Information
Attributes
Voltage type
AC
Built-in depth
44.5
Rated current
20
Rated voltage
400
Frequency
50
60
Release characteristic
C
Rated insulation voltage Ui
440
Current limiting class
3
Overvoltage category
-
Pollution degree
2
Width in number of modular spacings
3
Explosion-proof
No
Power loss
3.0
Degree of protection IP
IP20
Number of protected poles
3
Concurrently switching neutral conductor
Yes
Connectable conductor cross section solid-core
1
25
Connectable conductor cross section multi-wired
1
16
Ambient temperature during operating
-25
60
Flush-mounted installation
No
Additional equipment possible
No
Number of poles total
3
EF009555
6
EF009556
-
EF009557
-
EF009558
-
Rated impulse withstand voltage Uimp
4
Brands
Schneider Electric Portugal
