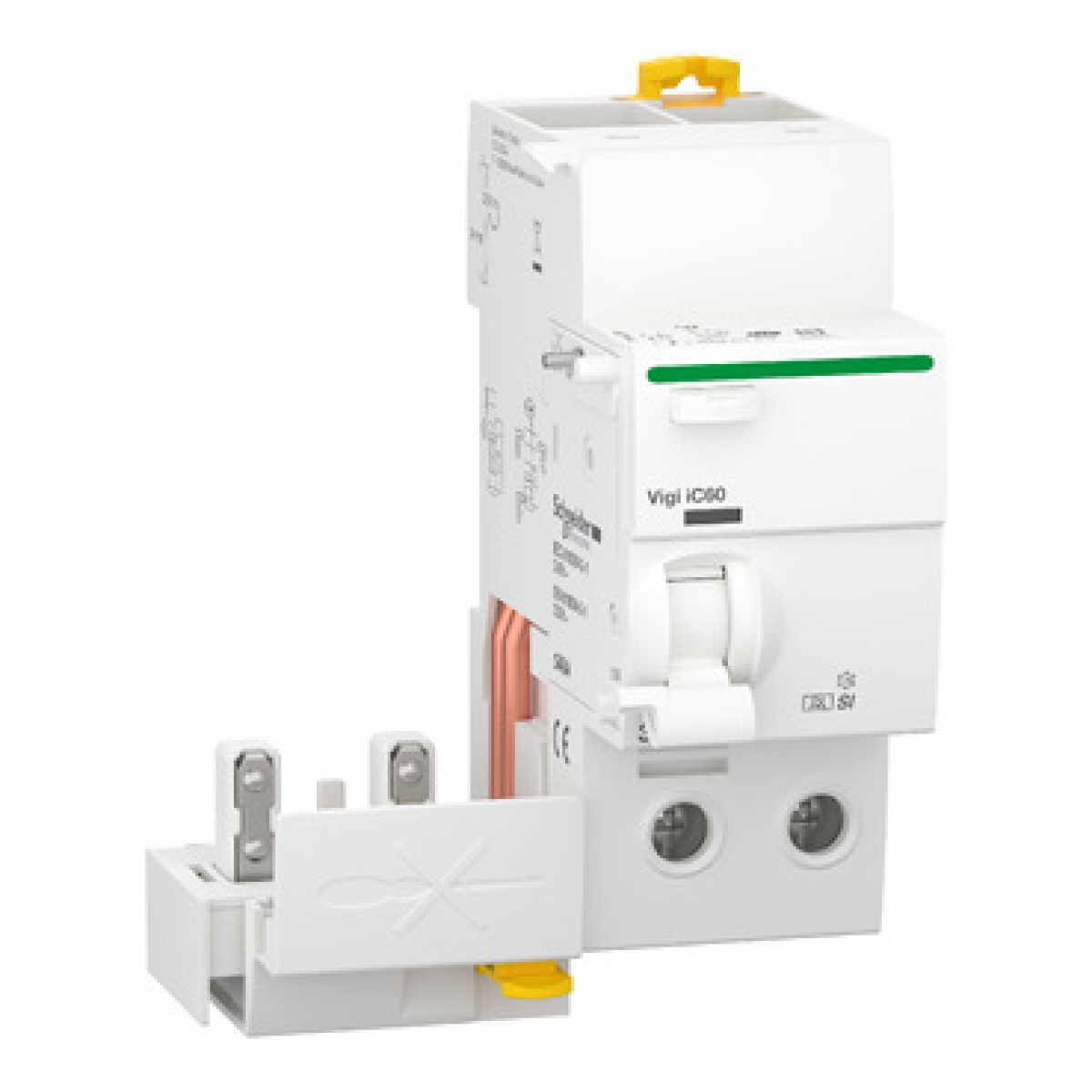

Acti9 Vigi iC60 - Bloco diferencial - 2P - 40A - 30mA - Classe A-SI
Cutting and Protection Devices
Acti9 Vigi iC60 - Bloco diferencial - 2P - 40A - 30mA - Classe A-SI
Nortécnica Ref:
51A9Q31240
EAN:
3606480393792
Description
Technical Information
Attributes
Corrente nominal
40
Tensão nominal de isolamento Ui
500
Número de polos
2
Delay adjustable
No
Max. delay time
0
Leakage current type
A
Surge current capacity
3
Grau de poluição
3
Rated fault current
0.03
0.03
Nominal voltage
230
240
Potência dissipada
1.5
Frequency
50/60 Hz
Degree of protection IP
IP20
Connectable conductor cross section solid-core
1
35
Connectable conductor cross section multi-wired
1
25
With interlocking device
No
Ambient temperature during operating
-25
60
Rated fault current adjustable
No
Anti-nuisance tripping version
Yes
Tensão estipulada suportável ao choque Uimp
6
Brands
SCHNEIDER
