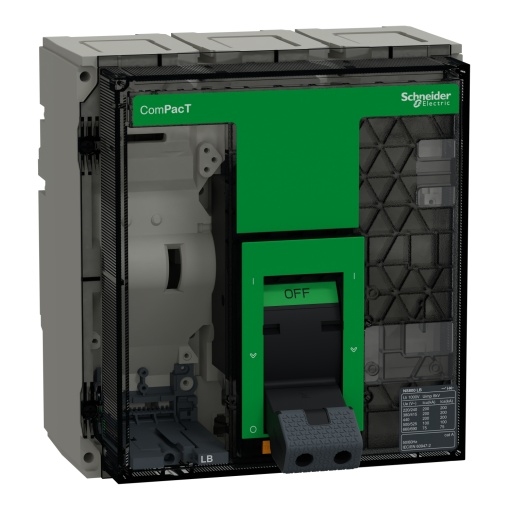

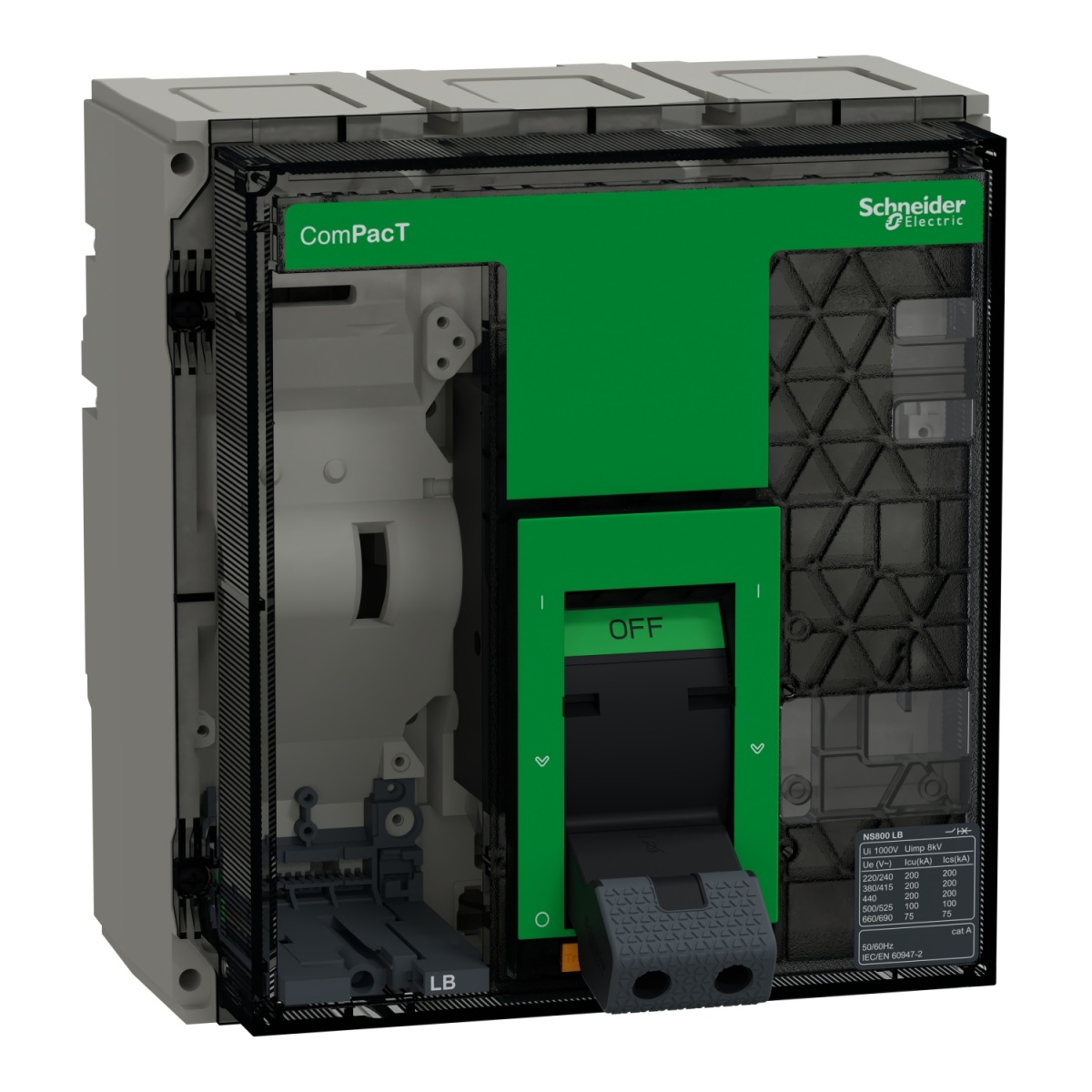

Bloco Corte NS800LB 3P 800 Fixo Manual
Cutting and Protection Devices
Bloco Corte NS800LB 3P 800 Fixo Manual
Nortécnica Ref:
EAN:
3606482238008
Description
Technical Information
Attributes
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
800
With integrated under voltage release
No
Number of poles
3
Overload release current setting
-
-
Número de contatos auxiliares como contato de comutação
0
Rated voltage
690
690
Potência dissipada
60
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Rocker lever
With switched-off indicator
Yes
Corrente nominal de comutação de curto-circuito Icu a 400 V, 50 Hz
200
Adjustment range short-term delayed short-circuit release
-
-
Adjustment range undelayed short-circuit release
-
-
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
No
Motor drive optional
Yes
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
No
Brands
SCHNEIDER
