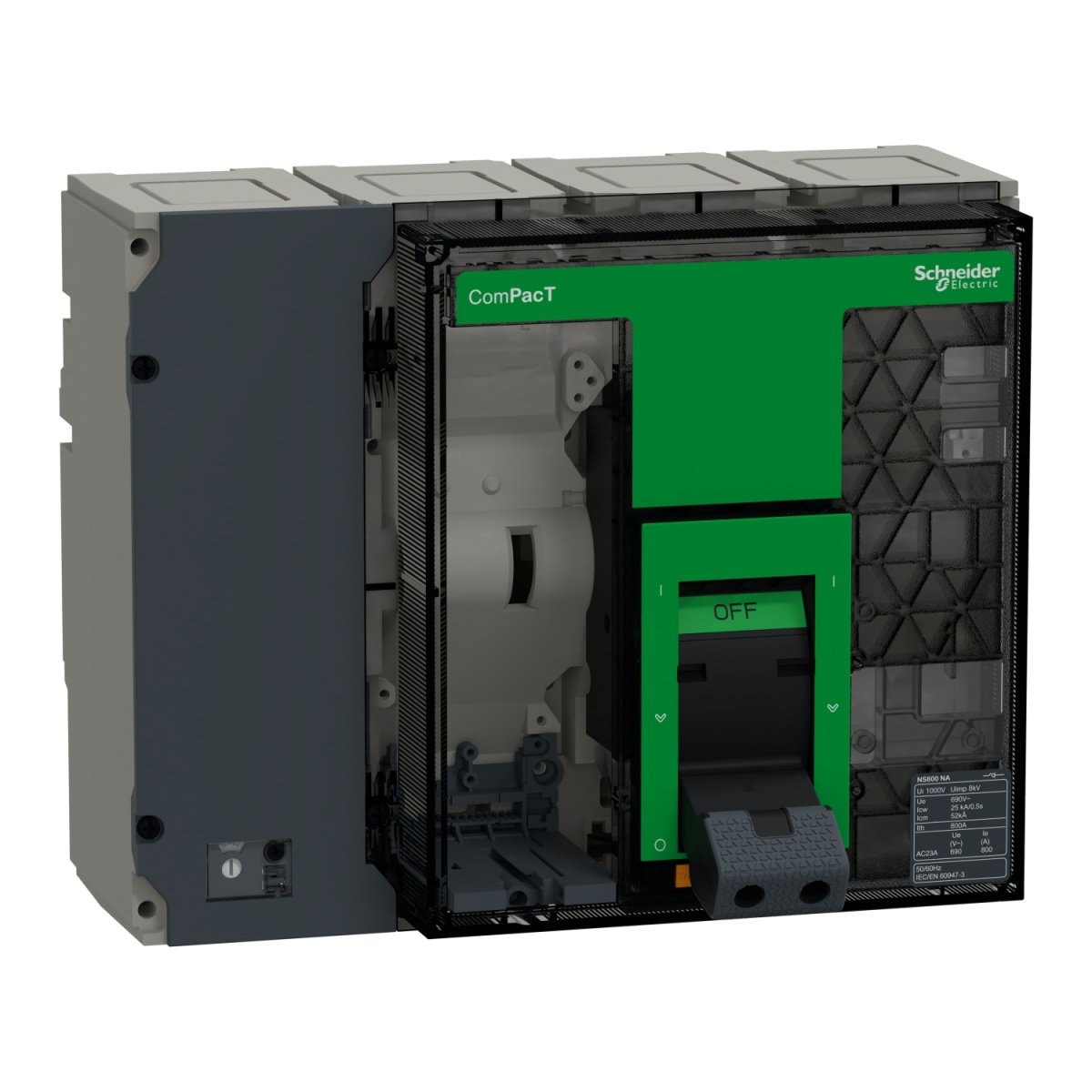

Bloco Corte NS800NA 4P 800 Fixo Manual
Cutting and Protection Devices
Bloco Corte NS800NA 4P 800 Fixo Manual
Nortécnica Ref:
EAN:
3606482238466
Description
Technical Information
Attributes
Width
327
Height
280
Depth
147
Housing colour
Grey
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
800
Number of poles
4
Rated operating voltage
220
690
Conditioned rated short-circuit current Iq
-
Housing material
Plastic
Largura em número de módulos
-
Degree of protection IP, front side
IP40
Número de contatos auxiliares como contato de comutação
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Wing knob
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
-
Rated short-time withstand current lcw
25
Colour control element
Black
EF007243
Yes
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
690
Motor drive optional
No
Voltage release optional
Yes
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
-
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
800
Degree of protection NEMA
-
With pre-assembled cabling
No
Suitable for floor mounting
No
Brands
SCHNEIDER
