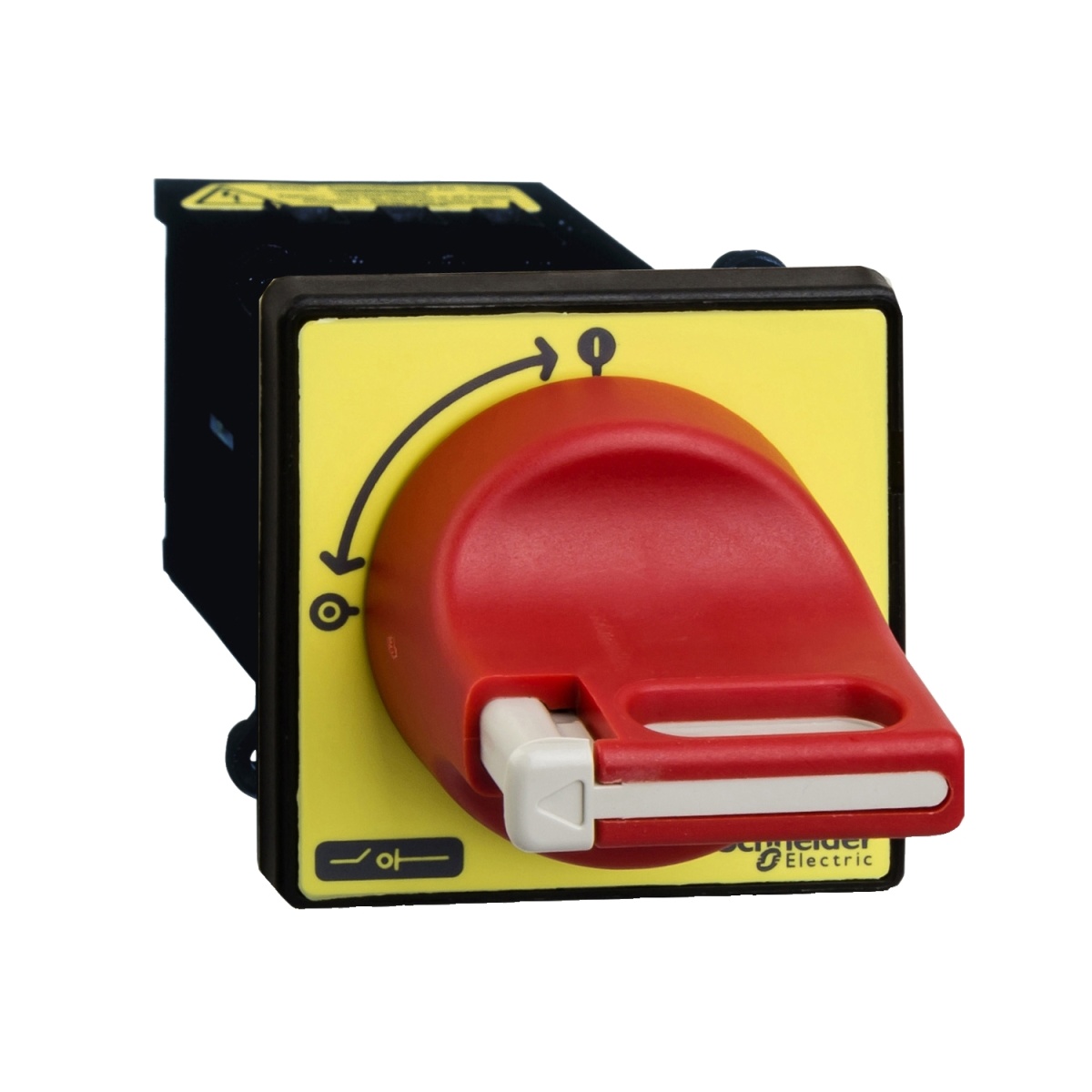

CHAVE SECCIONADORA TESYS VARIO VCDN12, 3P 12A VCDN12
Cutting and Protection Devices
CHAVE SECCIONADORA TESYS VARIO VCDN12, 3P 12A VCDN12
Nortécnica Ref:
52VCDN12
EAN:
3389110759877
Description
Technical Information
Attributes
Largura
60
Altura
60
Profundidade
123.5
Rated operation power at AC-3, 400 V
3
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
12
Número de polos
3
Rated operating voltage
690
690
Conditioned rated short-circuit current Iq
6
Largura em número de módulos
-
Degree of protection IP, front side
IP65
Número de contatos auxiliares como contato de comutação
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
Yes
Type of control element
Short rotary handle
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
No
Rated operation power at AC-23, 400 V
4
Rated short-time withstand current lcw
0.14
Colour control element
Red
EF007243
No
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
Yes
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
690
Motor drive optional
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
12
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
8.1
Degree of protection NEMA
-
With pre-assembled cabling
No
Brands
SCHNEIDER
