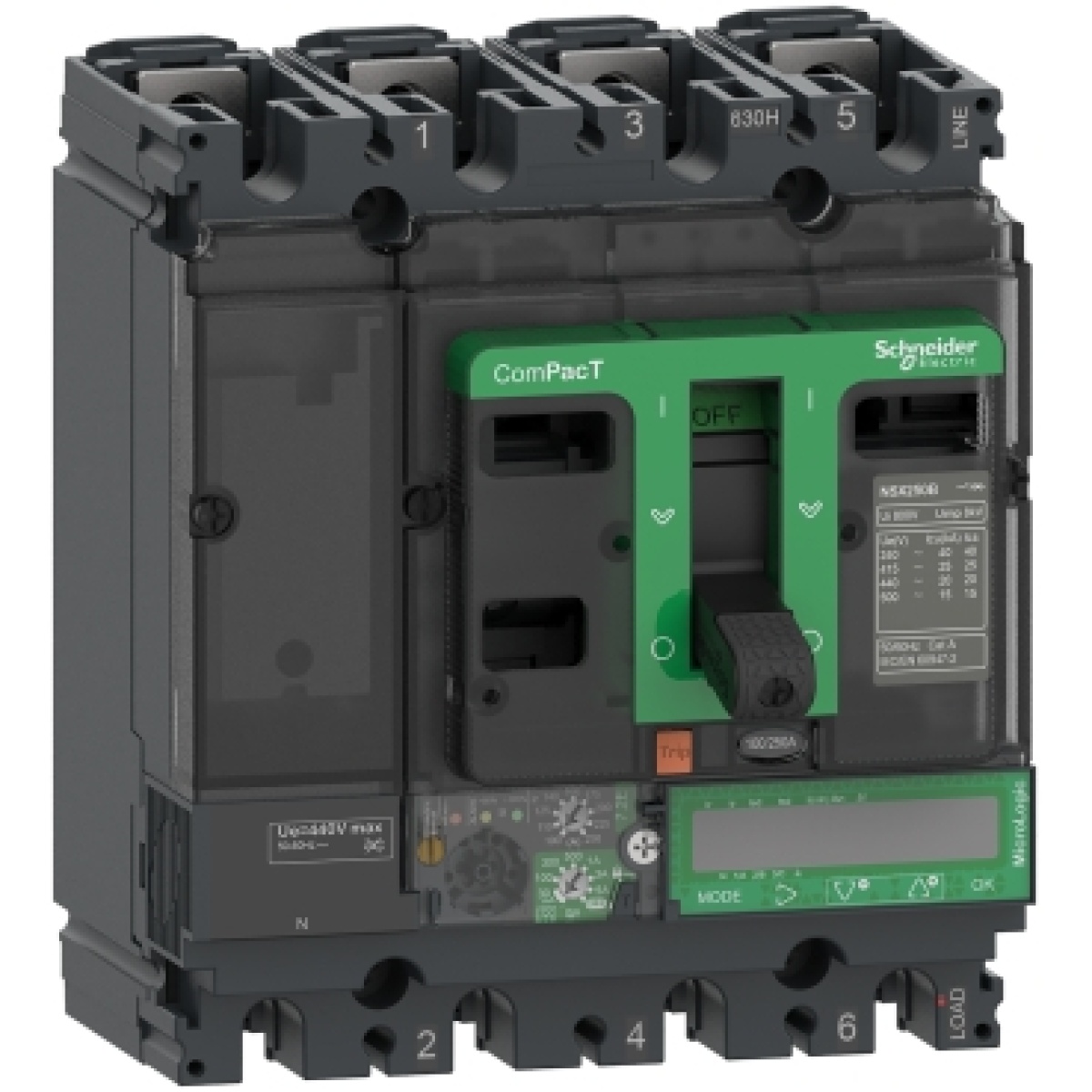

Circuit breaker ComPacT NSX160B, 25kA at 415VAC, MicroLogic 7.2 E Vigi trip unit 160A, 4 poles 4d
Cutting and Protection Devices
Circuit breaker ComPacT NSX160B, 25kA at 415VAC, MicroLogic 7.2 E Vigi trip unit 160A, 4 poles 4d
Nortécnica Ref:
51C16B47E160
EAN:
3606481994387
Description
Technical Information
Attributes
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
160
With integrated under voltage release
No
Número de polos
4
Overload release current setting
63
160
Número de contatos auxiliares como contato de comutação
0
Rated voltage
440
440
Potência dissipada
46.9
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Wing knob
With switched-off indicator
Yes
Corrente nominal de comutação de curto-circuito Icu a 400 V, 50 Hz
25
Adjustment range short-term delayed short-circuit release
94.5
1600
Adjustment range undelayed short-circuit release
240
2400
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
Yes
Motor drive optional
Yes
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
Yes
Complete device with protection unit
Yes
Brands
SCHNEIDER
