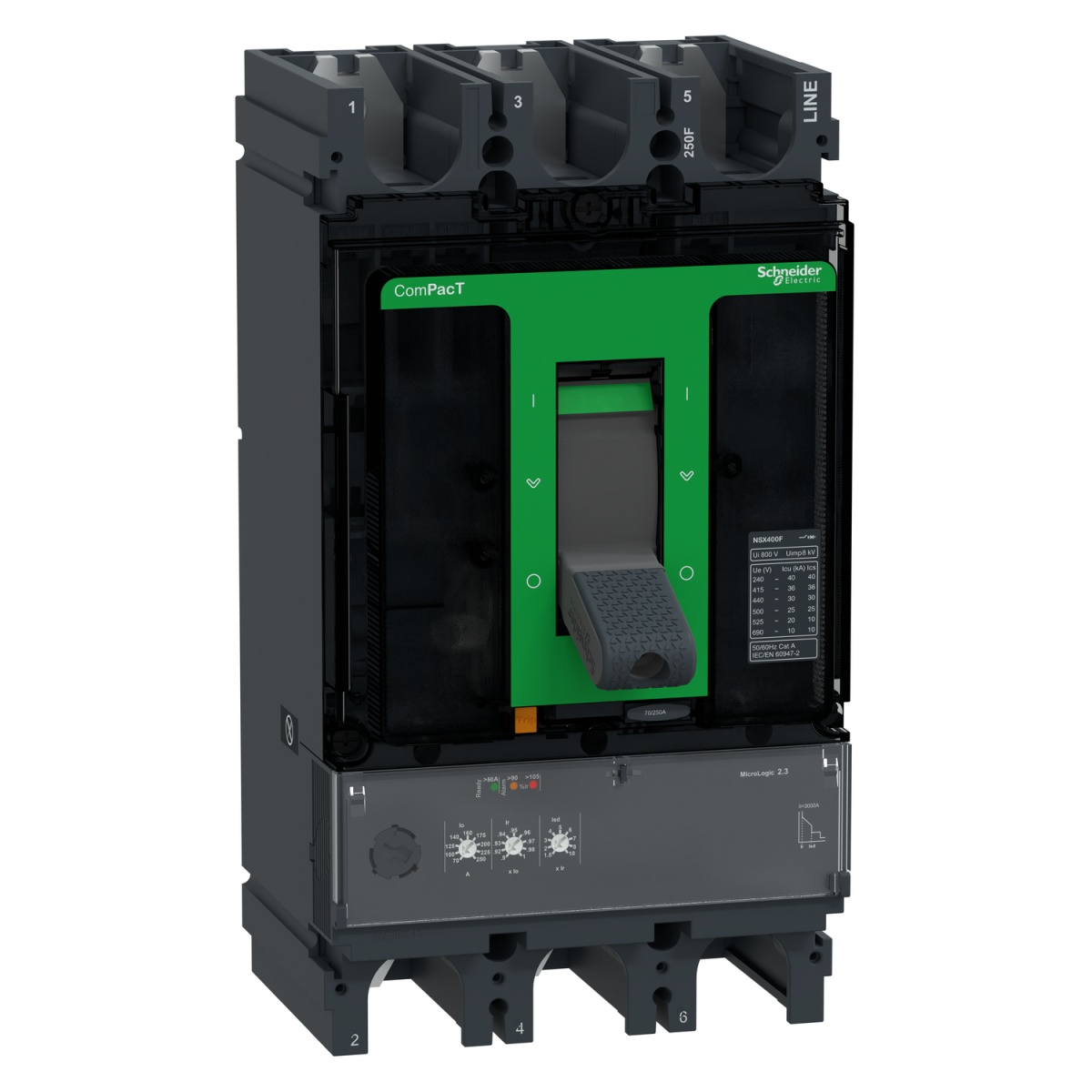

Circuit breaker ComPacT NSX400F, 36kA at 415VAC, MicroLogic 2.3 trip unit 250A, 3 poles 3d
Cutting and Protection Devices
Circuit breaker ComPacT NSX400F, 36kA at 415VAC, MicroLogic 2.3 trip unit 250A, 3 poles 3d
Nortécnica Ref:
EAN:
3606482002579
Description
Technical Information
Attributes
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
250
With integrated under voltage release
No
Number of poles
3
Overload release current setting
70
250
Número de contatos auxiliares como contato de comutação
0
Rated voltage
690
690
Power loss
57.6
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Wing knob
With switched-off indicator
Yes
Corrente nominal de comutação de curto-circuito Icu a 400 V, 50 Hz
36
Adjustment range short-term delayed short-circuit release
105
2500
Adjustment range undelayed short-circuit release
3000
3000
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
No
Motor drive optional
Yes
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
SCHNEIDER
