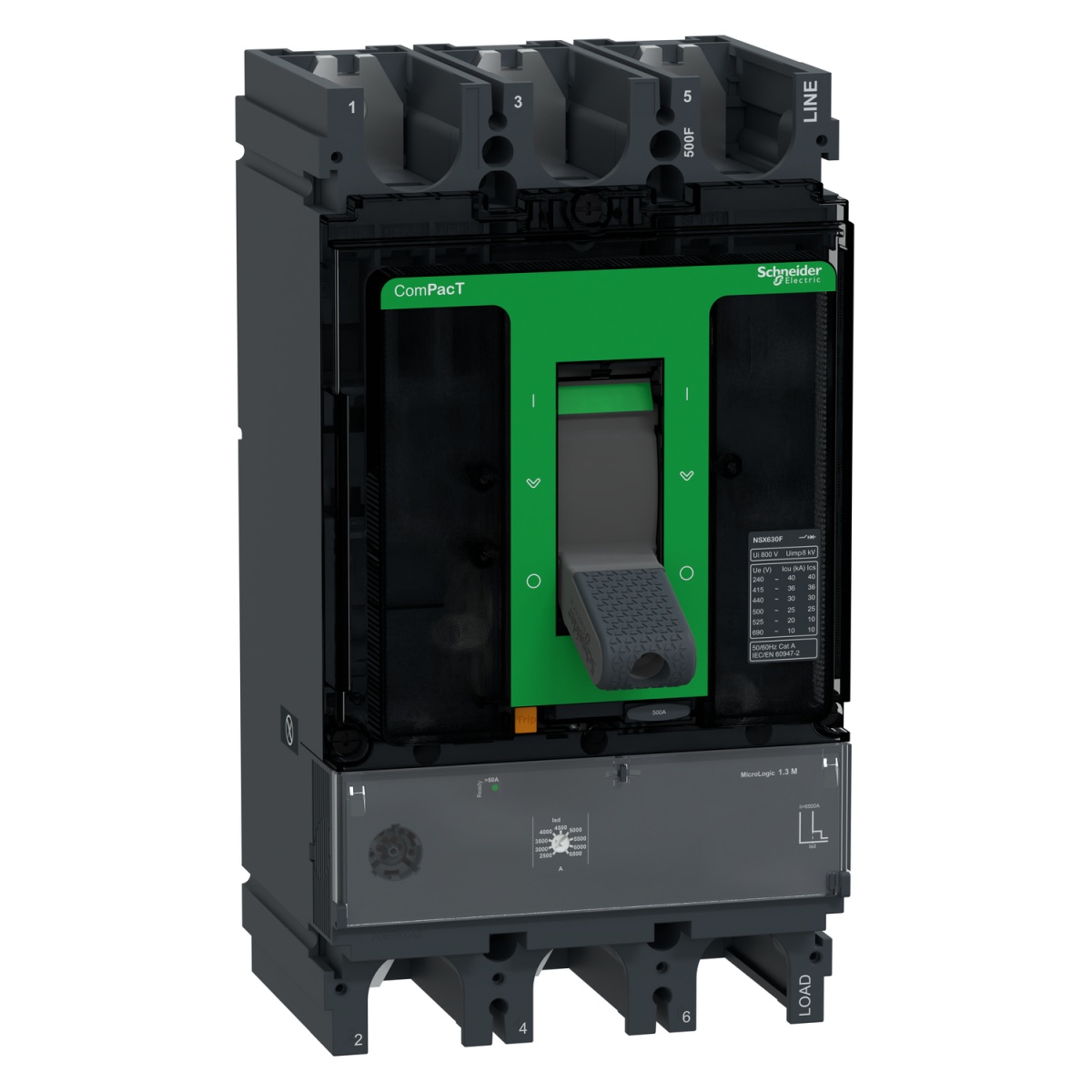

Circuit breaker ComPacT NSX630F, 36kA at 415VAC, MicroLogic 1.3 M trip unit 500A, 3 poles 3d
Cutting and Protection Devices
Circuit breaker ComPacT NSX630F, 36kA at 415VAC, MicroLogic 1.3 M trip unit 500A, 3 poles 3d
Nortécnica Ref:
EAN:
3606482002616
Description
Technical Information
Attributes
Width
140
Height
255
Depth
110
Rated operation power at AC-3, 400 V
-
With integrated auxiliary switch
No
Corrente permanente nominal Iu
500
With integrated under voltage release
No
Number of poles
3
Rated operating voltage
690
690
Overload release current setting
-
-
Power loss
75
Degree of protection IP
IP40
With thermal overload protection
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Other
Switch off technique
Electronic
Rated operation power at AC-3, 230 V
-
Rated short-circuit breaking capacity Icu at 400 V, AC
36
Adjustment range undelayed short-circuit release
6500
6500
Phase failure sensitive
No
Device construction
Built-in device fixed built-in technique
Brands
SCHNEIDER
