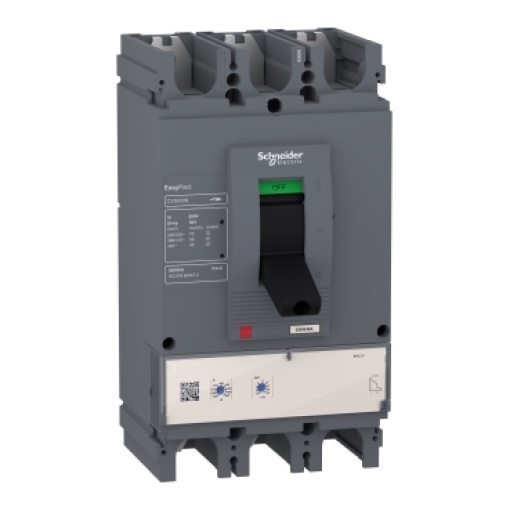

circuit breaker EasyPact CVS400N, 50 kA at 415 VAC, 400 A rating ETS 2.3 electronic trip unit, 3P 3d
Cutting and Protection Devices
circuit breaker EasyPact CVS400N, 50 kA at 415 VAC, 400 A rating ETS 2.3 electronic trip unit, 3P 3d
Nortécnica Ref:
EAN:
3606480249082
Description
Technical Information
Attributes
Number of auxiliary contacts as normally open contact
-
Number of auxiliary contacts as normally closed contact
-
Rated permanent current Iu
400
With integrated under voltage release
No
Número de polos
3
Overload release current setting
200
400
Number of auxiliary contacts as change-over contact
0
Rated voltage
440
440
Power loss
30.0
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Wing knob
With switched-off indicator
Yes
Corrente nominal de comutação de curto-circuito Icu a 400 V, 50 Hz
50
Adjustment range short-term delayed short-circuit release
-
-
Adjustment range undelayed short-circuit release
0
4400
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
No
Motor drive optional
No
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
SCHNEIDER
