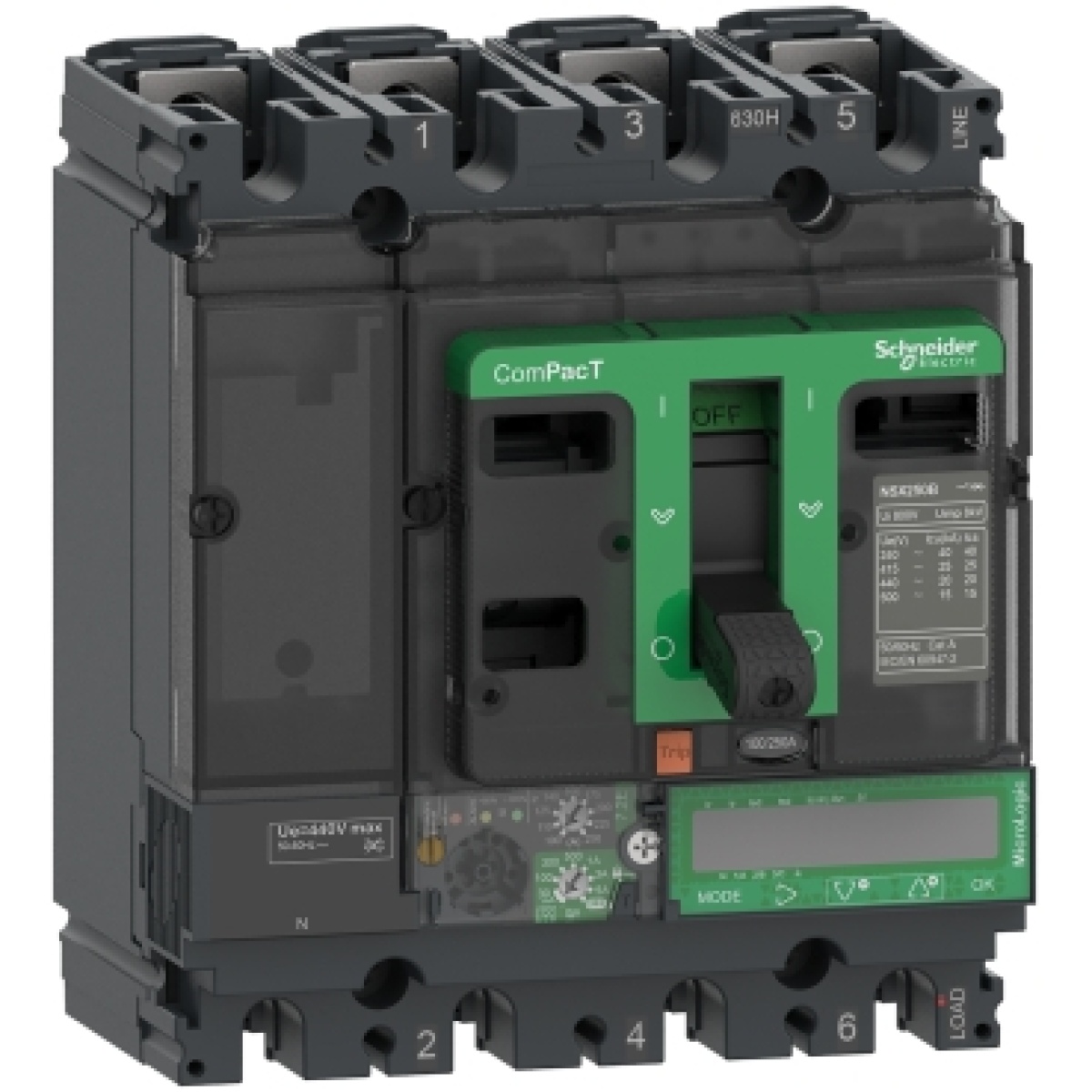

ComPacT DISJUNTOR NSX250N 50kA CA 4P4D 100A 7.2E
Cutting and Protection Devices
ComPacT DISJUNTOR NSX250N 50kA CA 4P4D 100A 7.2E
Nortécnica Ref:
EAN:
3606481994516
Description
Technical Information
Attributes
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
100
With integrated under voltage release
No
Number of poles
4
Overload release current setting
40
100
Número de contatos auxiliares como contato de comutação
0
Rated voltage
440
440
Power loss
95.6
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Wing knob
With switched-off indicator
Yes
Corrente nominal de comutação de curto-circuito Icu a 400 V, 50 Hz
50
Adjustment range short-term delayed short-circuit release
60
1000
Adjustment range undelayed short-circuit release
150
1500
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
Yes
Motor drive optional
Yes
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
Yes
Complete device with protection unit
Yes
Brands
SCHNEIDER
