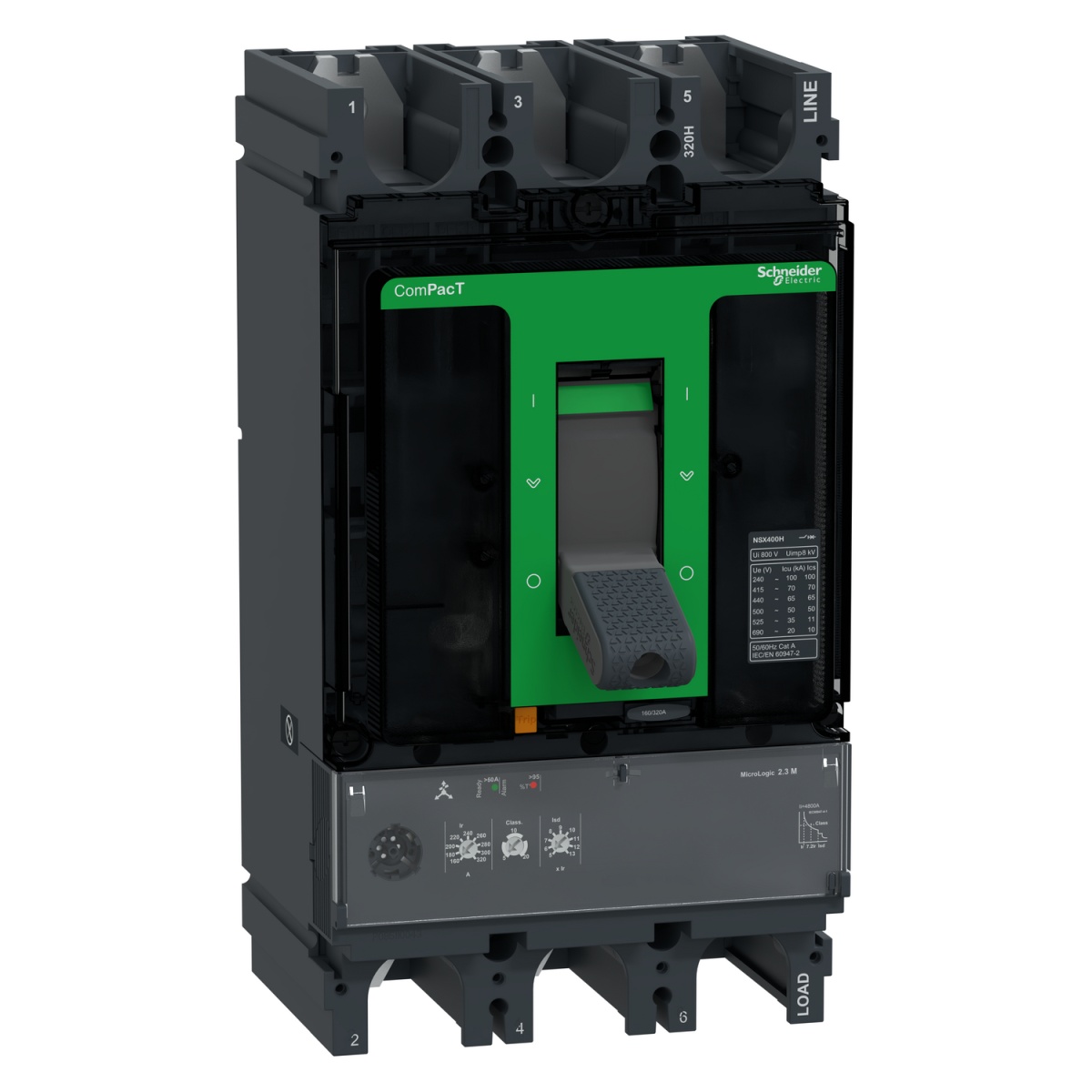

ComPacT DISJUNTOR NSX400H 70kA CA 3P3D 320A 2.3M
Cutting and Protection Devices
ComPacT DISJUNTOR NSX400H 70kA CA 3P3D 320A 2.3M
Nortécnica Ref:
EAN:
3606482002821
Description
Technical Information
Attributes
Width
140
Height
255
Depth
110
Rated operation power at AC-3, 400 V
-
With integrated auxiliary switch
No
Corrente permanente nominal Iu
320
With integrated under voltage release
No
Number of poles
3
Rated operating voltage
690
690
Overload release current setting
160
320
Power loss
57.6
Degree of protection IP
IP40
With thermal overload protection
Yes
Type of electrical connection of main circuit
Screw connection
Type of control element
Other
Switch off technique
Electronic
Rated operation power at AC-3, 230 V
-
Rated short-circuit breaking capacity Icu at 400 V, AC
70
Adjustment range undelayed short-circuit release
4800
4800
Phase failure sensitive
Yes
Device construction
Built-in device fixed built-in technique
Brands
SCHNEIDER
