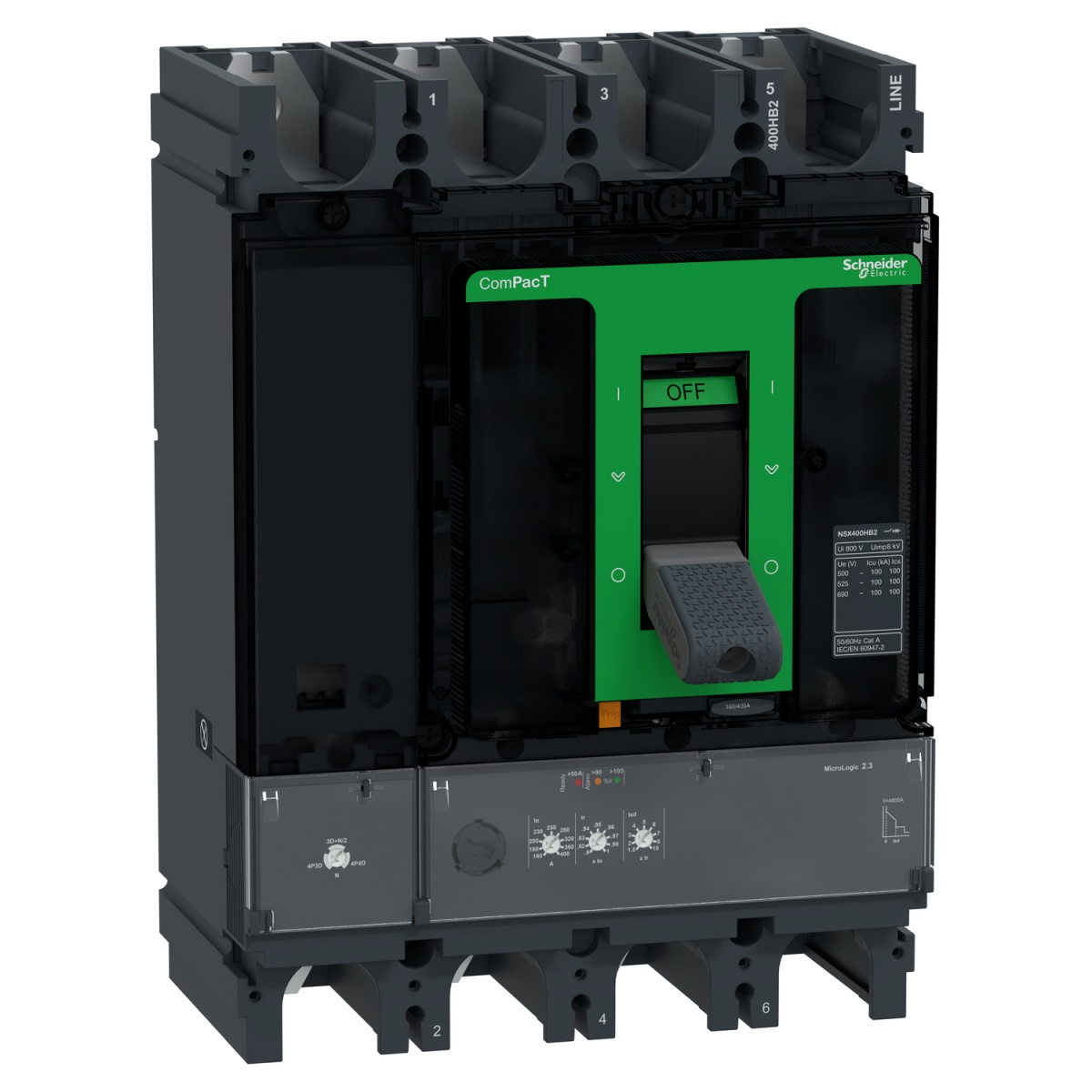

ComPacT DISJUNTOR NSX400HB2 100kA CA 4P 400A 2,3
Cutting and Protection Devices
ComPacT DISJUNTOR NSX400HB2 100kA CA 4P 400A 2,3
Nortécnica Ref:
EAN:
3606481989307
Description
Technical Information
Attributes
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
400
With integrated under voltage release
No
Number of poles
4
Overload release current setting
160
400
Número de contatos auxiliares como contato de comutação
0
Rated voltage
690
690
Power loss
76.8
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Wing knob
With switched-off indicator
Yes
Corrente nominal de comutação de curto-circuito Icu a 400 V, 50 Hz
-
Adjustment range short-term delayed short-circuit release
240
4000
Adjustment range undelayed short-circuit release
4800
4800
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
No
Motor drive optional
Yes
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
SCHNEIDER
