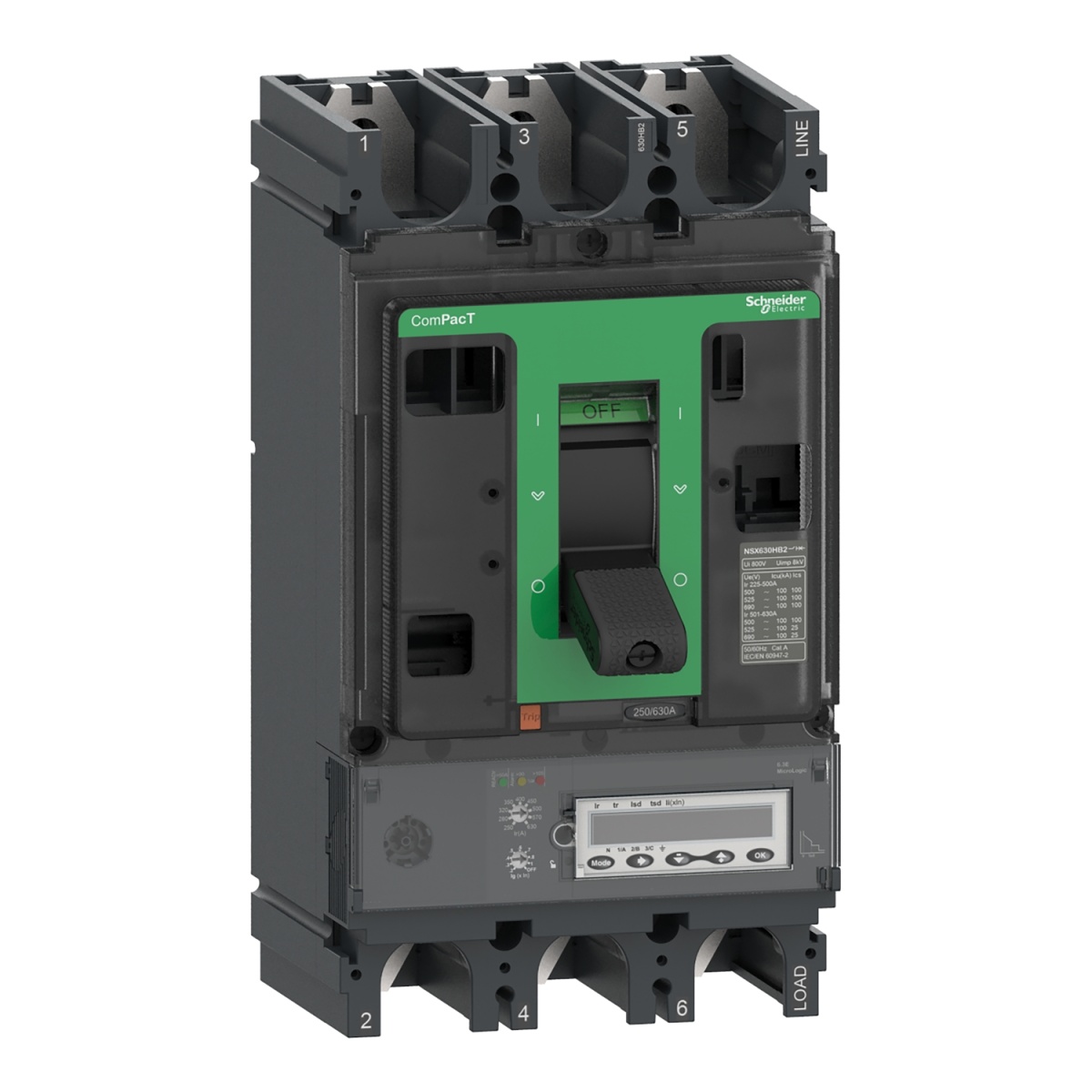

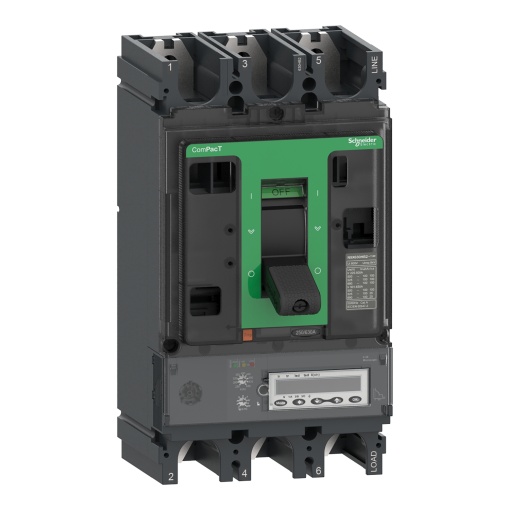

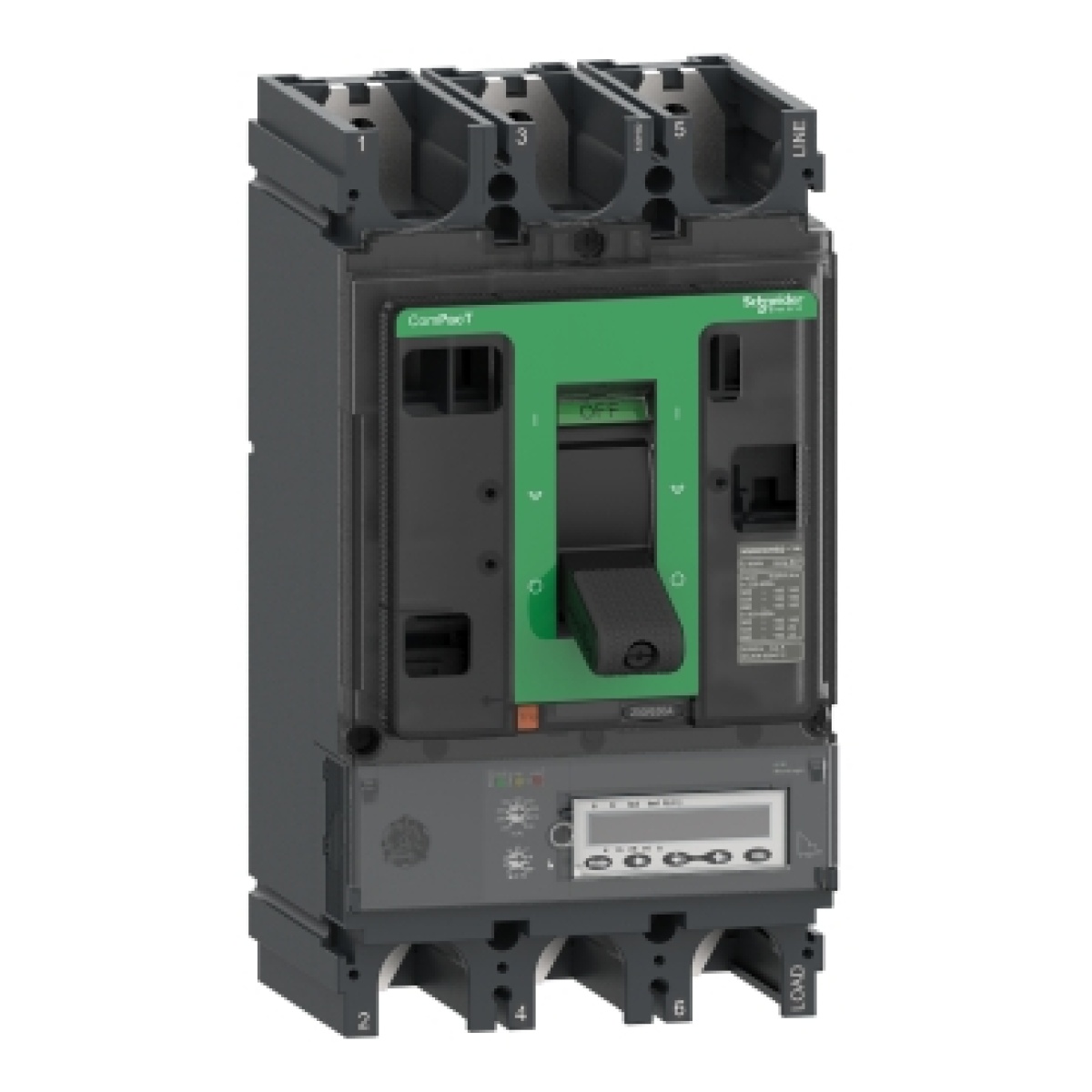

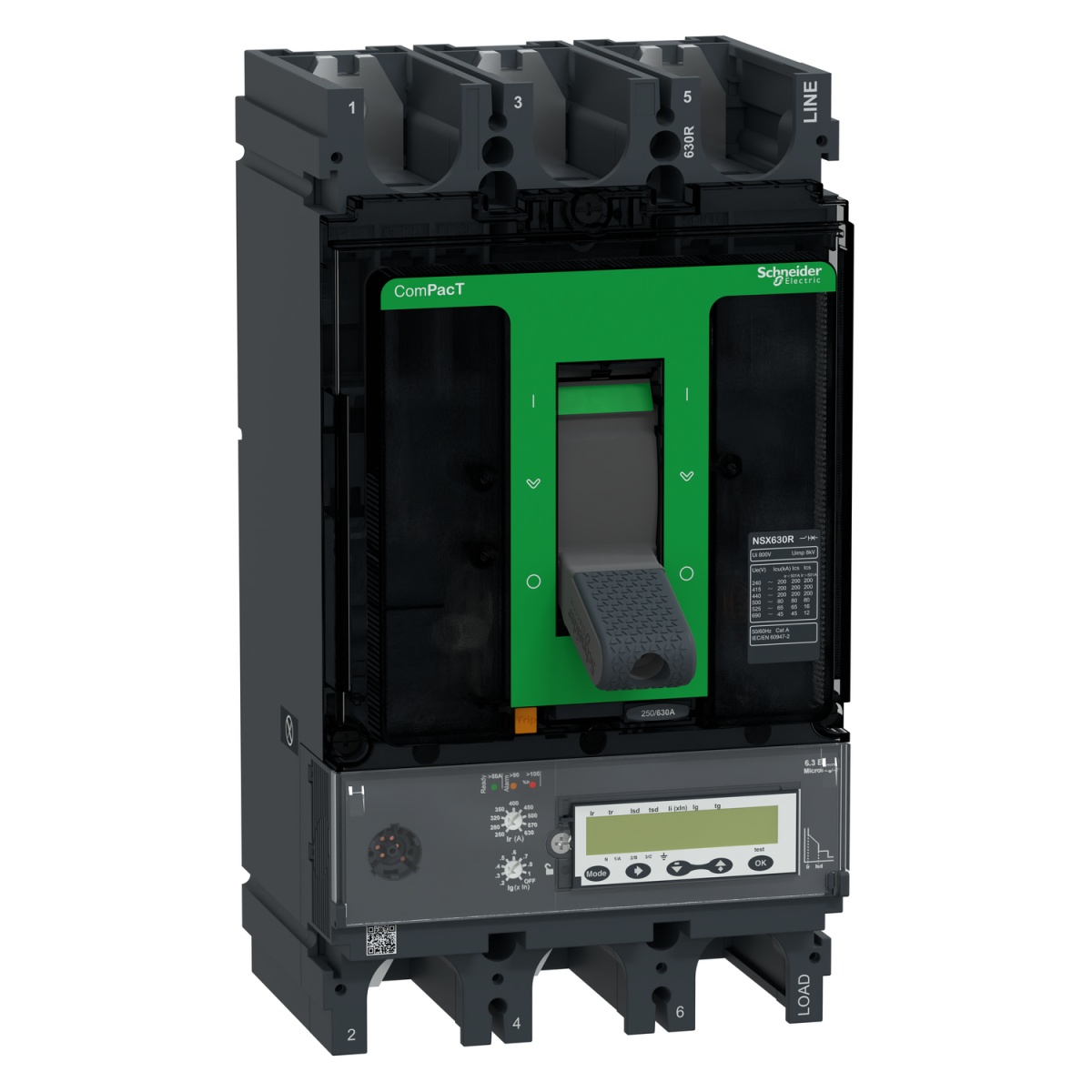

ComPacT DISJUNTOR NSX630R 200kA CA 3P 630A 6.3E
Cutting and Protection Devices
ComPacT DISJUNTOR NSX630R 200kA CA 3P 630A 6.3E
Nortécnica Ref:
EAN:
3606481988829
Description
Technical Information
Attributes
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
630
With integrated under voltage release
No
Number of poles
3
Overload release current setting
250
630
Número de contatos auxiliares como contato de comutação
0
Rated voltage
690
690
Power loss
119.1
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Wing knob
With switched-off indicator
Yes
Corrente nominal de comutação de curto-circuito Icu a 400 V, 50 Hz
200
Adjustment range short-term delayed short-circuit release
375
6300
Adjustment range undelayed short-circuit release
945
6930
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
Yes
Motor drive optional
Yes
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
SCHNEIDER
