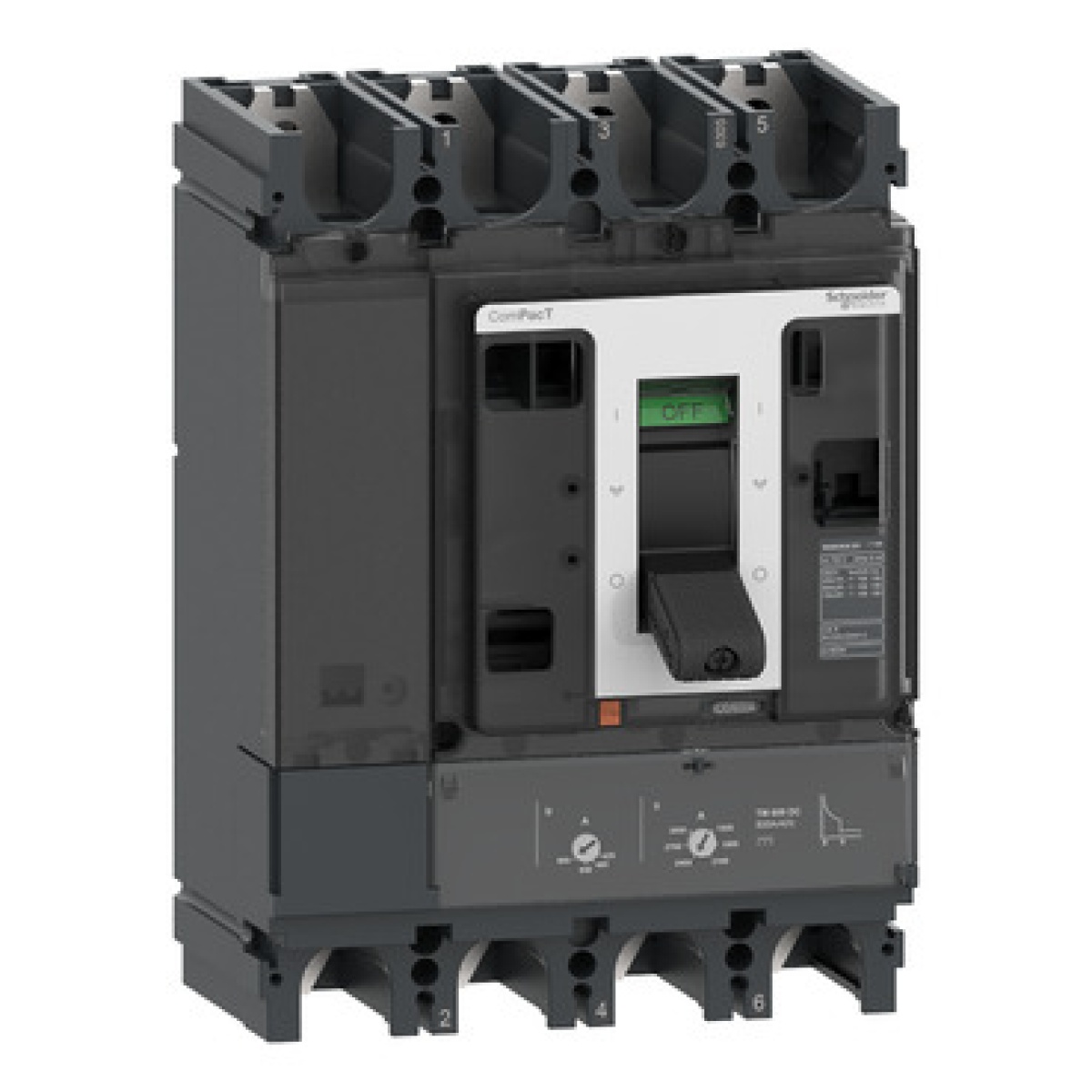

ComPacT DISJUNTOR NSX630S 100kA CC 4P 600A TMD
Cutting and Protection Devices
ComPacT DISJUNTOR NSX630S 100kA CC 4P 600A TMD
Nortécnica Ref:
EAN:
3606482003460
Description
Technical Information
Attributes
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
600
With integrated under voltage release
No
Number of poles
4
Overload release current setting
420
600
Número de contatos auxiliares como contato de comutação
0
Rated voltage
750
750
Power loss
-
Degree of protection IP
IP3X
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Wing knob
With switched-off indicator
Yes
Corrente nominal de comutação de curto-circuito Icu a 400 V, 50 Hz
100
Adjustment range short-term delayed short-circuit release
-
-
Adjustment range undelayed short-circuit release
1500
3000
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
No
Motor drive optional
Yes
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
SCHNEIDER
