O ComPacT NSXm100E é um disjuntor fixo 4P completo, concebido para otimizar o espaço e a capacidade de corte. A capacidade de corte (Icu) é de 16 kA rms a 415 VCA 50/60Hz. A tensão operacional é de 440 VCA 50/60 Hz. Apresenta novas caraterísticas como a tecnologia de conectores Everlink. Oferece capacidade de montagem em calha DIN e placa incorporada e auxiliares do tipo mola visíveis externamente. Este disjuntor de fuga à terra (ELCB) de 4 polos é um dos mais pequenos do mercado. As dimensões são de 108mm (L) x 144mm (A) x 80mm (P). Assegura a conformidade com as normas internacionais (IEC 60947/CCC/EAC) e especificações marítimas.
Cutting and Protection Devices

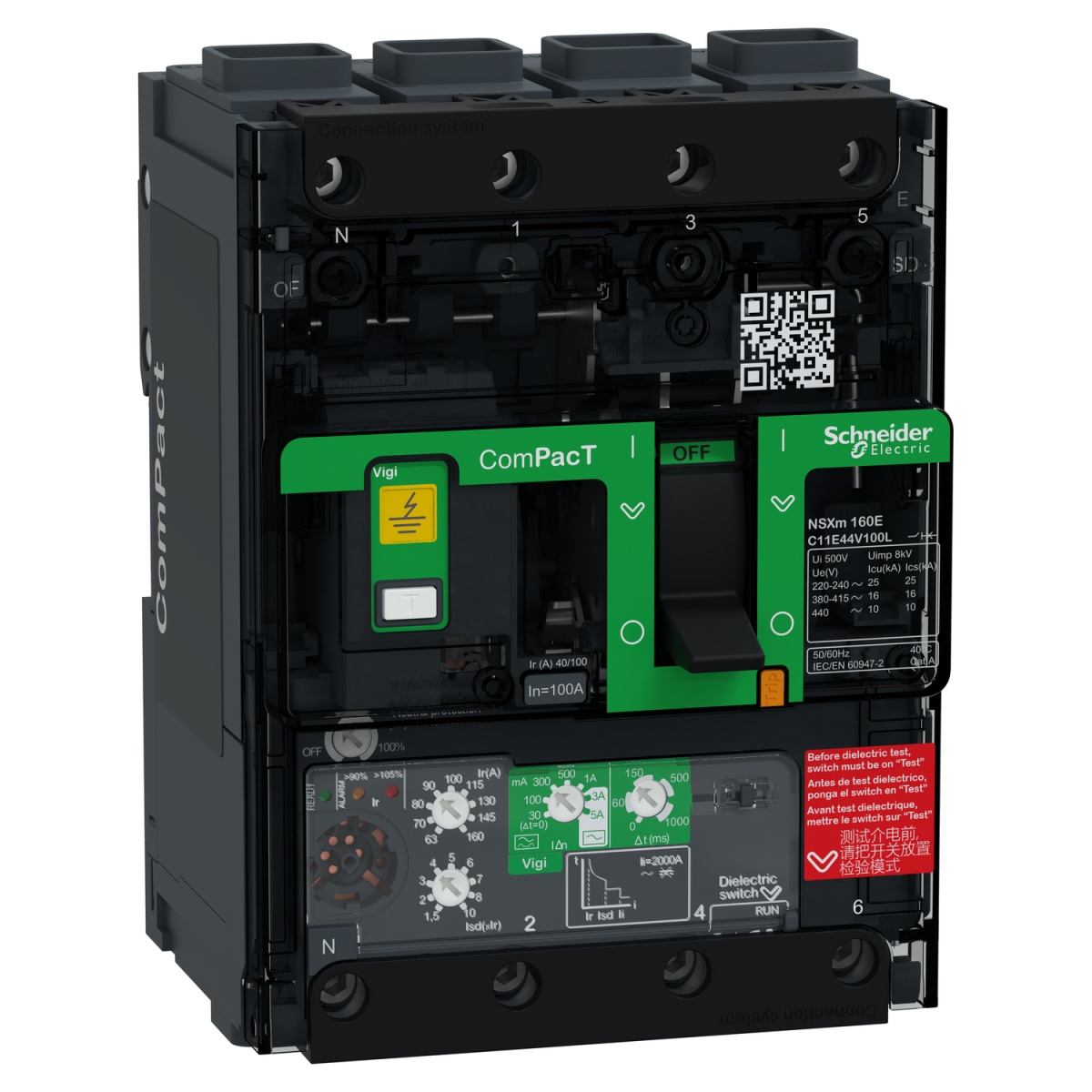

ComPacT DISJUNTOR NSXm100E 16kA CA 4P 100A 4,1 ELINK
Nortécnica Ref:
EAN:
3606481992420
Description
Technical Information
Attributes
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
100
With integrated under voltage release
-
Número de polos
4
Overload release current setting
40
100
Number of auxiliary contacts as change-over contact
0
Rated voltage
220
440
Potência dissipada
19.2
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Wing knob
With switched-off indicator
Yes
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
16
Adjustment range short-term delayed short-circuit release
60
1000
Adjustment range undelayed short-circuit release
1500
1500
Suitable for DIN rail top hat rail mounting
Yes
Integrated earth fault protection
Yes
Motor drive optional
No
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
Schneider Electric Portugal
