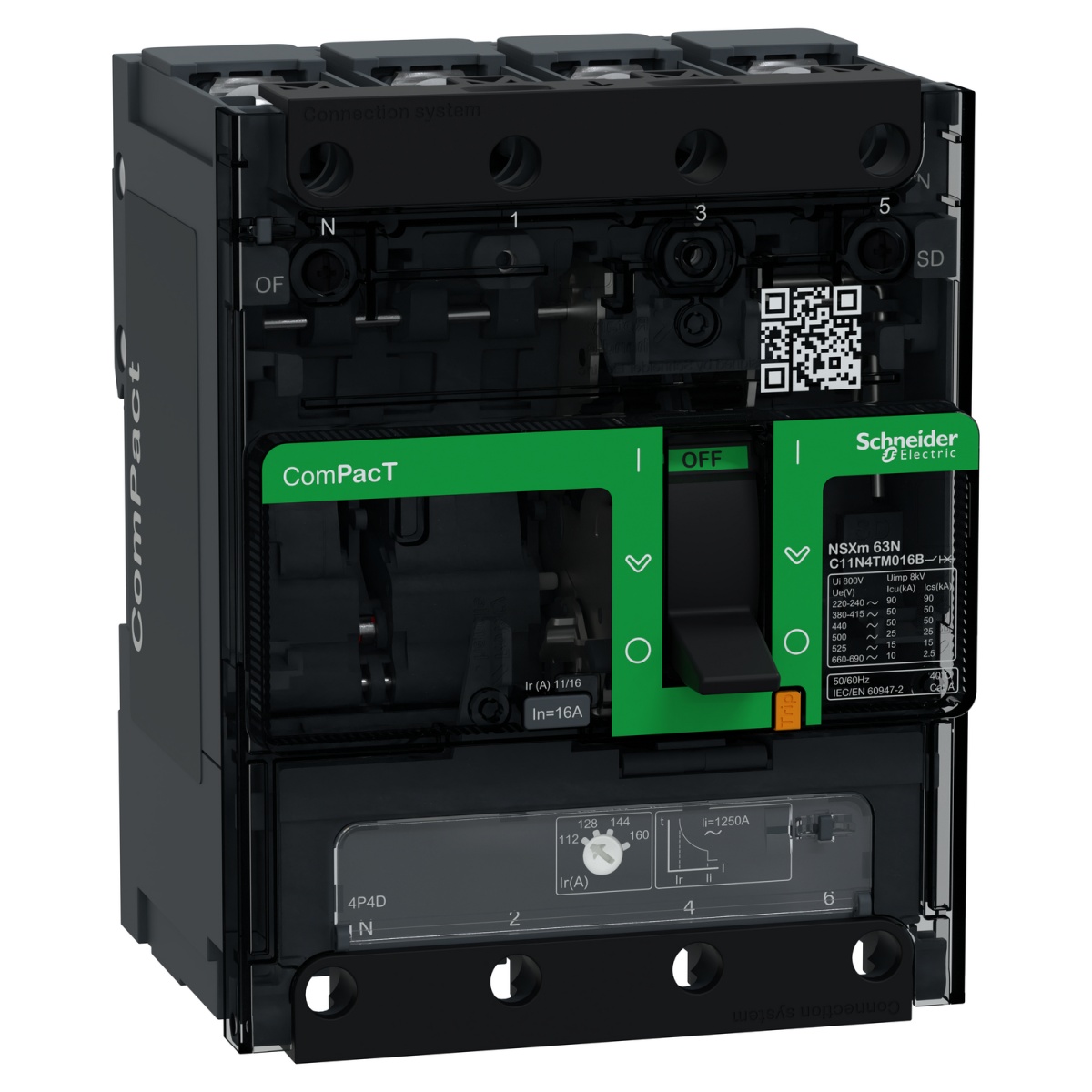

ComPacT DISJUNTOR NSXm100N 50kA CA 4P4D 16A TMD PARAFUSO
Cutting and Protection Devices
ComPacT DISJUNTOR NSXm100N 50kA CA 4P4D 16A TMD PARAFUSO
Nortécnica Ref:
EAN:
3606481991669
Description
Technical Information
Attributes
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
16
With integrated under voltage release
-
Number of poles
4
Overload release current setting
11.2
16
Número de contatos auxiliares como contato de comutação
0
Rated voltage
690
690
Power loss
9.2
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Wing knob
With switched-off indicator
Yes
Corrente nominal de comutação de curto-circuito Icu a 400 V, 50 Hz
50
Adjustment range short-term delayed short-circuit release
-
-
Adjustment range undelayed short-circuit release
500
500
Suitable for DIN rail top hat rail mounting
Yes
Integrated earth fault protection
No
Motor drive optional
No
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
SCHNEIDER
