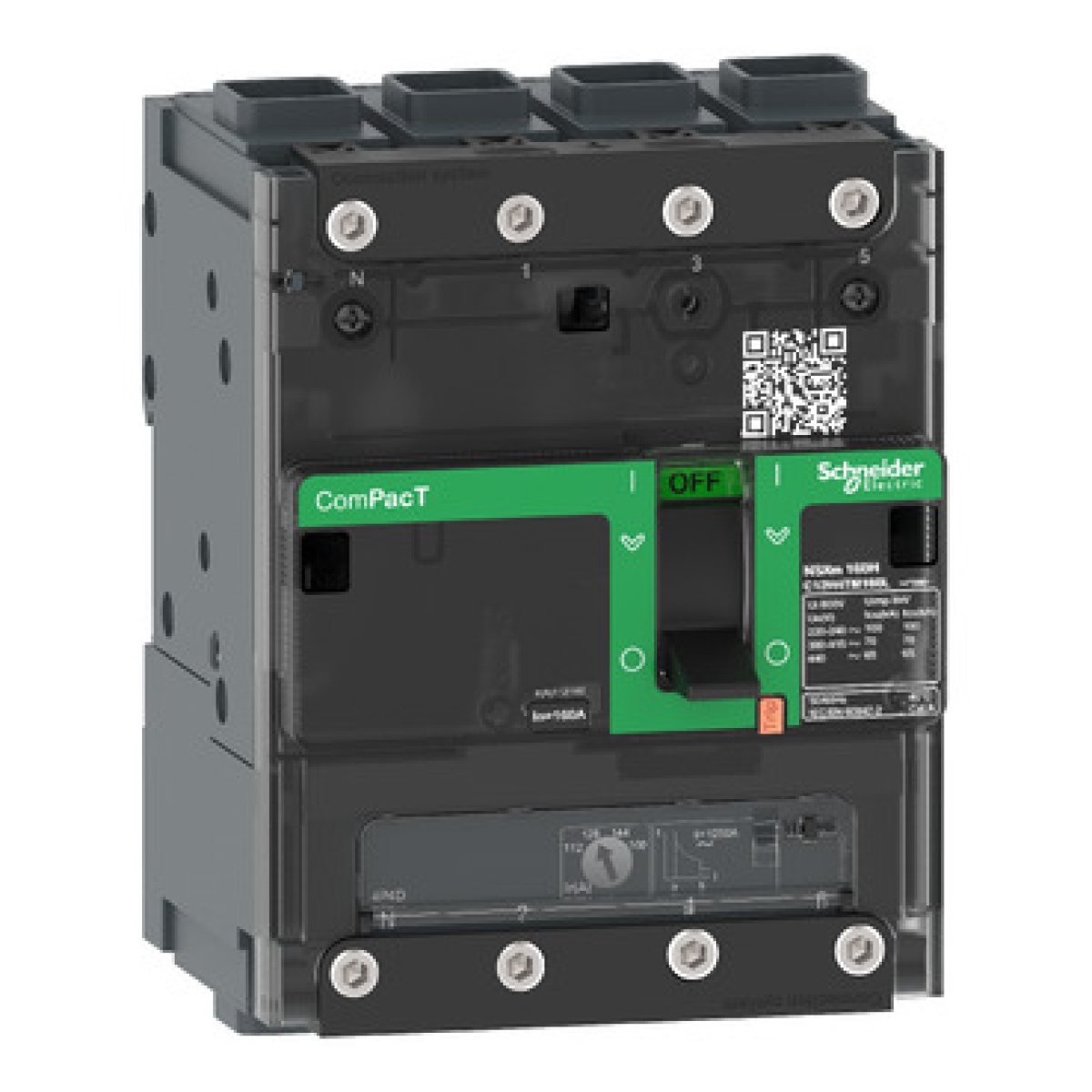

É um disjuntor com caixa moldada ComPacT NSXm, 160 A, 16 kA a 415 V CA, para todas as aplicações LV padrão. Oferece novas funcionalidades, como a tecnologia Everlink, a capacidade de montagem em calhas DIN e placas. Inclui novos auxiliares de tipo mola externamente visíveis. O ComPacT NSXm é um dos MCCB mais pequenos do mercado, 108 mm (L) x 137 mm (A) x 80 mm (D). Esta é uma versão de 4 pólos com uma unidade de disparo termomagnético incorporada. Assegura a conformidade com as normas internacionais (IEC 60947/CCC/EAC) e especificações marítimas.
Cutting and Protection Devices

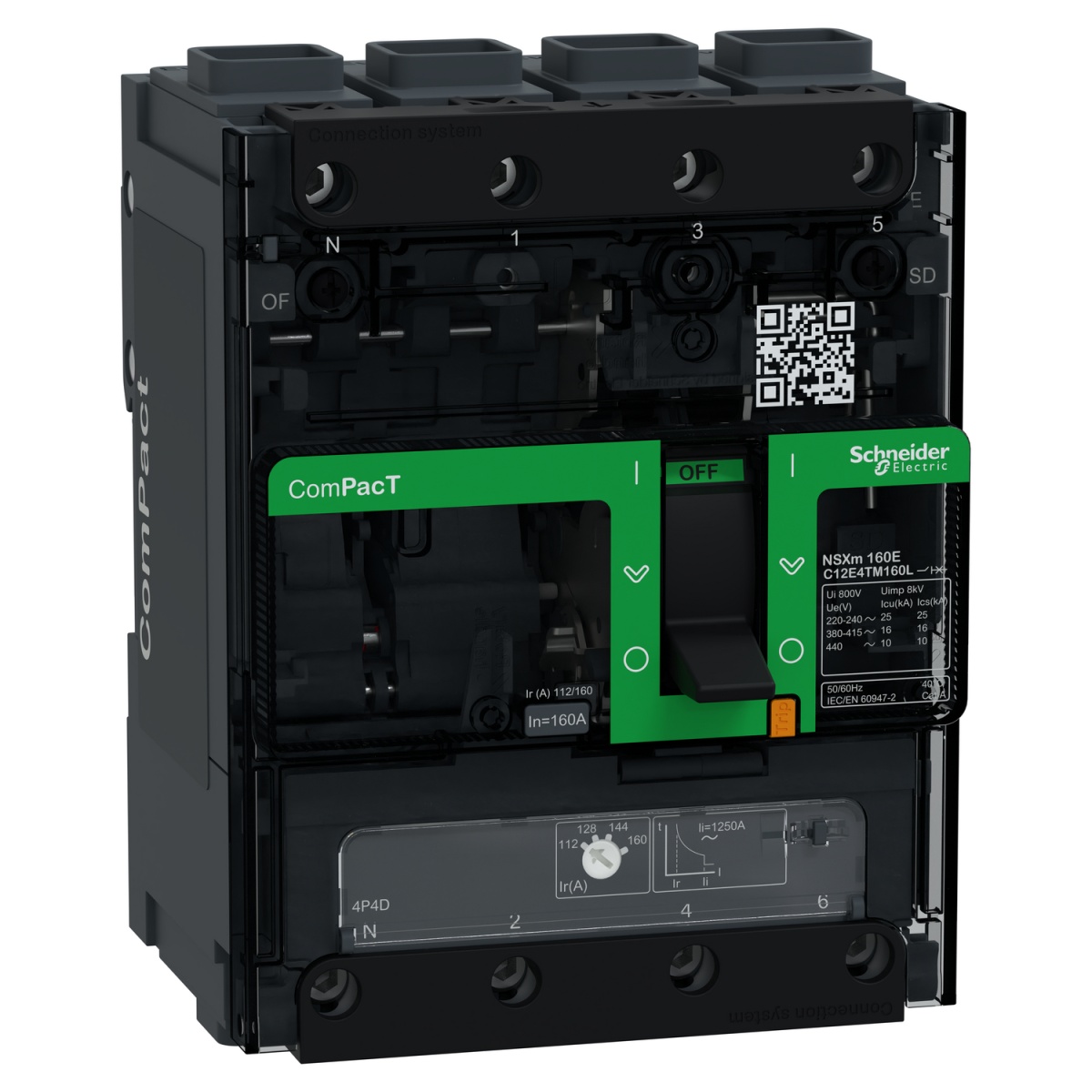

ComPacT DISJUNTOR NSXm160E 16kA CA 4P4D 160A TMD ELINK
Nortécnica Ref:
51C12E4TM160L
EAN:
3606481989659
Description
Technical Information
Attributes
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
160
With integrated under voltage release
-
Number of poles
4
Overload release current setting
112
160
Number of auxiliary contacts as change-over contact
0
Rated voltage
220
440
Potência dissipada
54.8
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Wing knob
With switched-off indicator
Yes
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
16
Adjustment range short-term delayed short-circuit release
-
-
Adjustment range undelayed short-circuit release
1250
1250
Suitable for DIN rail top hat rail mounting
Yes
Integrated earth fault protection
No
Motor drive optional
No
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
Schneider Electric Portugal
