O ComPacT NSXm160N é um disjuntor fixo 4P completo, concebido para otimizar o espaço e o poder de corte. o poder de corte (Icu) é de 50 kA rms a 415 VCA 50/60 Hz. A tensão de funcionamento é até 440 VCA a 50/60 Hz. Apresenta novas funcionalidades como a tecnologia de bornes Everlink. Oferece capacidade de montagem em platina e calha DIN incorporada e auxiliares de mola visíveis do exterior. Este disjuntor diferencial de 4 pólos (ELCB) é um dos mais compactos do mercado. As dimensões são 108 mm (L) x 144 mm (A) x 80 mm (P). Garante a conformidade com as normas internacionais (IEC 60947/CCC/EAC) e as especificações marítimas.
Cutting and Protection Devices

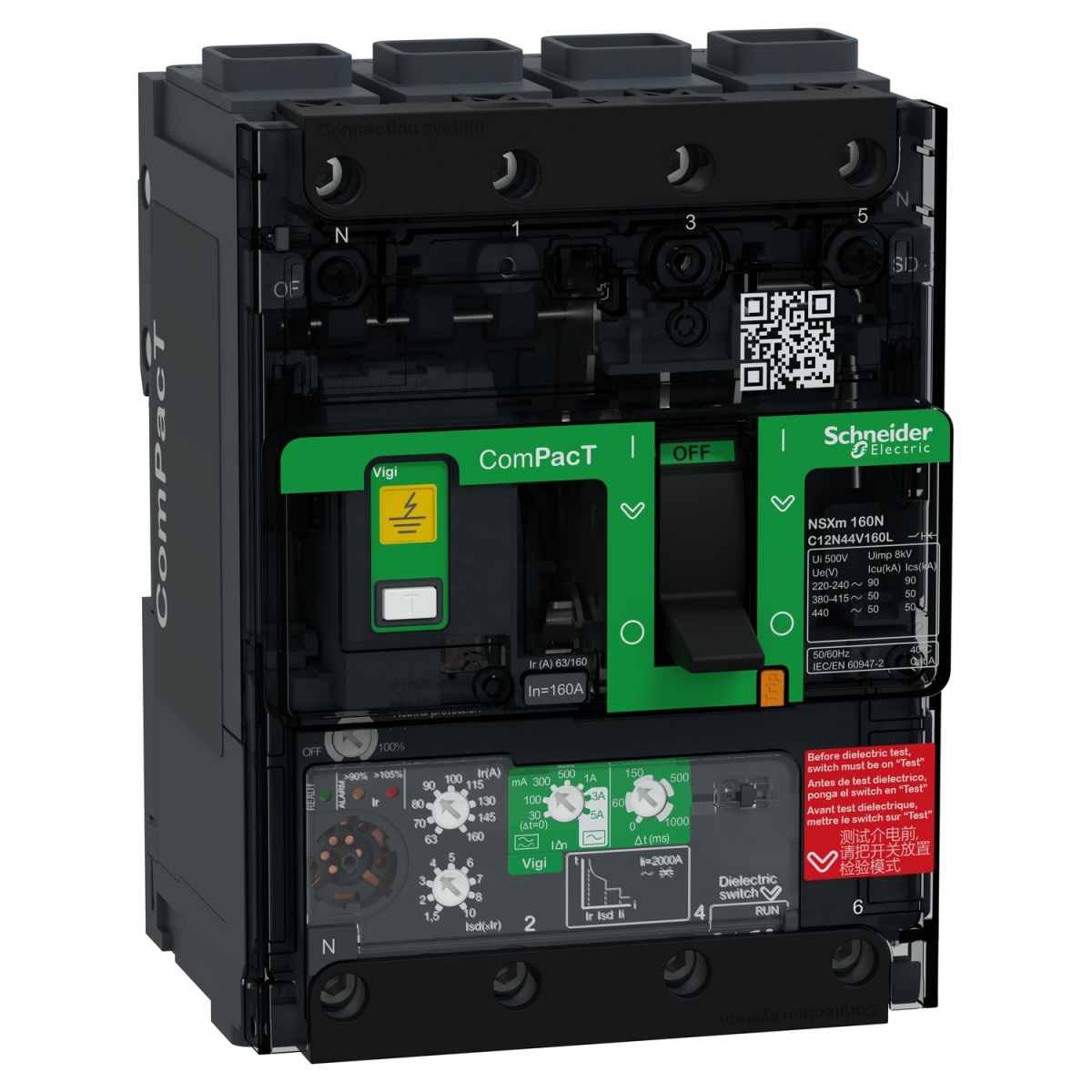

ComPacT DISJUNTOR NSXm160N 50kA CA 4P 160A 4,1 ELINK
Nortécnica Ref:
51C12N44V160L
EAN:
3606481992918
Description
Technical Information
Attributes
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
160
With integrated under voltage release
-
Número de polos
4
Overload release current setting
63
160
Number of auxiliary contacts as change-over contact
0
Rated voltage
220
440
Potência dissipada
49.2
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Wing knob
With switched-off indicator
Yes
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
50
Adjustment range short-term delayed short-circuit release
94.5
1600
Adjustment range undelayed short-circuit release
2000
2000
Suitable for DIN rail top hat rail mounting
Yes
Integrated earth fault protection
Yes
Motor drive optional
No
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
Schneider Electric Portugal
