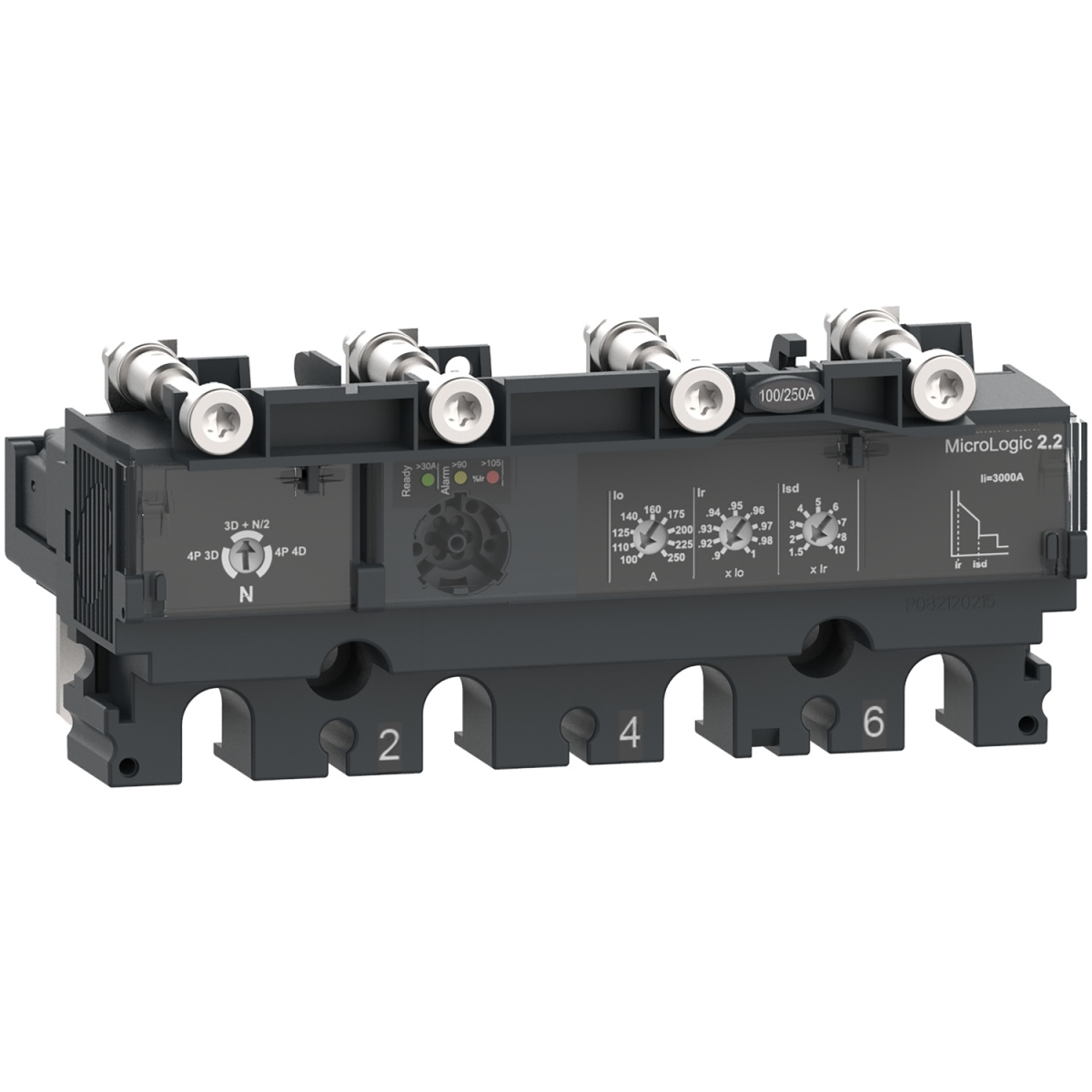

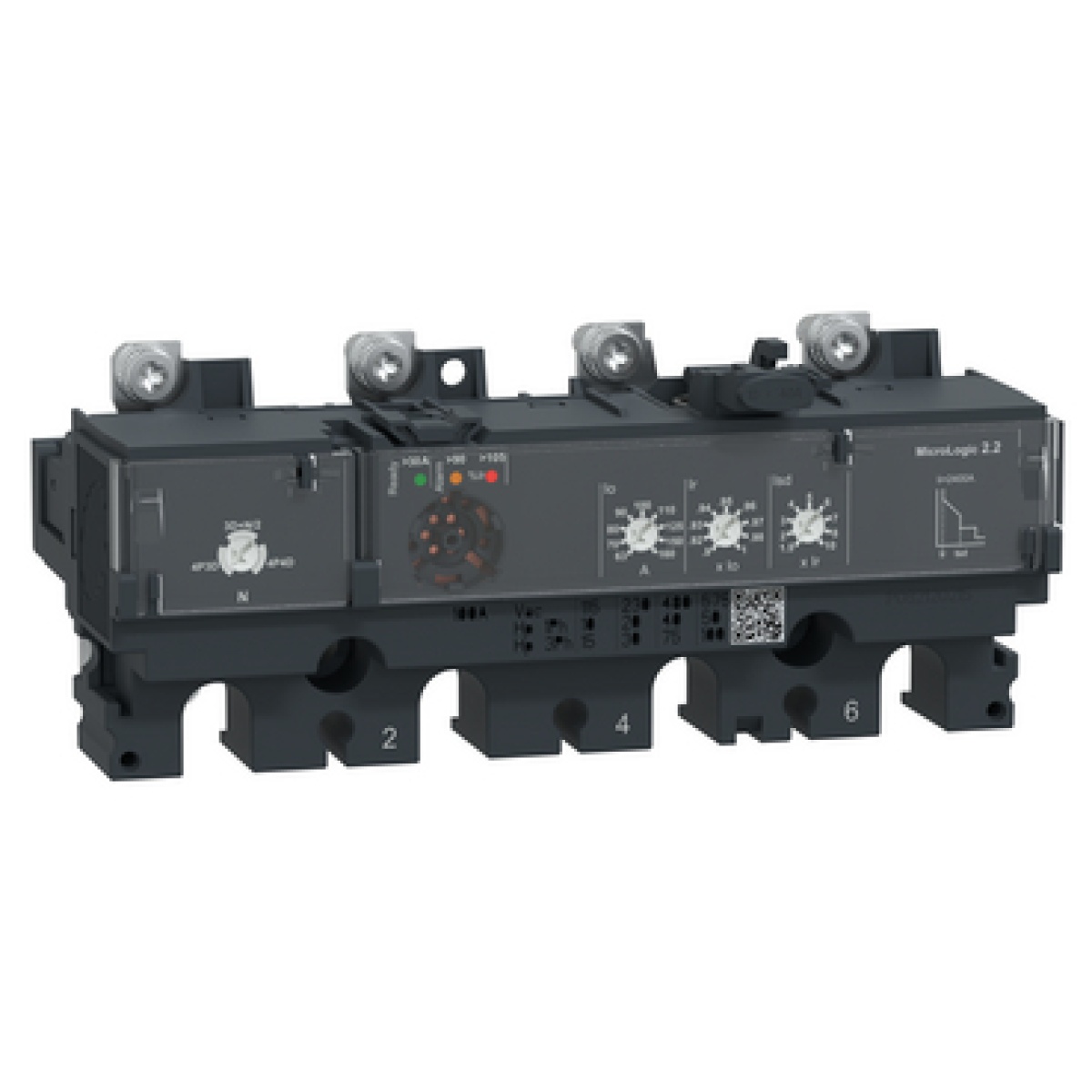

ComPacT DISPARADOR NSX160 CA 4P4D 160A 2,2
Cutting and Protection Devices
ComPacT DISPARADOR NSX160 CA 4P4D 160A 2,2
Nortécnica Ref:
51C1642D160
EAN:
3606482000070
Description
Technical Information
Attributes
Width
139.7
Height
59.7
Depth
89.4
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
160
Number of poles
4
Short-circuit release function
Delayed
Overload release current setting
63
160
Voltage type supply voltage
-
External power supply required
No
Número de contatos auxiliares como contato de comutação
0
Voltage type operating voltage
AC
With ground fault protection function
No
Rated switch current
160
Supply voltage AC 50 Hz
-
-
Supply voltage AC 60 Hz
-
-
Supply voltage DC
-
-
Operating voltage AC 50 Hz
690
690
Operating voltage AC 60 Hz
690
690
Operating voltage DC
-
-
Type of motor protection
Electronic release
Current setting undelayed short-circuit release
2400
2400
Current setting delayed short-circuit release
94.5
1600
Brands
SCHNEIDER
