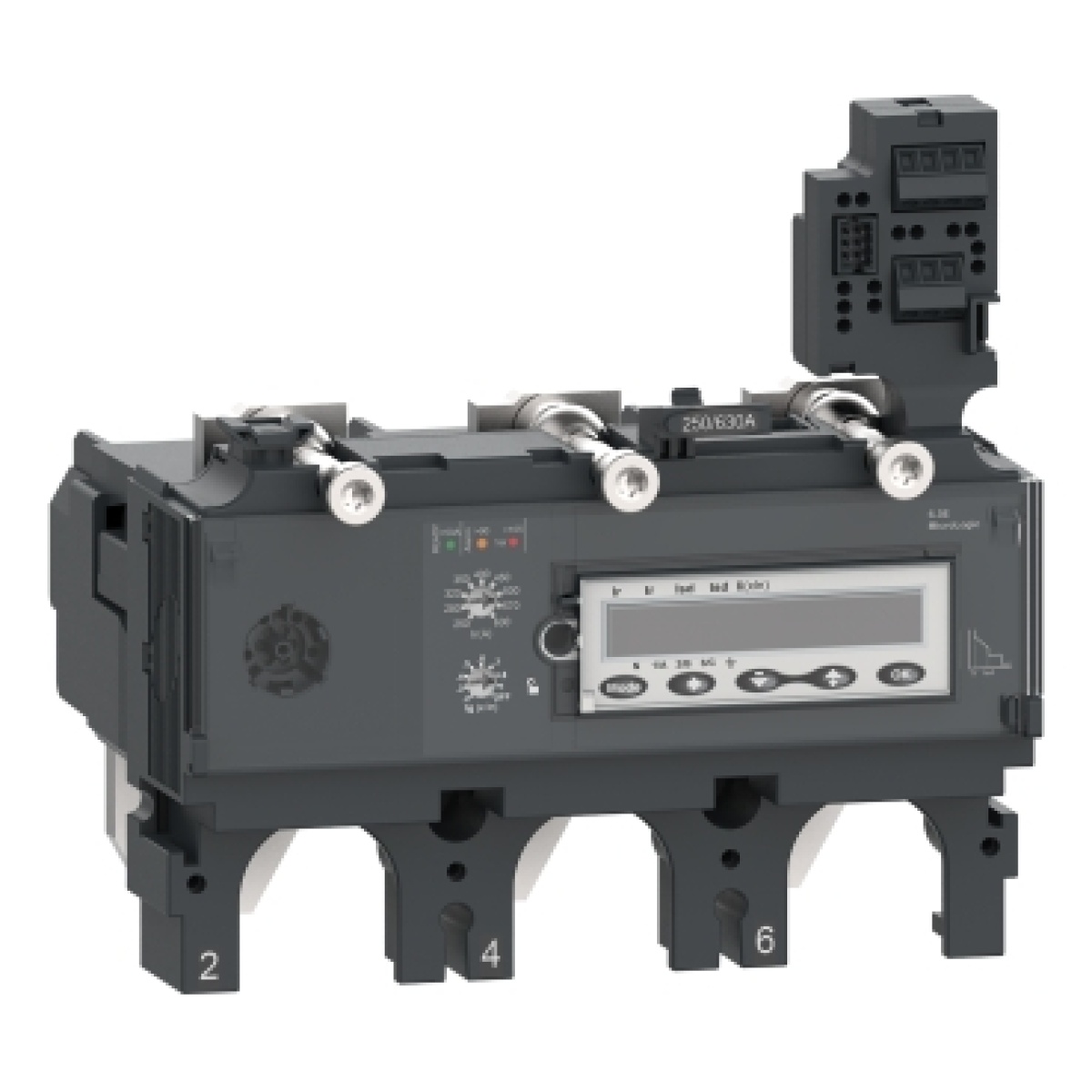

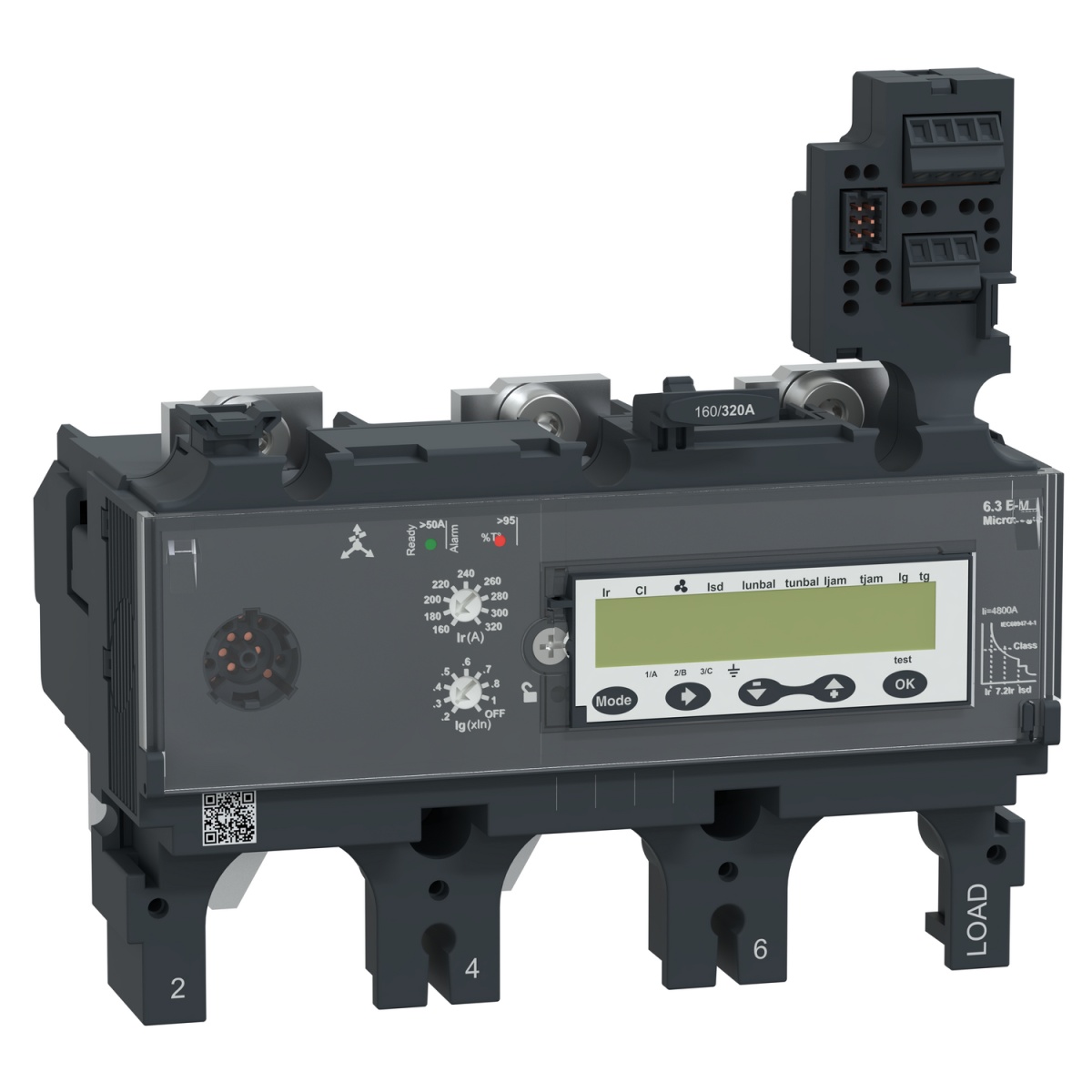

ComPacT DISPARADOR NSX400 CA 3P3D 320A 6.3EM
Cutting and Protection Devices
ComPacT DISPARADOR NSX400 CA 3P3D 320A 6.3EM
Nortécnica Ref:
EAN:
3606482003125
Description
Technical Information
Attributes
Largura
139.7
Altura
136.2
Profundidade
112.6
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
320
Número de polos
3
Short-circuit release function
Delayed
Overload release current setting
160
320
Voltage type supply voltage
DC
External power supply required
Yes
Number of auxiliary contacts as change-over contact
0
Voltage type operating voltage
AC
With ground fault protection function
Yes
Rated switch current
320
Supply voltage AC 50 Hz
-
-
Supply voltage AC 60 Hz
-
-
Supply voltage DC
24
24
Operating voltage AC 50 Hz
690
690
Operating voltage AC 60 Hz
690
690
Operating voltage DC
-
-
Type of motor protection
Electronic release
Current setting undelayed short-circuit release
4800
4800
Current setting delayed short-circuit release
800
4160
Brands
Schneider Electric Portugal
