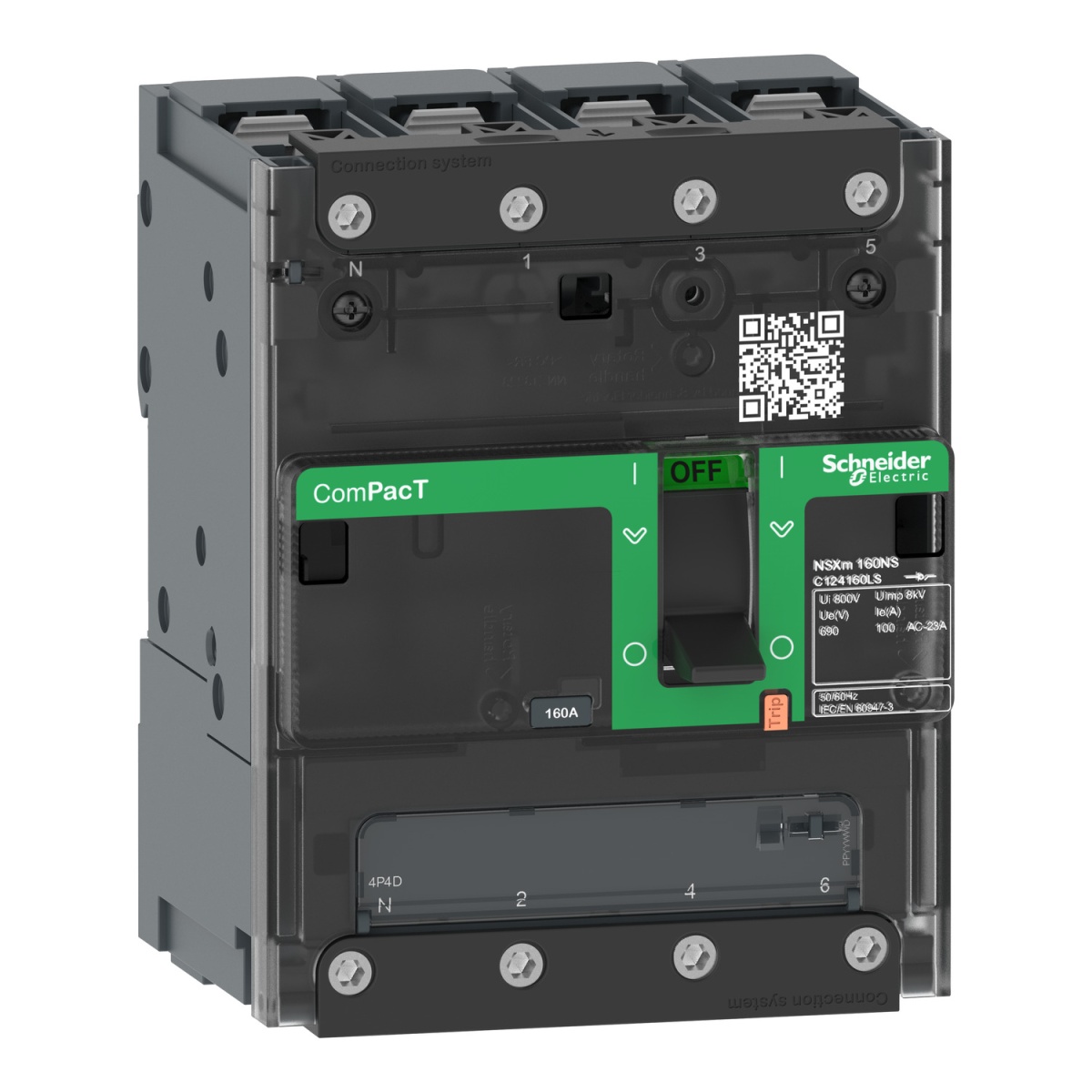

É um interruptor seccionador ComPacT NSXm NA 160A, categoria AC-22A/AC-23A. Foi concebido para garantir uma comutação de isolamento fiável. Oferece novas funcionalidades, como a tecnologia Everlink, a capacidade de montagem de calhas DIN e placas. Inclui novos auxiliares de tipo mola externamente visíveis. Esta versão de 4 polos é compatível com os acessórios e auxiliares dos disjuntores ComPacT NSXm. O ComPacT NSXm NA tem a mesma dimensão que os disjuntores ComPacT NSXm, 108 mm (L) x 137 mm (A) x 80 mm (P). Assegura a conformidade com as normas internacionais (IEC 60947/CCC/EAC) e especificações marítimas.
Cutting and Protection Devices
ComPacT INTERRUPTOR NSXm160NA CA 4P 160A PARAFUSO
Nortécnica Ref:
51C124160BS
EAN:
3606481995155
Description
Technical Information
Attributes
Largura
108
Altura
137
Profundidade
80
Housing colour
Grey
Rated operation power at AC-3, 400 V
-
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
160
Número de polos
4
Rated operating voltage
220
440
Conditioned rated short-circuit current Iq
-
Housing material
Plastic
Largura em número de módulos
-
Degree of protection IP front side
IP40
Number of auxiliary contacts as change-over contact
0
Number of switches
1
Interlockable
No
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Wing knob
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
-
Rated short-time withstand current lcw
1.5
Colour control element
Black
EF007243
Yes
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
440
Motor drive optional
No
Voltage release optional
Yes
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
-
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
160
Degree of protection NEMA
-
With pre-assembled cabling
No
Suitable for floor mounting
No
Brands
Schneider Electric Portugal
