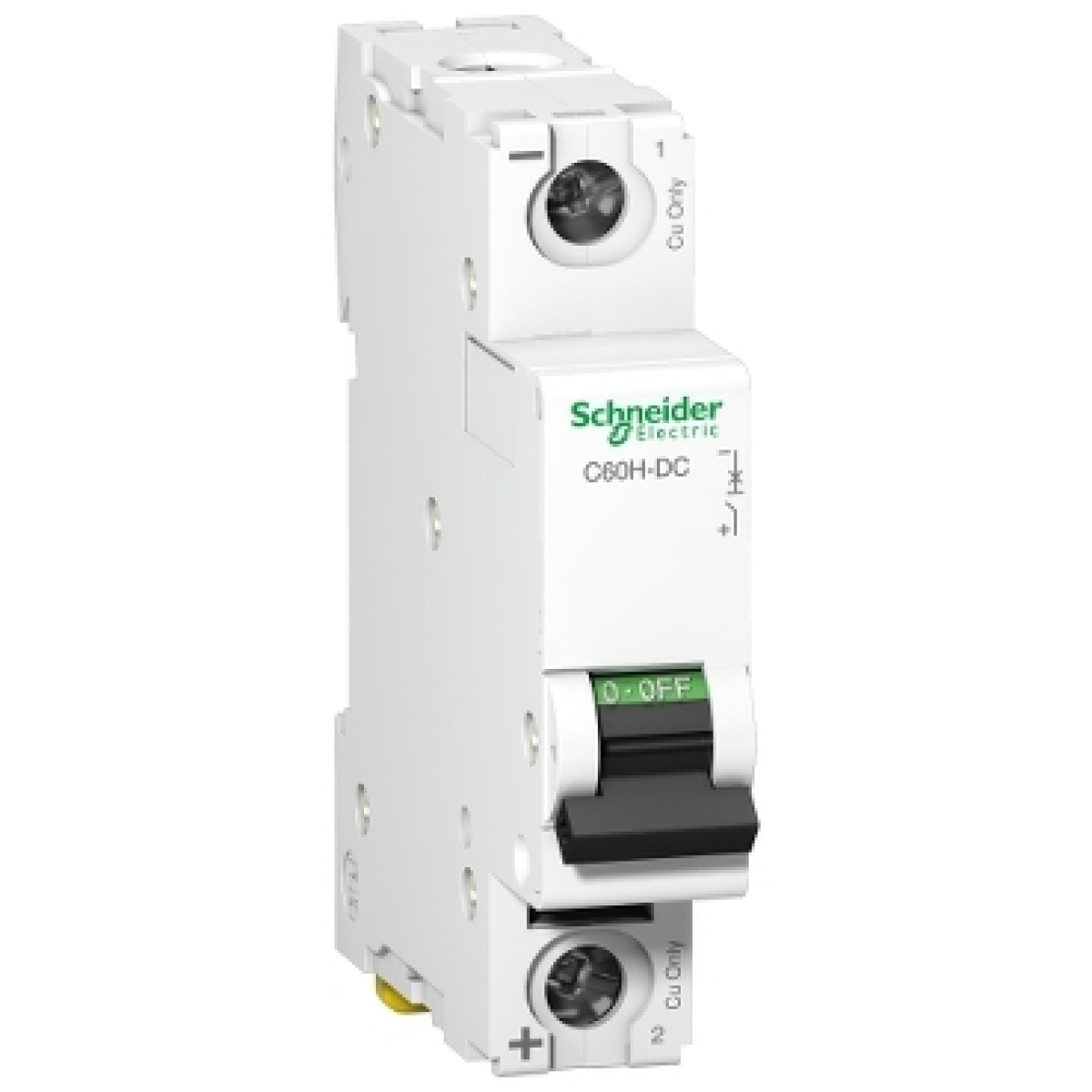

Disjuntor miniatura - C60H - 1 pólo - 32 A - Curva C
Cutting and Protection Devices
Disjuntor miniatura - C60H - 1 pólo - 32 A - Curva C
Nortécnica Ref:
51A9N61515
EAN:
3606480424168
Description
Technical Information
Attributes
Voltage type
DC
Built-in depth
44
Rated current
32
Rated voltage
220
Frequency
-
-
Release characteristic
C
Tensão nominal de isolamento Ui
500
Current limiting class
-
Overvoltage category
4
Pollution degree
3
Largura em número de módulos
2
Explosion-proof
No
Potência dissipada
3.5
Degree of protection IP
IP20
Number of protected poles
1
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
1
35
Connectable conductor cross section multi-wired
1
25
Ambient temperature during operating
-25
70
Flush-mounted installation
No
Additional equipment possible
Yes
Number of poles total
1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-
Rated impulse withstand voltage Uimp
6
Brands
Schneider Electric Portugal
