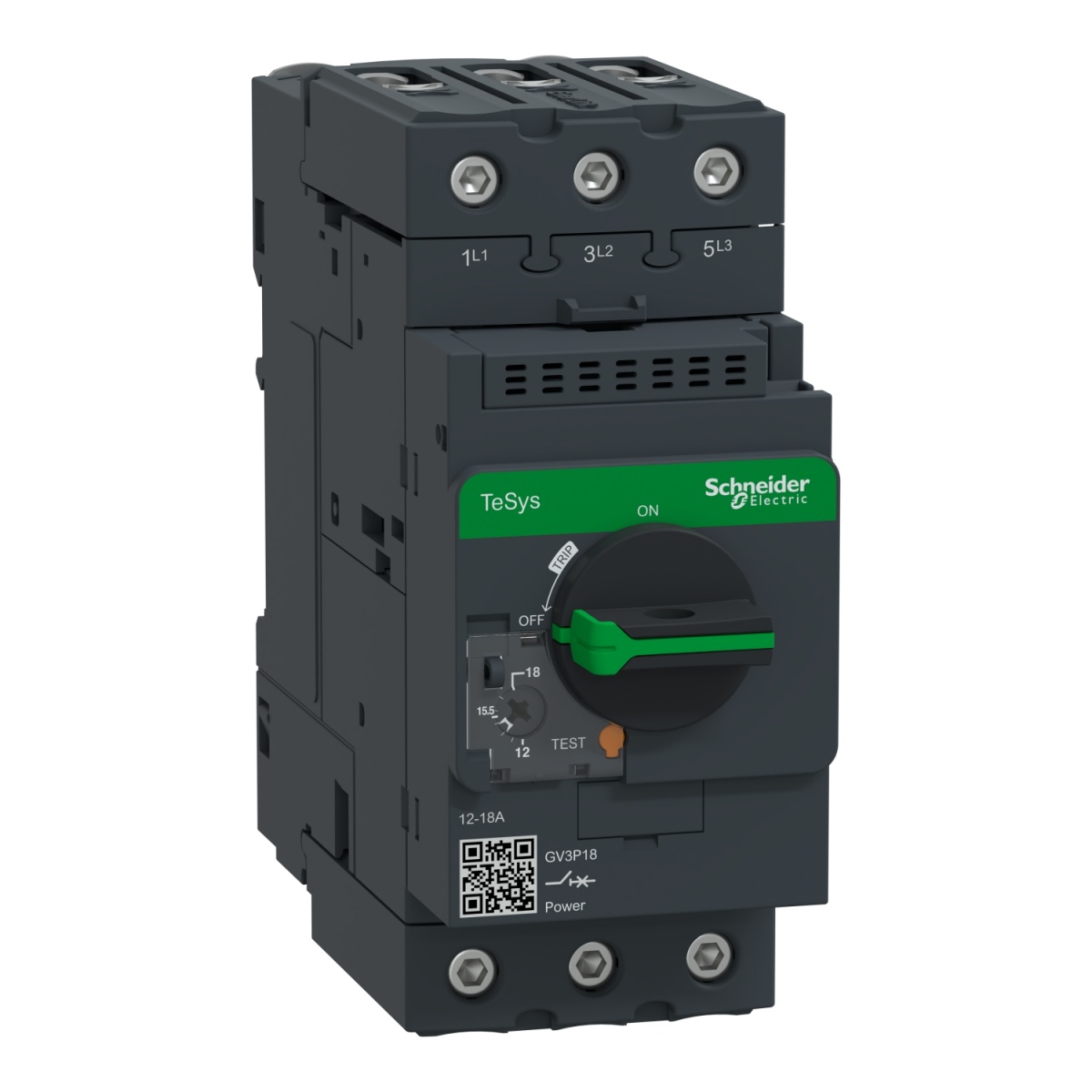

Disjuntor-motor magnetotérmico GV3 - 1218A
Cutting and Protection Devices
Disjuntor-motor magnetotérmico GV3 - 1218A
Nortécnica Ref:
EAN:
3389119405362
Description
Technical Information
Attributes
Width
55
Height
132
Depth
136
Rated operation power at AC-3, 400 V
7.5
With integrated auxiliary switch
No
Corrente permanente nominal Iu
18
With integrated under voltage release
No
Number of poles
3
Rated operating voltage
690
690
Overload release current setting
12
18
Power loss
8
Degree of protection IP
IP20
With thermal overload protection
Yes
Type of electrical connection of main circuit
Screw connection
Type of control element
Turn button
Switch off technique
Thermomagnetic
Rated operation power at AC-3, 230 V
4
Rated short-circuit breaking capacity Icu at 400 V, AC
100
Adjustment range undelayed short-circuit release
252
252
Phase failure sensitive
Yes
Device construction
Complete device in housing
Brands
SCHNEIDER
