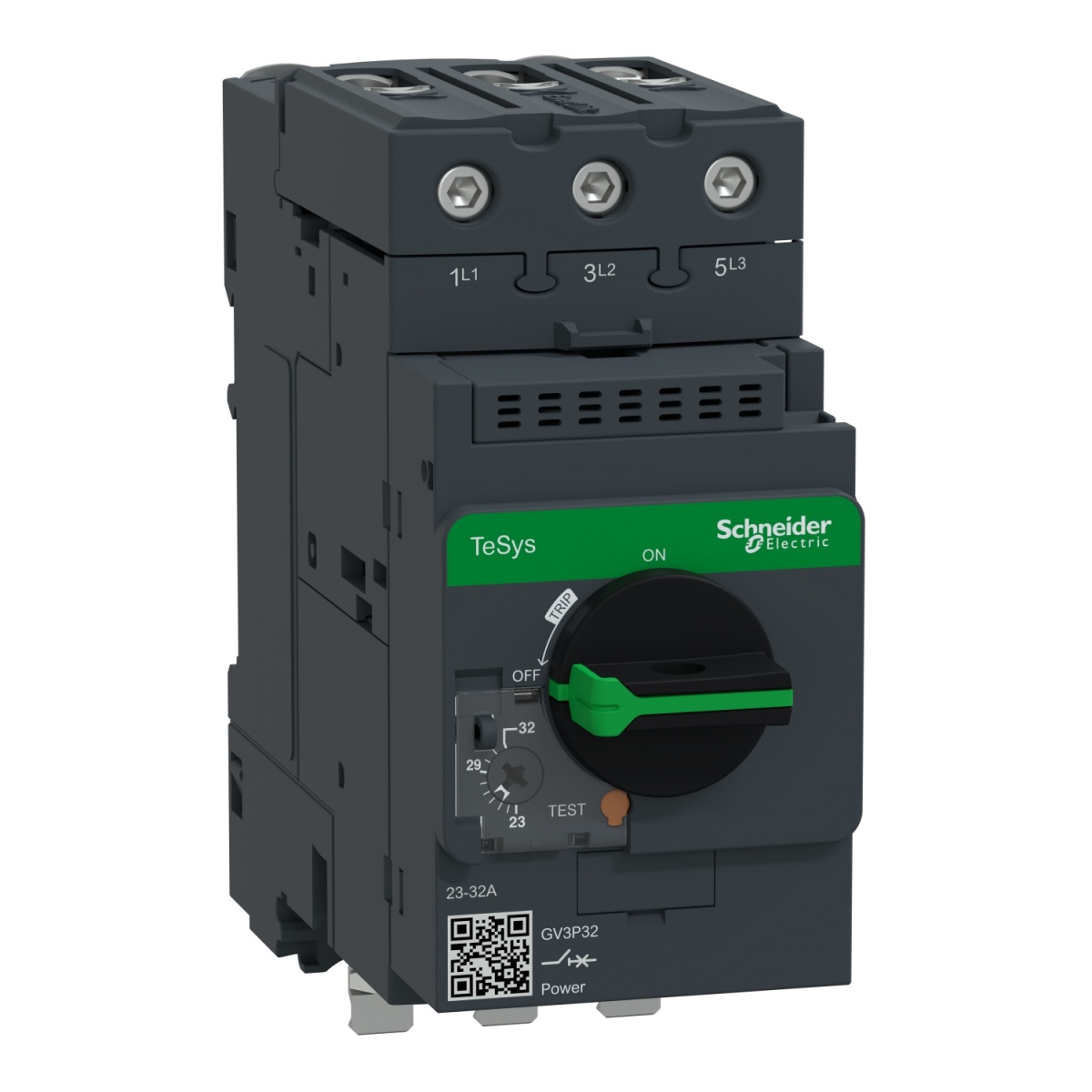

Disjuntor-motor magnetotérmico GV3 - 2332A sem Everlink
Cutting and Protection Devices
Disjuntor-motor magnetotérmico GV3 - 2332A sem Everlink
Nortécnica Ref:
EAN:
3389118348646
Description
Technical Information
Attributes
Width
55
Height
111
Depth
136
Rated operation power at AC-3, 400 V
15
With integrated auxiliary switch
No
Corrente permanente nominal Iu
32
With integrated under voltage release
No
Number of poles
3
Rated operating voltage
690
690
Overload release current setting
23
32
Power loss
8
Degree of protection IP
IP20
With thermal overload protection
Yes
Type of electrical connection of main circuit
Screw connection
Type of control element
Turn button
Switch off technique
Thermomagnetic
Rated operation power at AC-3, 230 V
7.5
Rated short-circuit breaking capacity Icu at 400 V, AC
100
Adjustment range undelayed short-circuit release
448
448
Phase failure sensitive
Yes
Device construction
Complete device in housing
Brands
SCHNEIDER
