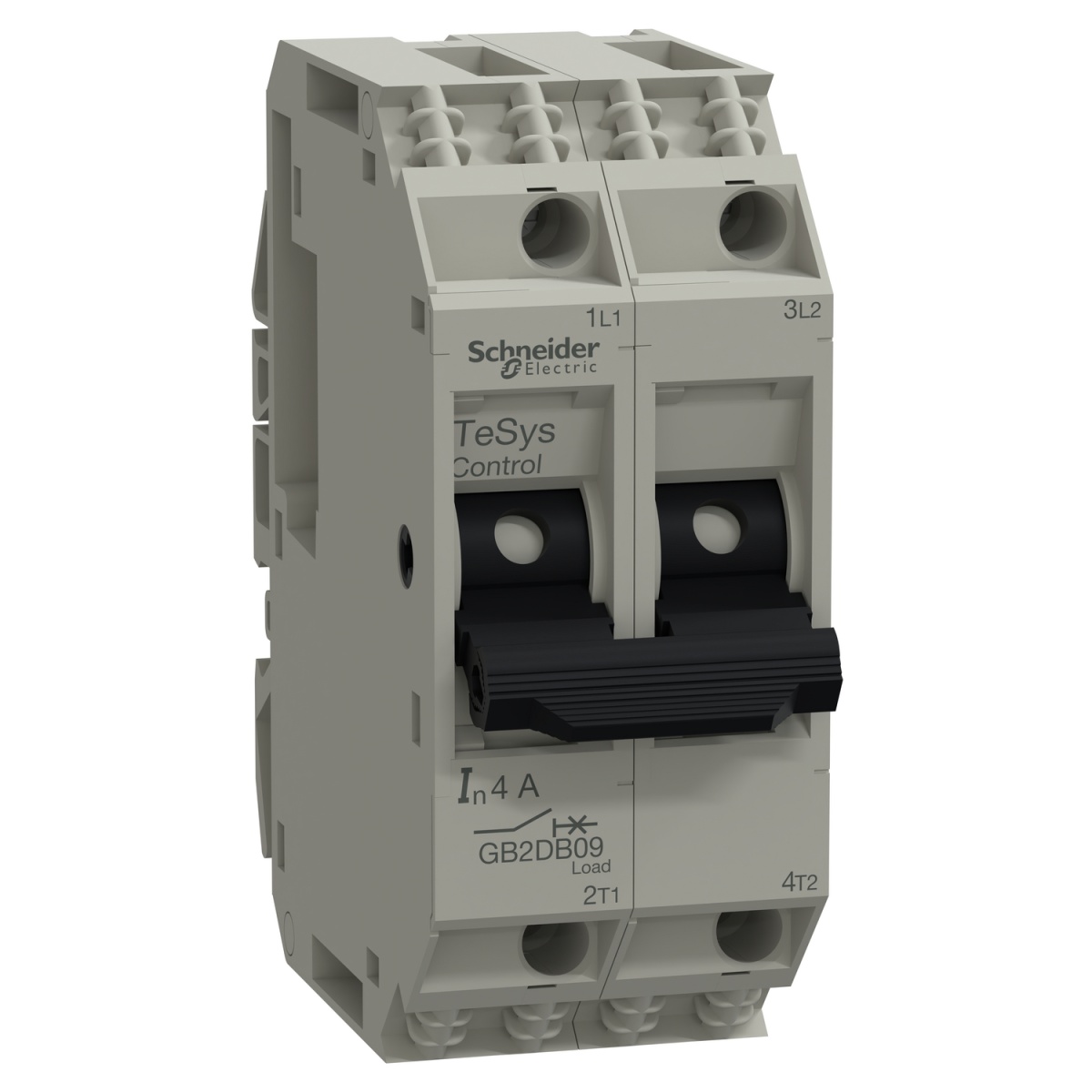

disjuntor TeSys para circuitos de comando - GB2-DB - 4 A - 2 pólos - 2d
Cutting and Protection Devices
disjuntor TeSys para circuitos de comando - GB2-DB - 4 A - 2 pólos - 2d
Nortécnica Ref:
52GB2DB09
EAN:
3389110865479
Description
Technical Information
Attributes
Voltage type
AC
Built-in depth
78
Rated current
4
EF000228
415
Frequency
50
60
Release characteristic
Other
Rated insulation voltage Ui
415
Current limiting class
3
Overvoltage category
3
Pollution degree
2
Width in number of modular spacings
2
Explosion-proof
No
Power loss
-
Degree of protection IP
IP20
Number of protected poles
2
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
0.75
6
Connectable conductor cross section multi-wired
0.75
4
Ambient temperature during operating
-20
60
Flush-mounted installation
No
Additional equipment possible
No
Number of poles total
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
3
Rated impulse withstand voltage Uimp
4
Brands
SCHNEIDER
