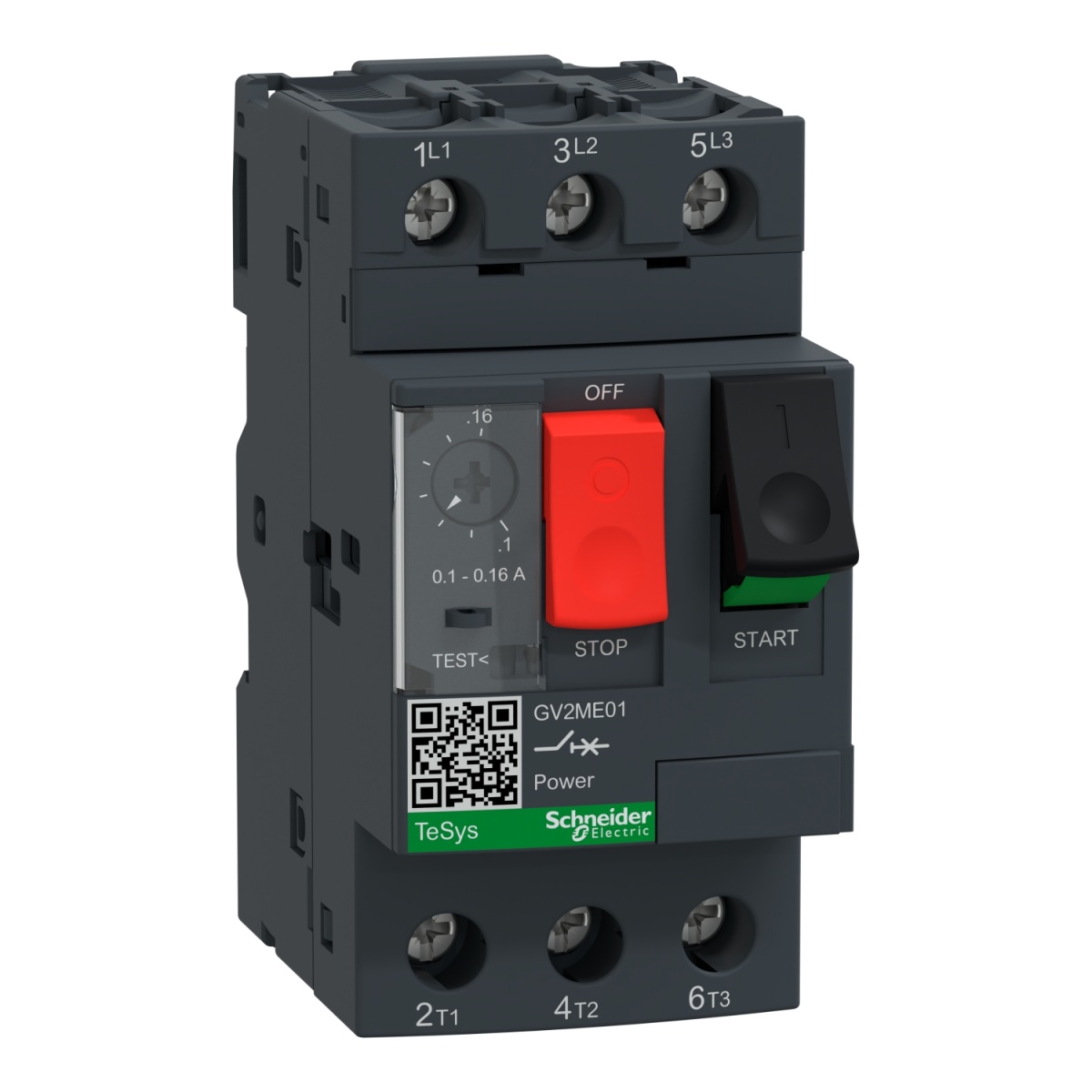

Disjuntores de motor magnetotérmicos
Cutting and Protection Devices
Disjuntores de motor magnetotérmicos
Nortécnica Ref:
52GV2ME01
EAN:
3389110342925
Description
Technical Information
Attributes
Width
44.5
Height
89
Depth
78.2
Rated operation power at AC-3, 400 V
0.037
With integrated auxiliary switch
No
Corrente permanente nominal Iu
0.16
With integrated under voltage release
No
Number of poles
3
Rated operating voltage
690
690
Overload release current setting
0.1
0.16
Power loss
2.5
Degree of protection IP
IP20
With thermal overload protection
Yes
Type of electrical connection of main circuit
Screw connection
Type of control element
Push button
Switch off technique
Thermomagnetic
Rated operation power at AC-3, 230 V
0.018
Rated short-circuit breaking capacity Icu at 400 V, AC
100
Adjustment range undelayed short-circuit release
1.5
1.5
Phase failure sensitive
Yes
Device construction
Complete device in housing
Brands
SCHNEIDER
