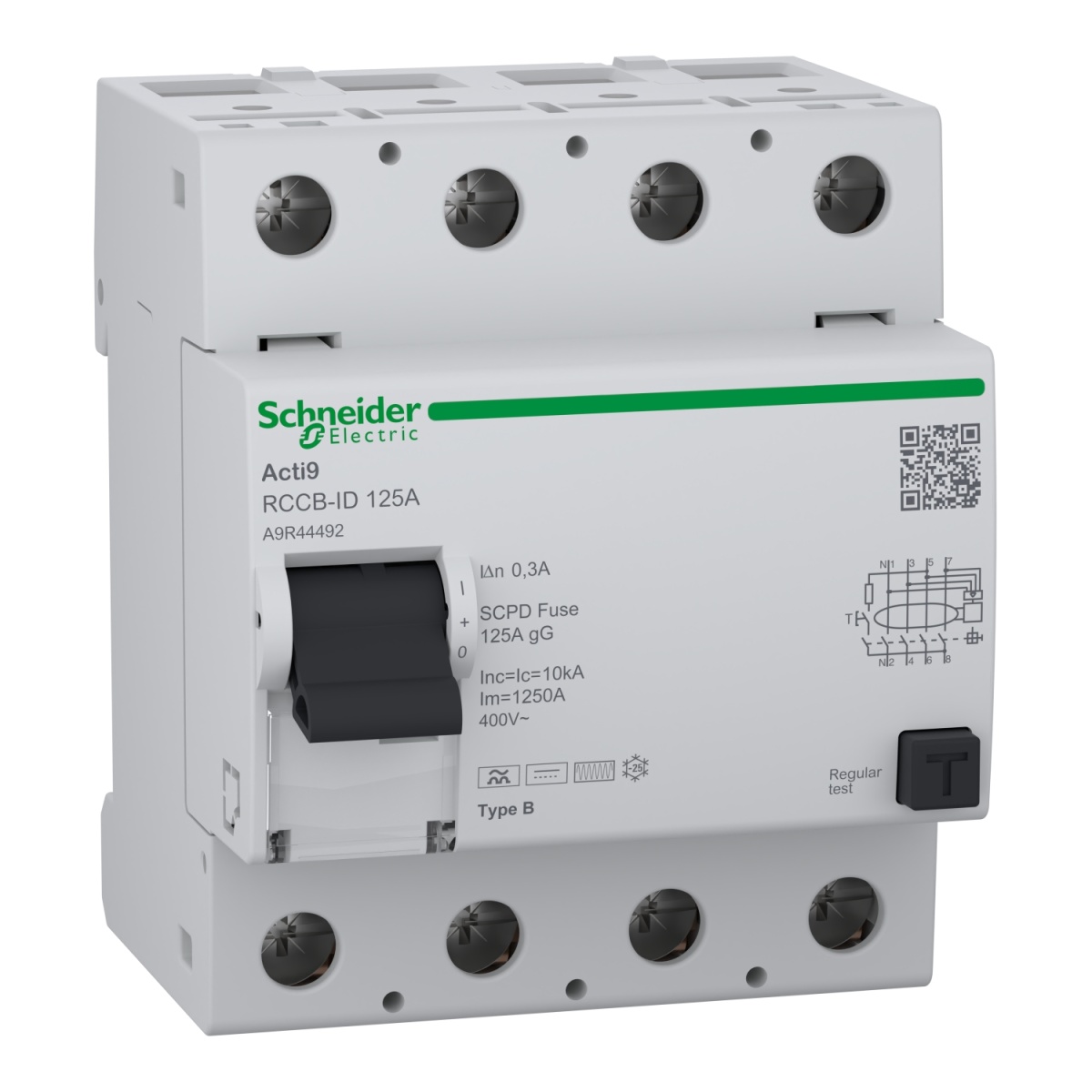

Interruptor diferencial 4P 125A 300mA classe B
Cutting and Protection Devices
Interruptor diferencial 4P 125A 300mA classe B
Nortécnica Ref:
EAN:
3606486869079
Description
Technical Information
Attributes
Mounting method
DIN rail
Colour
White
Voltage type
AC
Built-in depth
44
Rated current
125
EF000228
400
Rated insulation voltage Ui
400
Number of poles
4
Rated fault current
0.3
Leakage current type
B
Selective protection
No
Short-circuit breaking capacity Icw
-
Surge current capacity
3
Pollution degree
3
Width in number of modular spacings
4
Short-time delayed tripping
No
RAL-number similar
9003
Explosion-proof
No
Power loss
11.2
Frequency
50 Hz
Degree of protection IP
IP20
Connectable conductor cross section solid-core
1.5
50
Connectable conductor cross section multi-wired
1.5
35
With interlocking device
Yes
Ambient temperature during operating
-25
40
Additional equipment possible
Yes
Device width
72
Device height
86
Device depth
76
Rated impulse withstand voltage Uimp
4
Type of personal protection PRCD
-
Brands
SCHNEIDER
