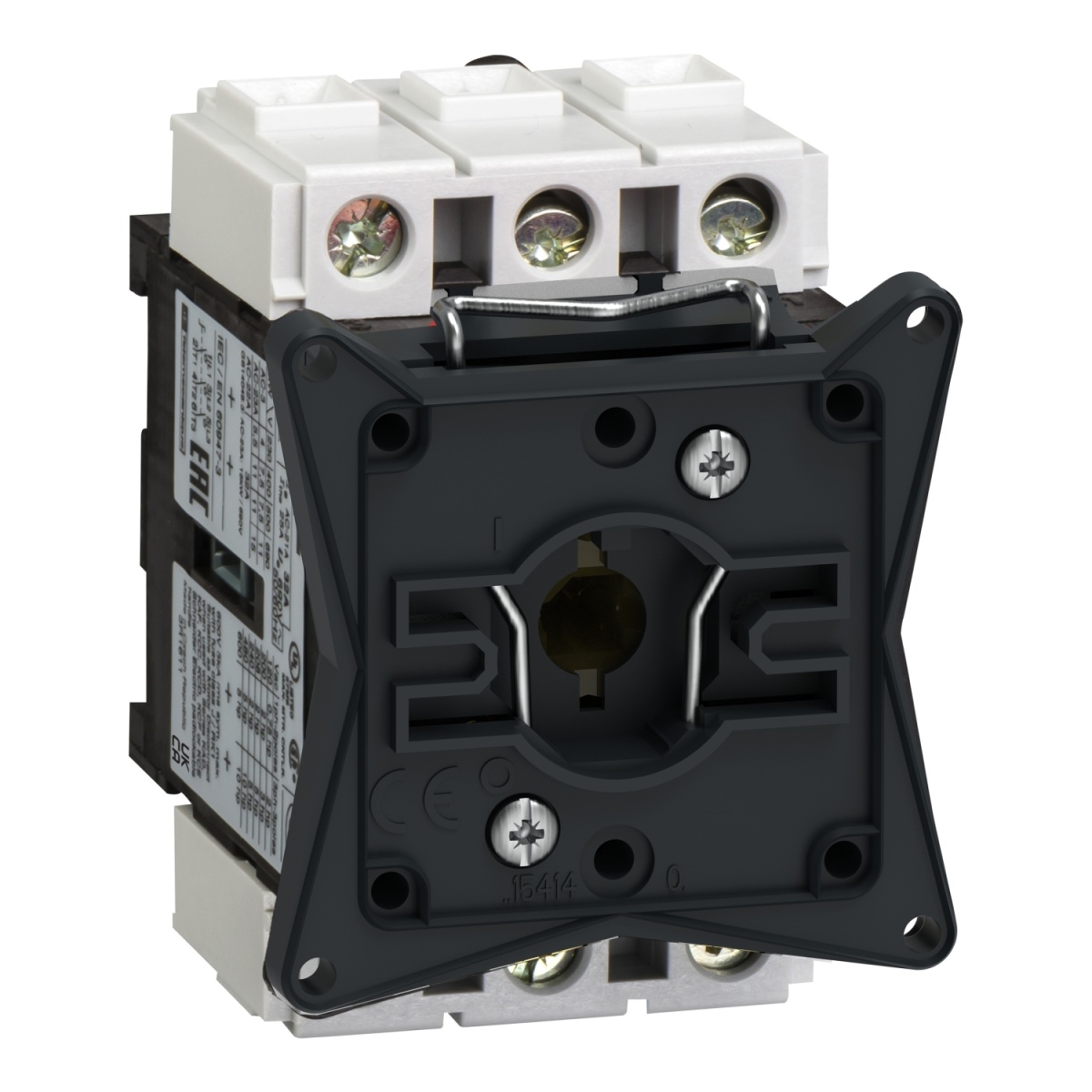

Interruptor seccionador 3P 20A
Cutting and Protection Devices
Interruptor seccionador 3P 20A
Nortécnica Ref:
52V01
EAN:
3389110448894
Description
Technical Information
Attributes
Width
55
Height
74
Depth
60
Rated operation power at AC-3, 400 V
4
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
20
Number of poles
3
Rated operating voltage
690
690
Corrente condicional nominal de curto-circuito Iq
10
Width in number of modular spacings
-
Degree of protection IP, front side
IP20
Número de contatos auxiliares como contato de comutação
0
Number of switches
1
Interlockable
No
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
-
Version as main switch
No
Version as safety switch
No
Version as maintenance-service switch
No
Rated operation power at AC-23, 400 V
5.5
Corrente nominal suportável lcw atual
0.3
Colour control element
-
EF007243
No
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
Yes
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
690
Motor drive optional
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
20
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
11
Degree of protection NEMA
-
With pre-assembled cabling
No
Brands
SCHNEIDER
