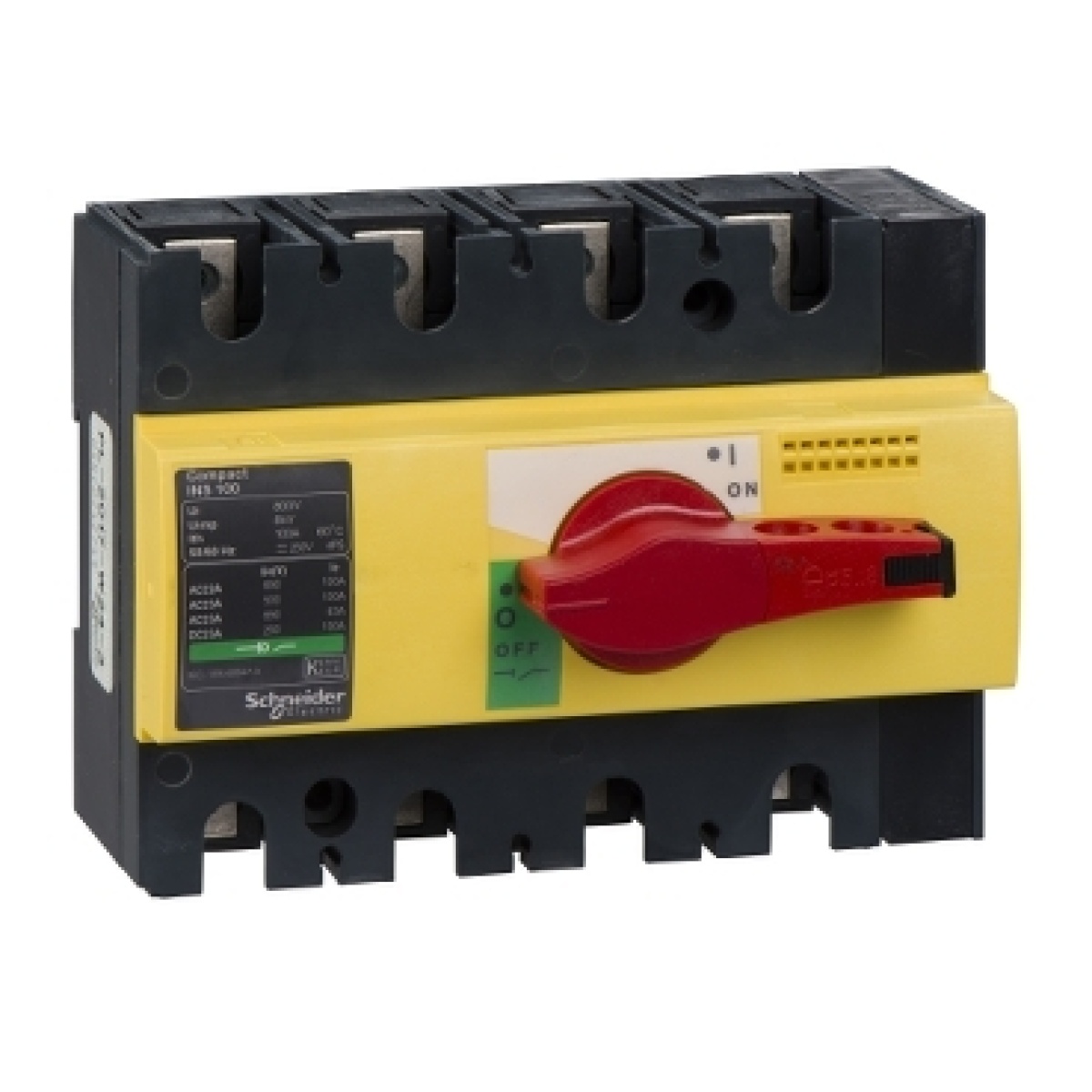

interruptor seccionador Interpact INS100 - 4 pólos - 100 A
Cutting and Protection Devices
interruptor seccionador Interpact INS100 - 4 pólos - 100 A
Nortécnica Ref:
51028925
EAN:
3303430289258
Description
Technical Information
Attributes
Largura
90
Altura
85
Profundidade
62.5
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
100
Número de polos
4
Rated operating voltage
690
690
Conditioned rated short-circuit current Iq
65
Largura em número de módulos
-
Degree of protection IP, front side
IP40
Número de contatos auxiliares como contato de comutação
2
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
Yes
Type of control element
Long rotary handle
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
45
Rated short-time withstand current lcw
5.5
Colour control element
Red
EF007243
Yes
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
Yes
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
690
Motor drive optional
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
-
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
100
Degree of protection NEMA
-
With pre-assembled cabling
-
Brands
SCHNEIDER
