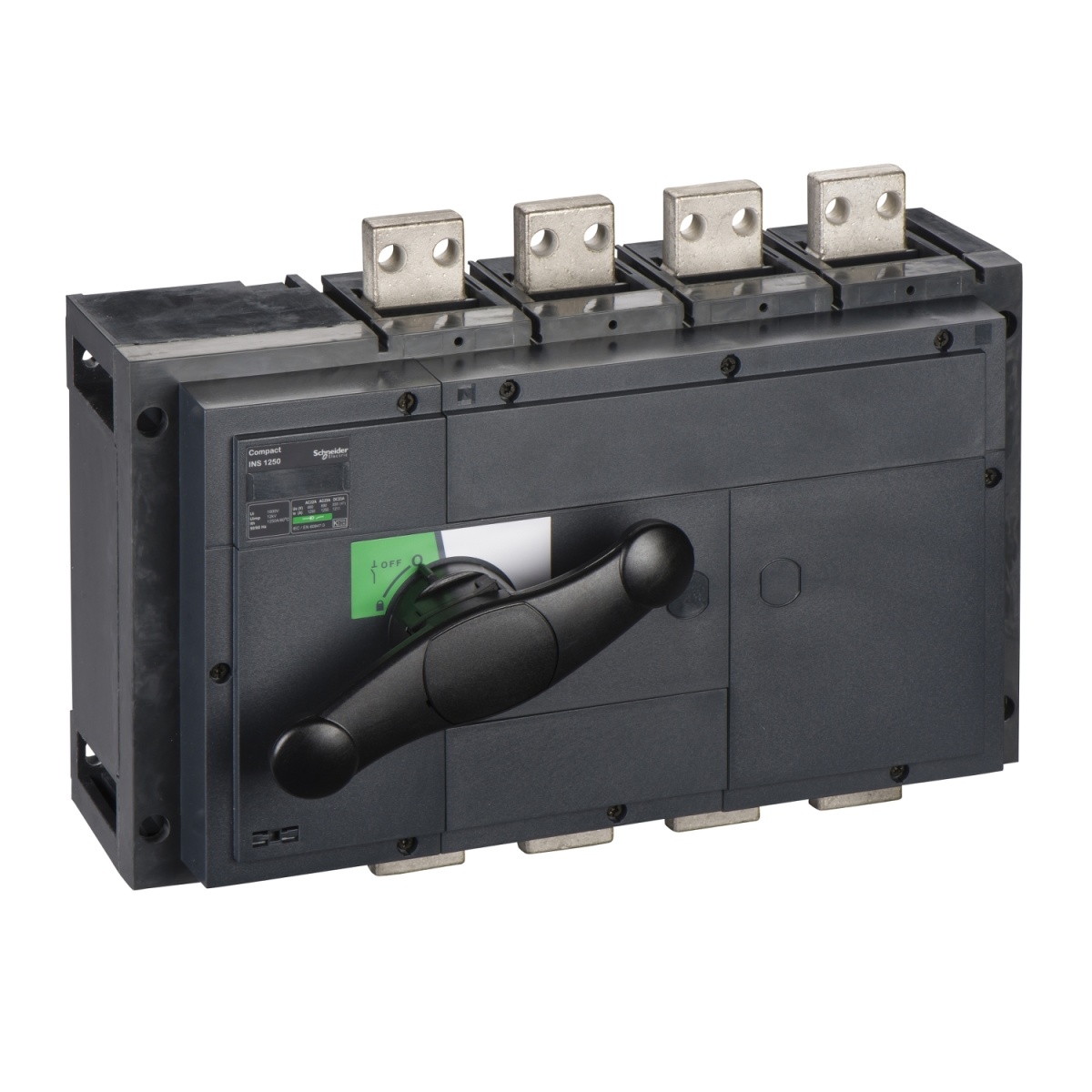

interruptor seccionador Interpact INS1250 - 1250 A - 4 pólos
Cutting and Protection Devices
interruptor seccionador Interpact INS1250 - 1250 A - 4 pólos
Nortécnica Ref:
51031335
EAN:
3303430313359
Description
Technical Information
Attributes
Largura
410
Altura
300
Profundidade
146.5
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
1250
Número de polos
4
Rated operating voltage
690
690
Corrente condicional nominal de curto-circuito Iq
-
Largura em número de módulos
-
Degree of protection IP, front side
IP40
Número de contatos auxiliares como contato de comutação
4
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Long rotary handle
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
710
Corrente nominal suportável lcw atual
50
Colour control element
Black
EF007243
Yes
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
Yes
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
690
Motor drive optional
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
1250
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
1250
Degree of protection NEMA
-
With pre-assembled cabling
-
Brands
SCHNEIDER
