Este Compact INS2500 é um interruptor-seccionador não automático de 4 polos com manípulo rotativo preto. É adequado para isolamento com indicação de contacto positivo, como definido pelas normas IEC 60947-1 e IEC 60947-3. A corrente operacional é de 4000 A a 415V CA nas categorias AC21A, AC22A e AC23A. A tensão nominal é de 690 V CA 50/60 Hz ou 250 V CC. O manípulo rotativo preto foi concebido para oferecer um funcionamento fácil e um alto desempenho na interrupção de correntes. O Compact INS4000 é um dispositivo frontal com nível de isolamento de classe II de acordo com a norma IEC 60664.
Cutting and Protection Devices

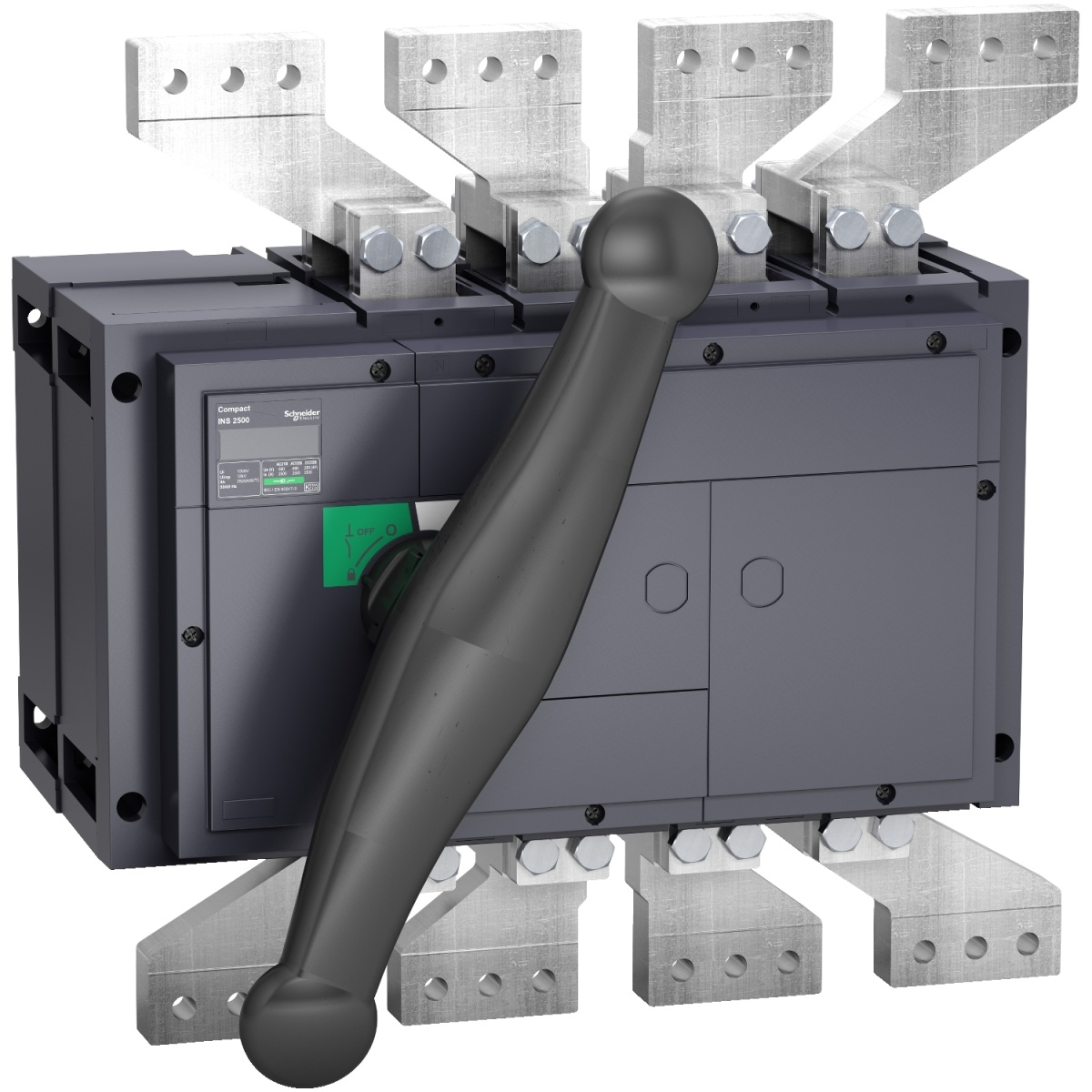

interruptor seccionador Interpact INS2500 - 2500 A - 4 pólos
Nortécnica Ref:
51031341
EAN:
3303430313410
Description
Technical Information
Attributes
Largura
462.5
Altura
440
Profundidade
227.5
Housing colour
Black
Rated operation power at AC-3, 400 V
-
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
2500
Número de polos
4
Rated operating voltage
690
690
Conditioned rated short-circuit current Iq
-
Housing material
Plastic
Largura em número de módulos
-
Degree of protection IP front side
IP40
Number of auxiliary contacts as change-over contact
4
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Long rotary handle
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
-
Rated short-time withstand current lcw
50
Colour control element
Black
EF007243
Yes
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
Yes
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
690
Motor drive optional
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
2500
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
-
Degree of protection NEMA
-
With pre-assembled cabling
No
Suitable for floor mounting
No
