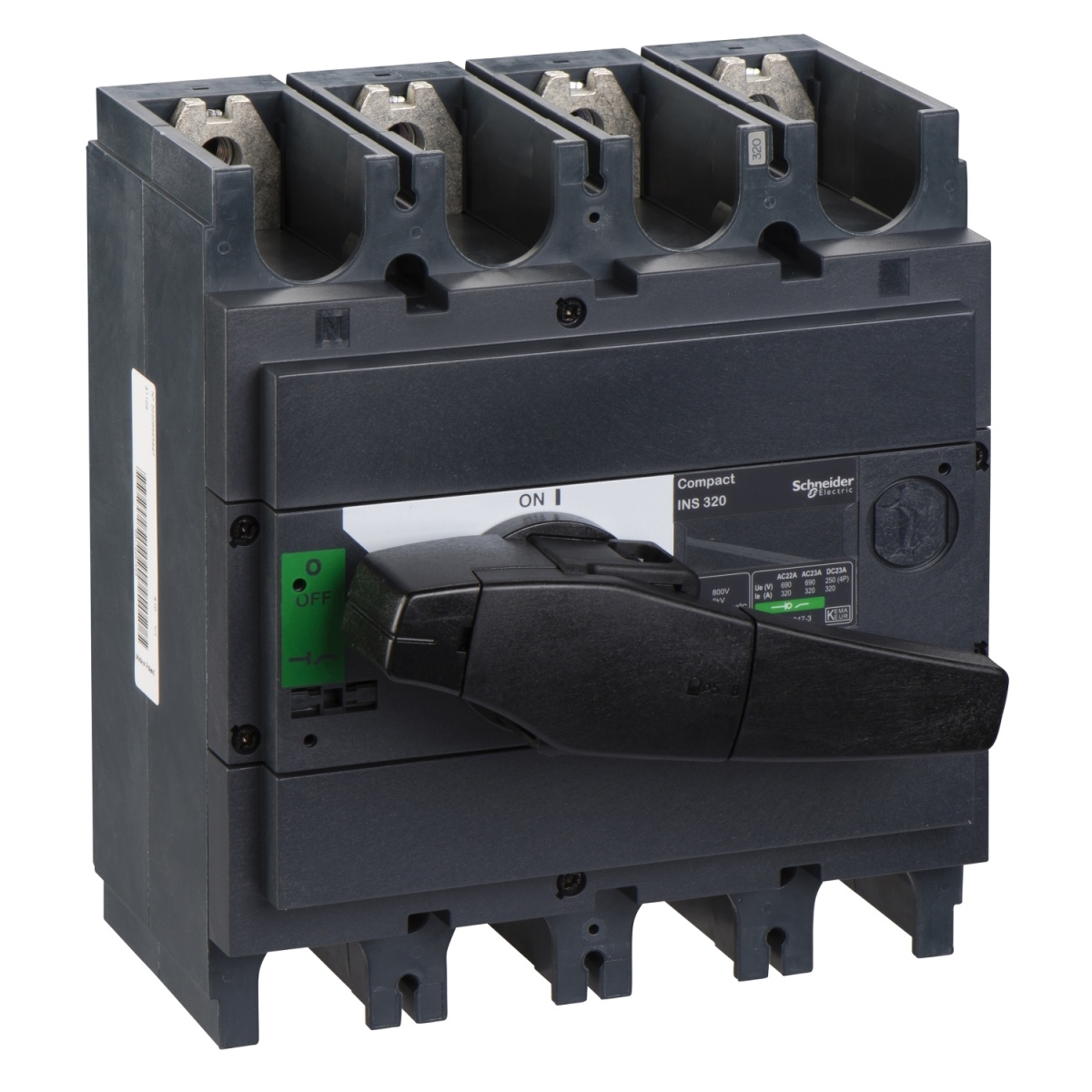

interruptor seccionador Interpact INS320 - 320 A - 4 pólos
Cutting and Protection Devices
interruptor seccionador Interpact INS320 - 320 A - 4 pólos
Nortécnica Ref:
51031109
EAN:
3303430311096
Description
Technical Information
Attributes
Width
185
Height
205
Depth
130
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
320
Number of poles
4
Rated operating voltage
690
690
Corrente condicional nominal de curto-circuito Iq
-
Width in number of modular spacings
-
Degree of protection IP, front side
IP40
Número de contatos auxiliares como contato de comutação
4
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Long rotary handle
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
160
Corrente nominal suportável lcw atual
20
Colour control element
Black
EF007243
Yes
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
Yes
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
690
Motor drive optional
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
-
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
320
Degree of protection NEMA
-
With pre-assembled cabling
-
Brands
SCHNEIDER
