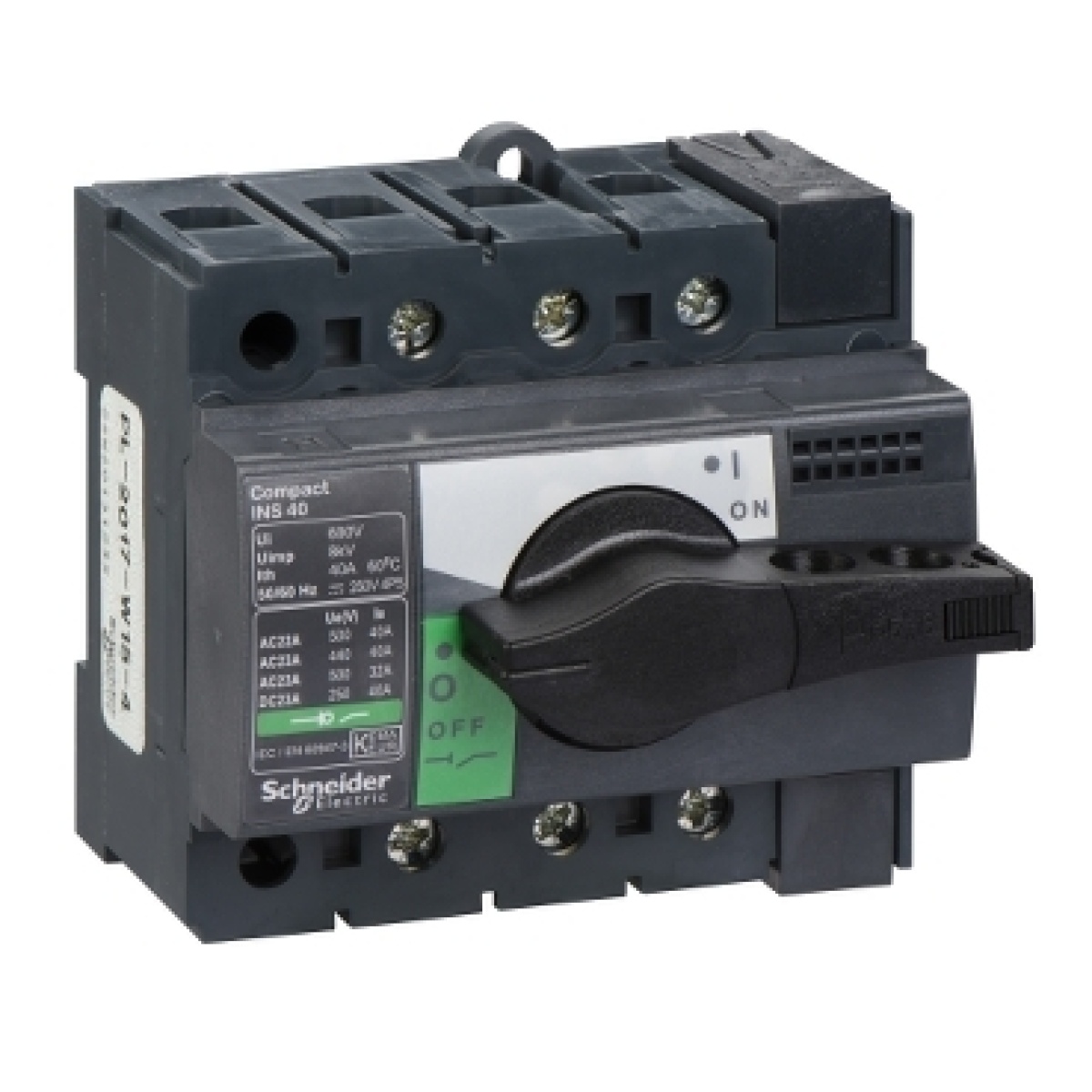

interruptor seccionador Interpact INS40 - 3 pólos - 40 A
Cutting and Protection Devices
interruptor seccionador Interpact INS40 - 3 pólos - 40 A
Nortécnica Ref:
51028900
EAN:
3303430289005
Description
Technical Information
Attributes
Width
90
Height
85
Depth
62.5
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
40
Number of poles
3
Rated operating voltage
690
690
Corrente condicional nominal de curto-circuito Iq
36
Width in number of modular spacings
-
Degree of protection IP, front side
IP40
Número de contatos auxiliares como contato de comutação
2
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Long rotary handle
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
20
Corrente nominal suportável lcw atual
3
Colour control element
Black
EF007243
Yes
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
Yes
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
500
Motor drive optional
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
-
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
40
Degree of protection NEMA
-
With pre-assembled cabling
-
Brands
SCHNEIDER
