Arrancador TeSys em caixa com interruptor-seccionador, 3 pólos, Ithe 10 A 690 V, para comutação principal em aplicações de motores até 4 kW/400 V AC‑23. Quadro com proteção IP65, equipado com um comando rotativo preto e um espelho frontal preto, com cadeado (cadeados não incluídos). Inclui um corpo de interruptor Vario de 3 pólos V02 com 2 possíveis acessórios de módulos adicionais. Quadro para montagem à superfície com fixação por parafusos, 2 orifícios para passagem de cabos em cima e em baixo, tampa vedável. Está em conformidade com a norma IEC 60947-4-1, compatível com o ambiente (RoHS/REACh).
Cutting and Protection Devices

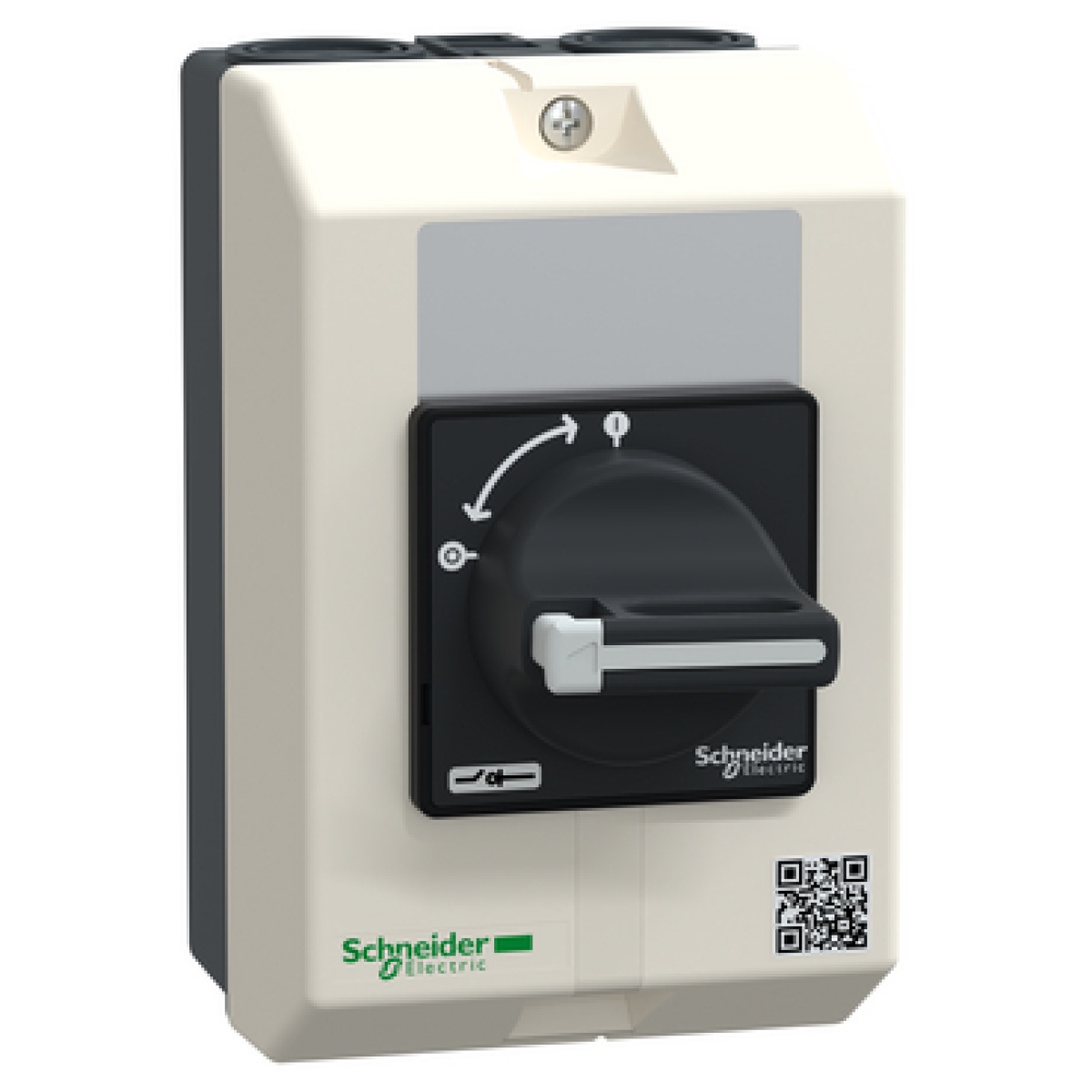

interruptor seccionador principal em caixa 3P 10A
Nortécnica Ref:
52VBF02GE
EAN:
3389110201024
Description
Technical Information
Attributes
Largura
90
Altura
146
Profundidade
131
Housing colour
Grey
Rated operation power at AC-3, 400 V
3
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
10
Número de polos
3
Rated operating voltage
690
690
Conditioned rated short-circuit current Iq
10
Housing material
Plastic
Largura em número de módulos
-
Degree of protection IP front side
IP65
Number of auxiliary contacts as change-over contact
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Short rotary handle
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
4
Rated short-time withstand current lcw
0.3
Colour control element
Black
EF007243
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
690
Motor drive optional
No
Voltage release optional
No
Device construction
Complete device in housing
Rated permanent current at AC-21, 400 V
10
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
8.1
Degree of protection NEMA
-
With pre-assembled cabling
No
Suitable for floor mounting
No
Brands
Schneider Electric Portugal
