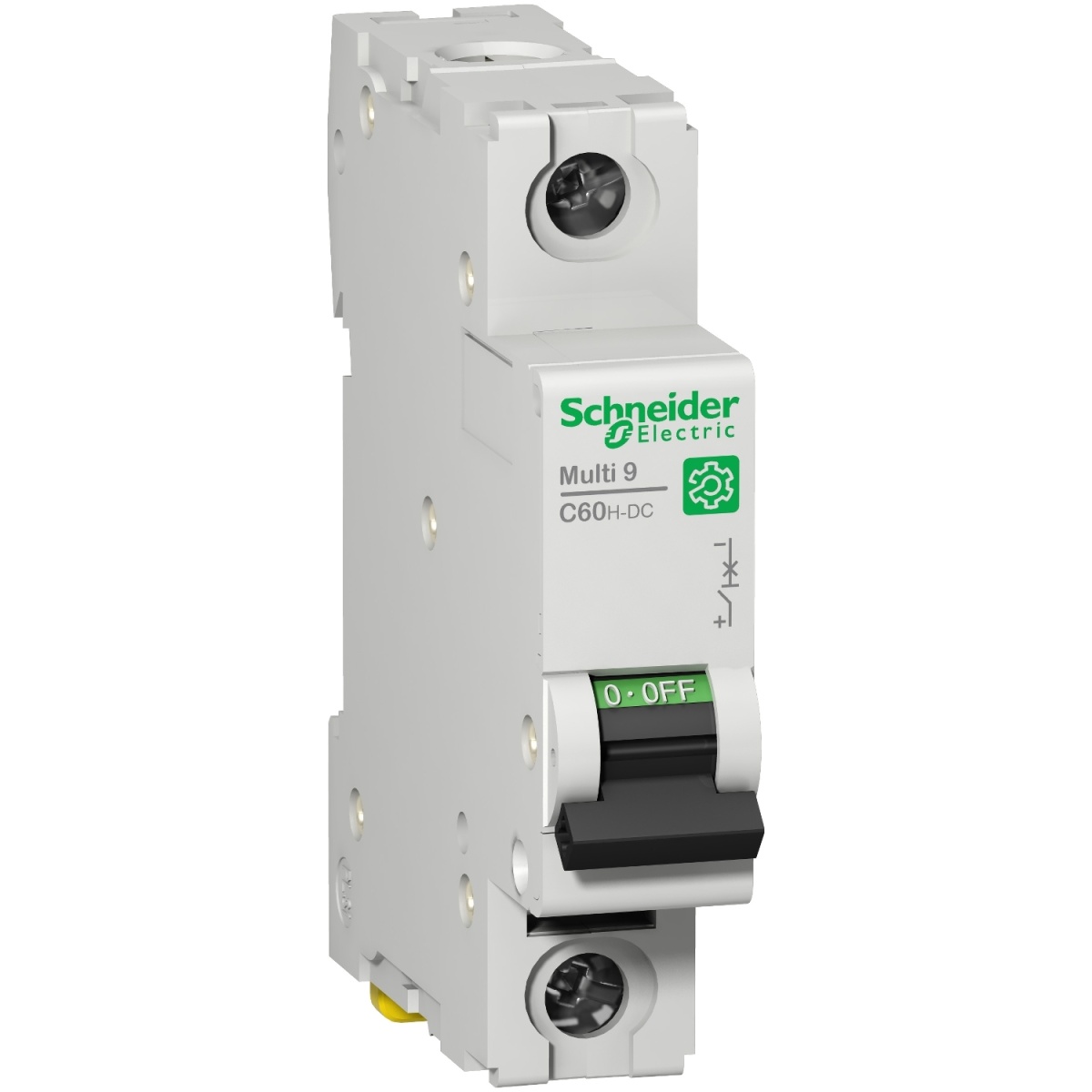

Multi 9 - C60H-DC - MCB - 1P - 2 A - Curva C - 500 V DC - 10 kA
Cutting and Protection Devices
Multi 9 - C60H-DC - MCB - 1P - 2 A - Curva C - 500 V DC - 10 kA
Nortécnica Ref:
EAN:
3606480741593
Description
Technical Information
Attributes
Voltage type
DC
Built-in depth
44
Rated current
2
EF000228
250
Frequency
-
-
Release characteristic
C
Rated insulation voltage Ui
500
Current limiting class
-
Overvoltage category
4
Pollution degree
3
Width in number of modular spacings
1
Explosion-proof
No
Power loss
2.6
Degree of protection IP
IP20
Number of protected poles
1
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
1
25
Connectable conductor cross section multi-wired
1
16
Ambient temperature during operating
-25
70
Flush-mounted installation
No
Additional equipment possible
Yes
Number of poles total
1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-
Rated impulse withstand voltage Uimp
6
Brands
SCHNEIDER
