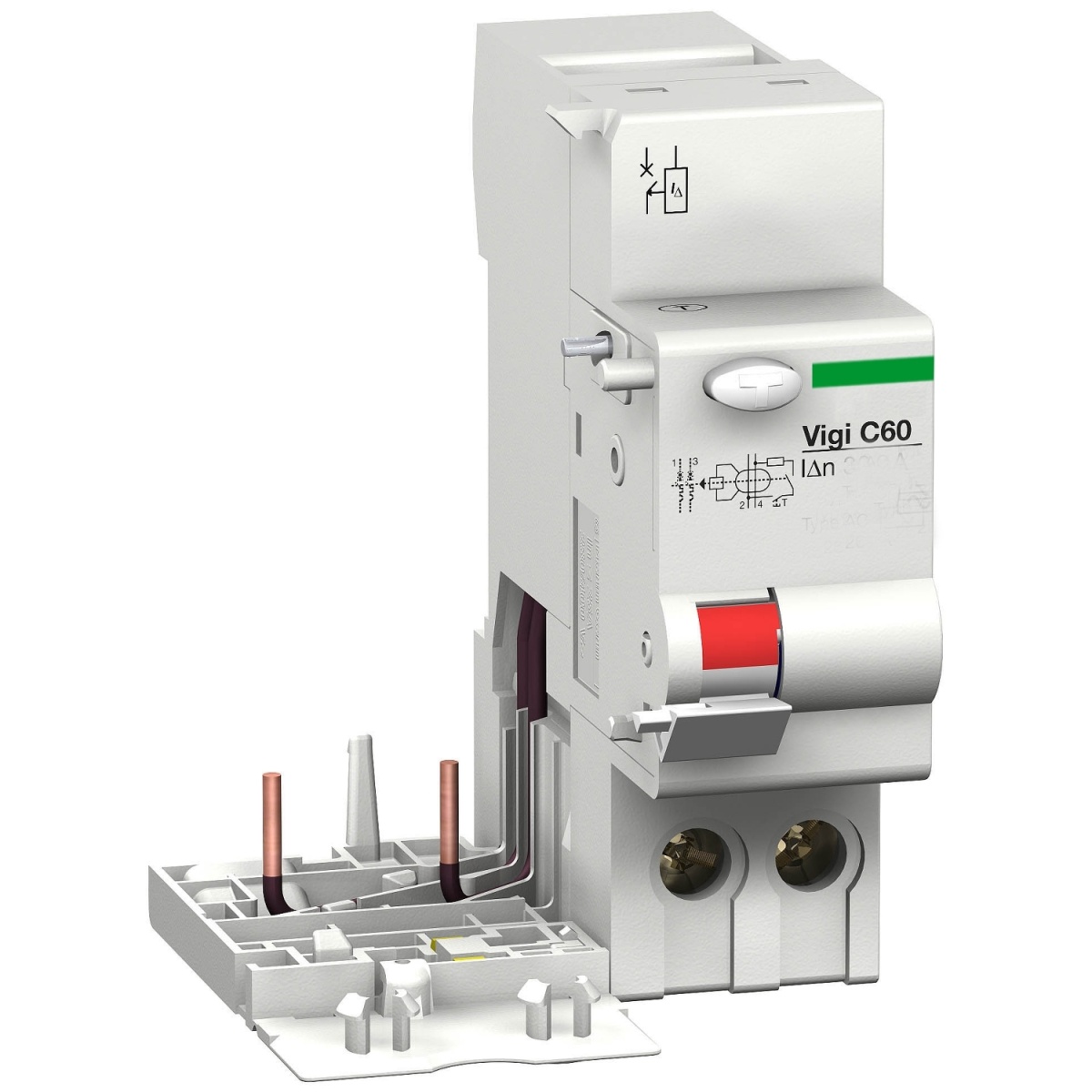

Multi9 - Vigi C60 - 2P - 63A - class AC - 230400 V - 300mA
Cutting and Protection Devices
Multi9 - Vigi C60 - 2P - 63A - class AC - 230400 V - 300mA
Nortécnica Ref:
EAN:
3606480684579
Description
Technical Information
Attributes
Corrente nominal
63
Rated insulation voltage Ui
500
Número de polos
2
Delay adjustable
No
Max. delay time
0
Leakage current type
AC
Surge current capacity
0.25
Pollution degree
3
Rated fault current
0.3
0.3
Nominal voltage
230
240
Potência dissipada
3.0
Frequency
50 Hz
Degree of protection IP
IP20
Connectable conductor cross section solid-core
1
35
Connectable conductor cross section multi-wired
1
25
With interlocking device
No
Ambient temperature during operating
5
60
Rated fault current adjustable
No
Anti-nuisance tripping version
No
Rated impulse withstand voltage Uimp
4
Brands
Schneider Electric Portugal
