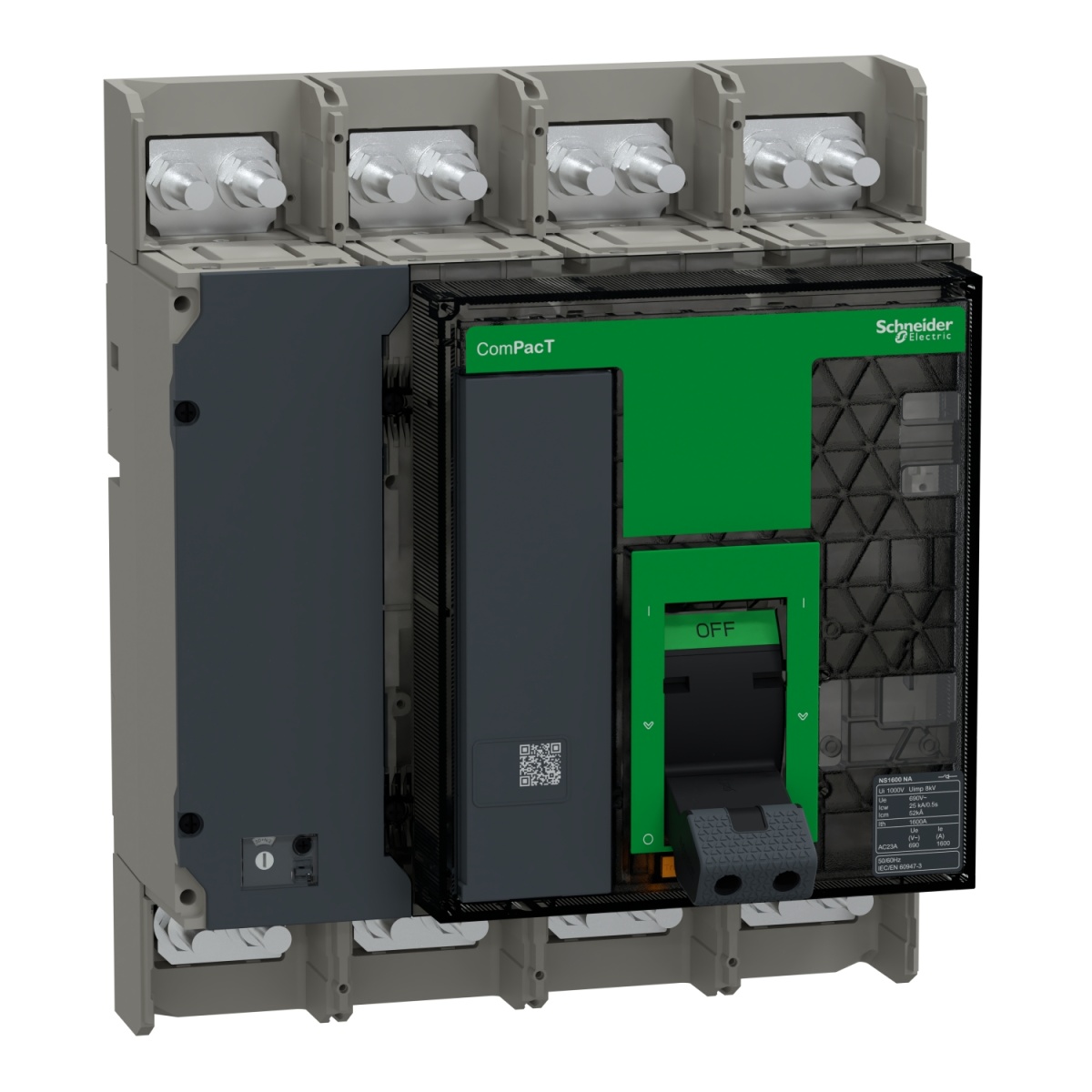

NS1600NA 4P 1600A Fixo Manual NA
Cutting and Protection Devices
NS1600NA 4P 1600A Fixo Manual NA
Nortécnica Ref:
51C160S4NAFM
EAN:
3606482101029
Description
Technical Information
Attributes
Width
327
Height
280
Depth
147
Housing colour
Grey
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
1600
Number of poles
4
Rated operating voltage
220
690
Corrente condicional nominal de curto-circuito Iq
-
Housing material
Plastic
Width in number of modular spacings
-
Degree of protection IP, front side
IP40
Número de contatos auxiliares como contato de comutação
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Wing knob
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
-
Corrente nominal suportável lcw atual
25
Colour control element
Black
EF007243
Yes
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
690
Motor drive optional
No
Voltage release optional
Yes
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
-
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
1600
Degree of protection NEMA
-
With pre-assembled cabling
No
Suitable for floor mounting
No
Brands
SCHNEIDER
