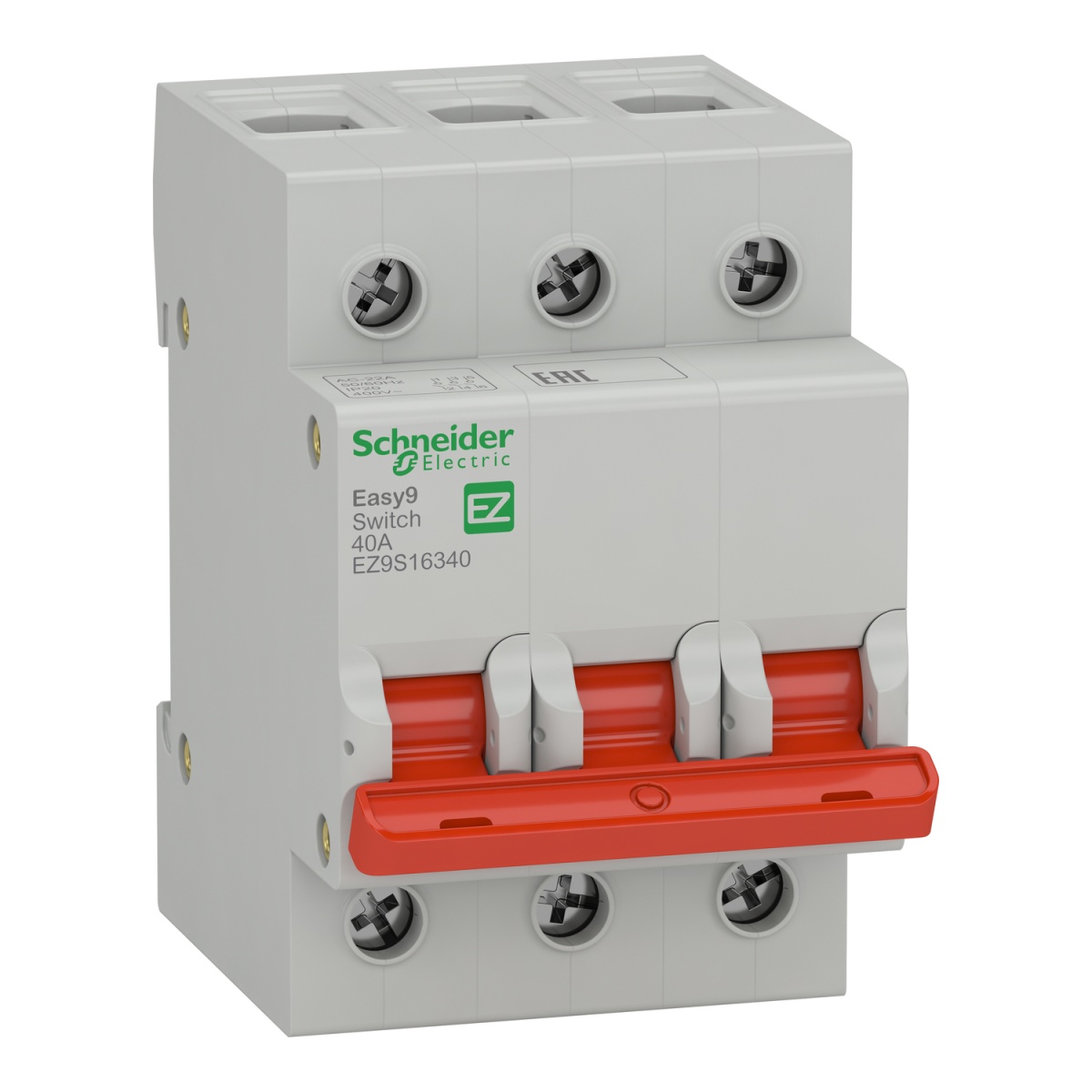

Rasy9, Interruptor seccionador - 3P - 40 A - 400 V
Cutting and Protection Devices
Rasy9, Interruptor seccionador - 3P - 40 A - 400 V
Nortécnica Ref:
EAN:
3606480589997
Description
Technical Information
Attributes
Width
54
Height
81
Depth
66.5
Housing colour
Grey
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
40
Number of poles
3
Rated operating voltage
400
400
Corrente condicional nominal de curto-circuito Iq
5
Housing material
Plastic
Width in number of modular spacings
3
Degree of protection IP, front side
IP20
Número de contatos auxiliares como contato de comutação
0
Number of switches
3
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Wing knob
Version as main switch
No
Version as safety switch
No
Version as maintenance-service switch
No
Rated operation power at AC-23, 400 V
-
Corrente nominal suportável lcw atual
0.48
Colour control element
Red
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
Yes
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
Yes
Max. rated operation voltage Ue AC
400
Motor drive optional
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
-
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
-
Degree of protection NEMA
-
With pre-assembled cabling
No
Suitable for floor mounting
No
Brands
SCHNEIDER
