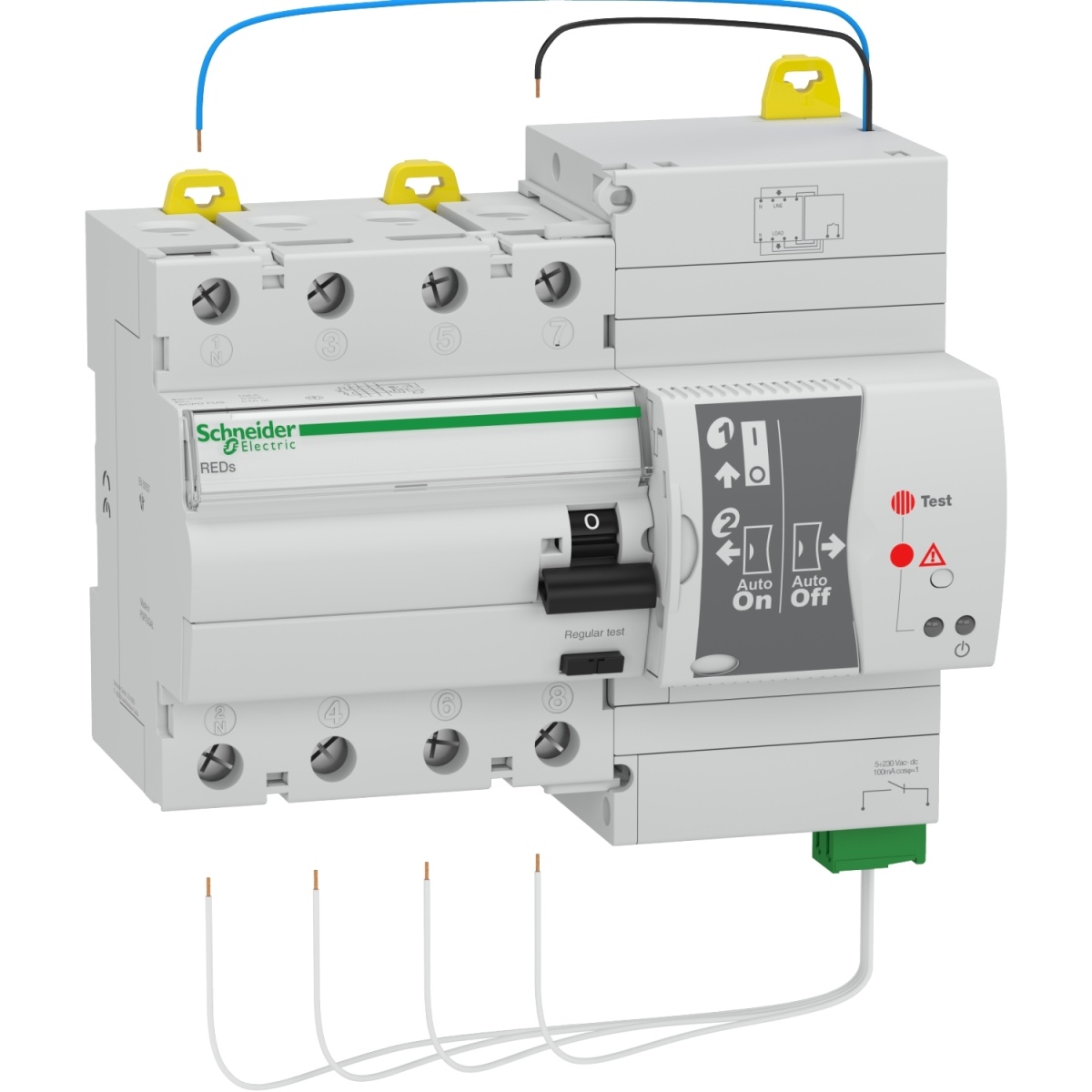

RCCB com religador - RED - 4 polos - 25 A - classe A - 30 mA
Cutting and Protection Devices
RCCB com religador - RED - 4 polos - 25 A - classe A - 30 mA
Nortécnica Ref:
51018264
EAN:
3303430182641
Description
Technical Information
Attributes
Mounting method
DIN rail
Colour
White
Voltage type
AC
Built-in depth
44
Rated current
25
Rated voltage
400
Rated insulation voltage Ui
500
Número de polos
4
Rated fault current
0.03
Leakage current type
A
Selective protection
No
Short-circuit breaking capacity Icw
-
Rated switching capacity
0.63
Surge current capacity
0.25
Pollution degree
2
Width in number of modular spacings
7
Short-time delayed tripping
No
RAL-number similar
9003
Explosion-proof
No
Potência dissipada
-
Frequency
50 Hz
Degree of protection IP
IP20
Connectable conductor cross section solid-core
1.5
2.5
Connectable conductor cross section multi-wired
1.5
2.5
With interlocking device
Yes
Ambient temperature during operating
-5
40
Rated switch current auxiliary device
-
Rated voltage auxiliary device
-
Control voltage type auxiliary equipment
-
Additional equipment integrated
Other
Additional equipment possible
Yes
Additional equipment attached at delivery
Monitoring unit with automatic reclosing
Device width
125
Device height
98
Device depth
79.5
Rated impulse withstand voltage Uimp
4
Construction size according to DIN 43880
7
Type of personal protection PRCD
-
Brands
Schneider Electric Portugal
