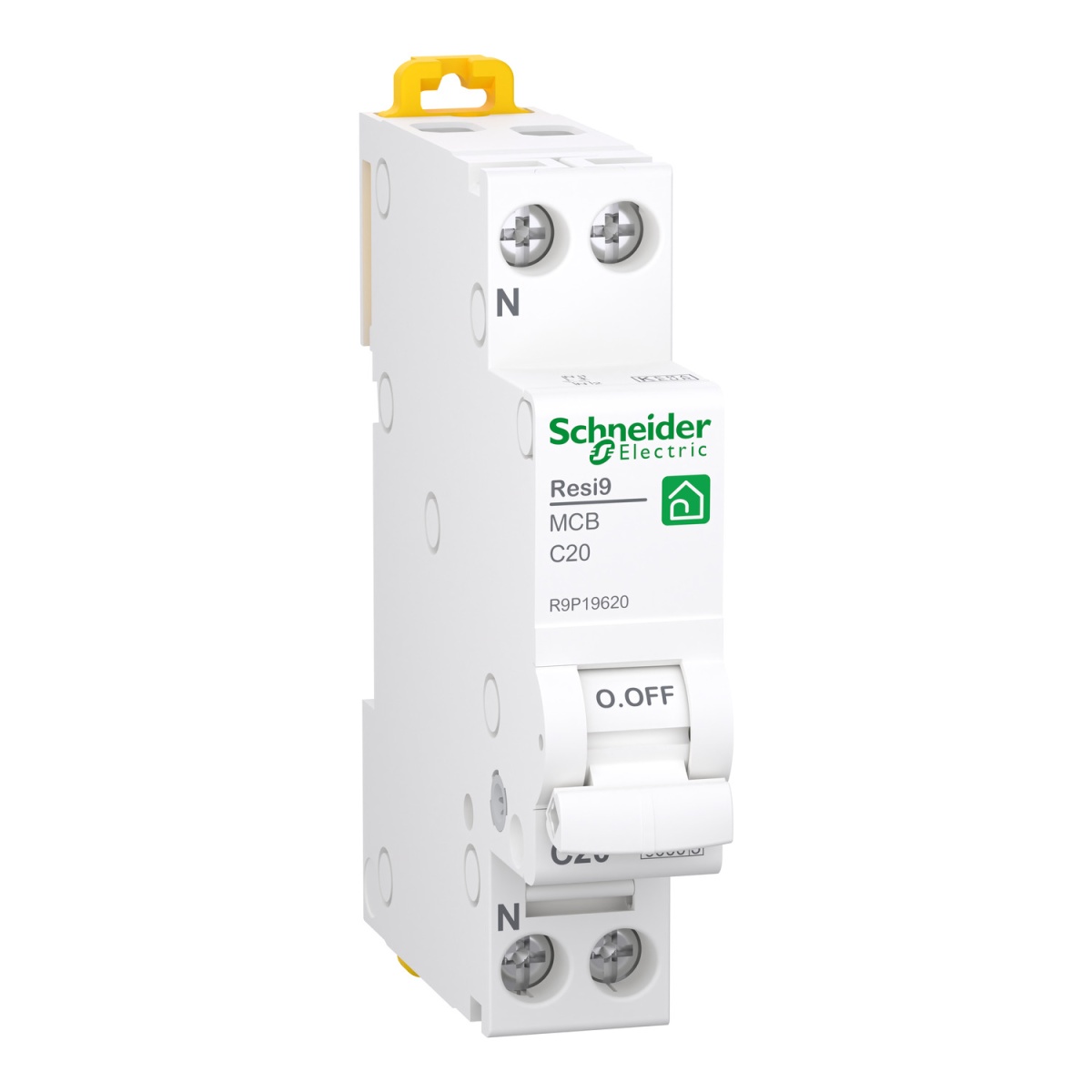

Resi9 - Disjuntor 1PN 20A C 230V 6000A
Cutting and Protection Devices
Resi9 - Disjuntor 1PN 20A C 230V 6000A
Nortécnica Ref:
51R9P19620
EAN:
3606481904980
Description
Technical Information
Attributes
Voltage type
AC
Built-in depth
44
Rated current
20
EF000228
230
Frequency
50
60
Release characteristic
C
Rated insulation voltage Ui
440
Current limiting class
3
Overvoltage category
3
Pollution degree
2
Width in number of modular spacings
1
Explosion-proof
No
Power loss
4.7
Degree of protection IP
IP20
Number of protected poles
1
Concurrently switching neutral conductor
Yes
Connectable conductor cross section solid-core
1
16
Connectable conductor cross section multi-wired
1
10
Ambient temperature during operating
-25
60
Flush-mounted installation
No
Additional equipment possible
No
Number of poles total
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-
Rated impulse withstand voltage Uimp
4
Brands
SCHNEIDER
