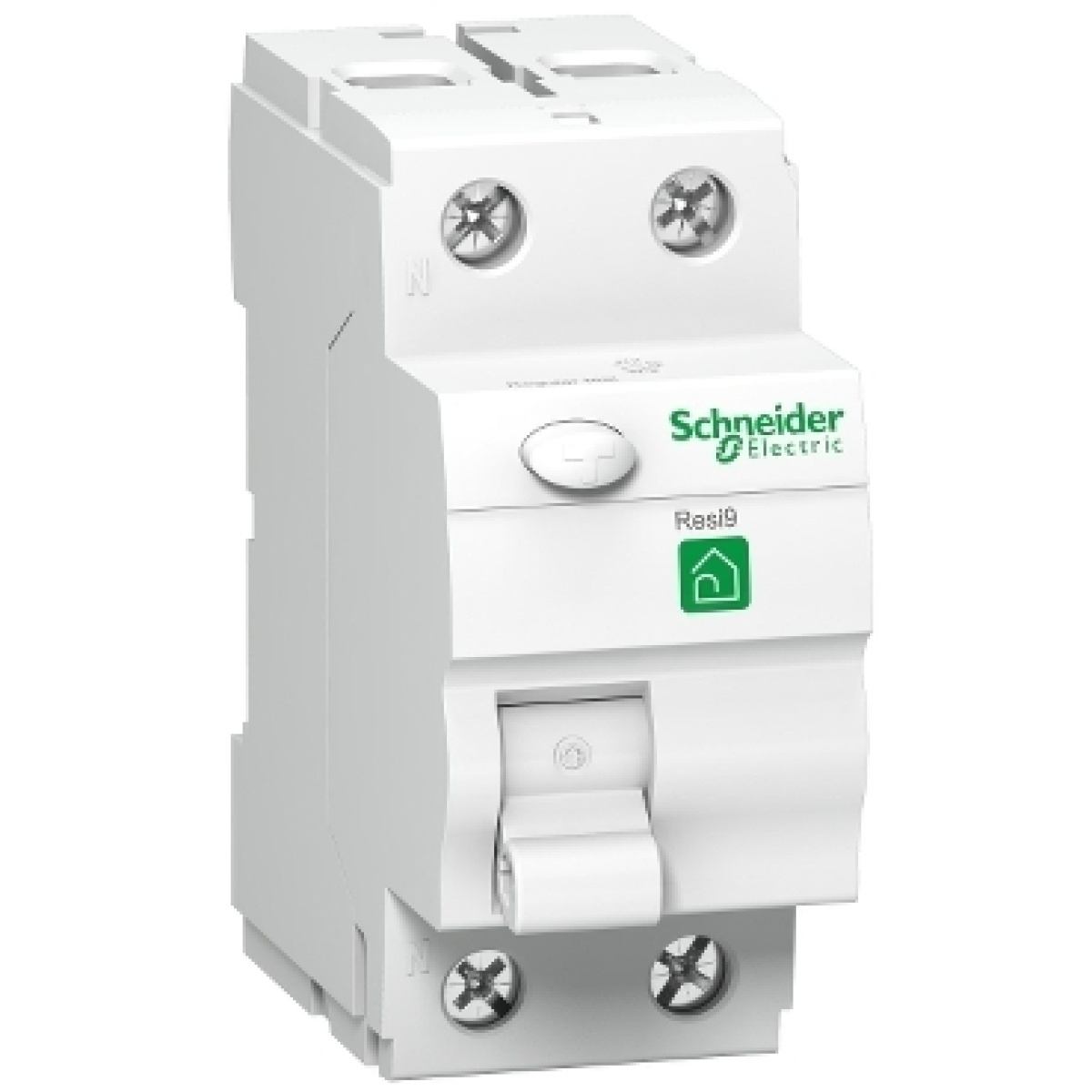

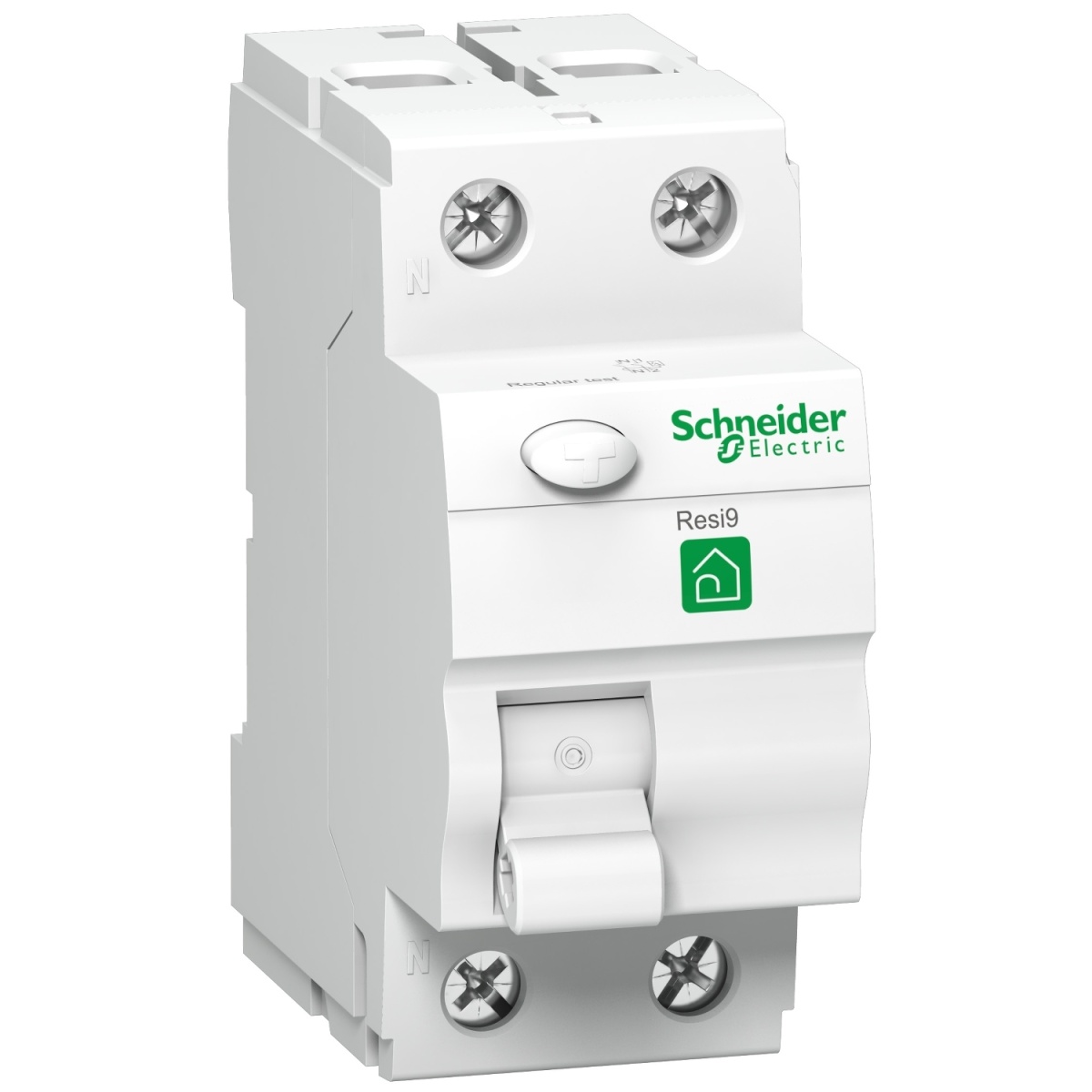

Resi9 - Interruptor diferencial - 2P - 25A - 300mA - Classe AC
Cutting and Protection Devices
Resi9 - Interruptor diferencial - 2P - 25A - 300mA - Classe AC
Nortécnica Ref:
51R9R14225
EAN:
3606480503290
Description
Technical Information
Attributes
Mounting method
DIN rail
Colour
White
Voltage type
AC
Built-in depth
44
Rated current
25
EF000228
230
Rated insulation voltage Ui
440
Number of poles
2
Rated fault current
0.3
Leakage current type
AC
Selective protection
No
Short-circuit breaking capacity Icw
-
Surge current capacity
0.25
Pollution degree
2
Width in number of modular spacings
4
Short-time delayed tripping
No
RAL-number similar
9003
Explosion-proof
No
Power loss
1.4
Frequency
50/60 Hz
Degree of protection IP
IP20
Connectable conductor cross section solid-core
1
25
Connectable conductor cross section multi-wired
1
16
With interlocking device
No
Ambient temperature during operating
-5
40
Additional equipment possible
Yes
Device width
38
Device height
84
Device depth
92
Rated impulse withstand voltage Uimp
4
Type of personal protection PRCD
-
Brands
SCHNEIDER
